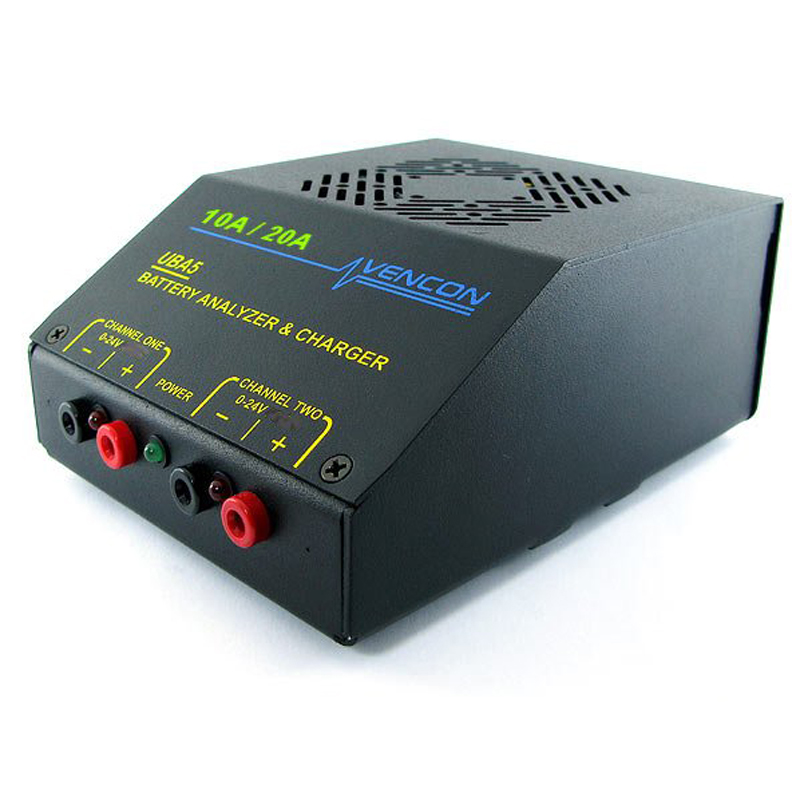

High Current UBA5 (12A/Channel Load)
Part No.: MPVC-High-Current-UBA5
This is the high current version of the UBA5 with a 8A, 10A or 12A per channel maximum load current.
Product Description
Description
This is the high current version of the UBA5 with a 12A per channel maximum load current. It is designed for testing of lithium ion single or two cell batteries. Both channels can be paralleled for 24A of load current!
Specifications
| Battery Type | All chemistries, primary and secondary cells |
|---|---|
| Battery Voltage | Single cell to 18.5V pack |
| Battery Capacity | 10mAh to over 250Ah |
| Charge Current | Up to 2A per channel |
| Load Current | Up to 12A per channel |
| Number of Channels | 2 |
| Interface | USB and Serial |
| Approvals | CE and FCC |

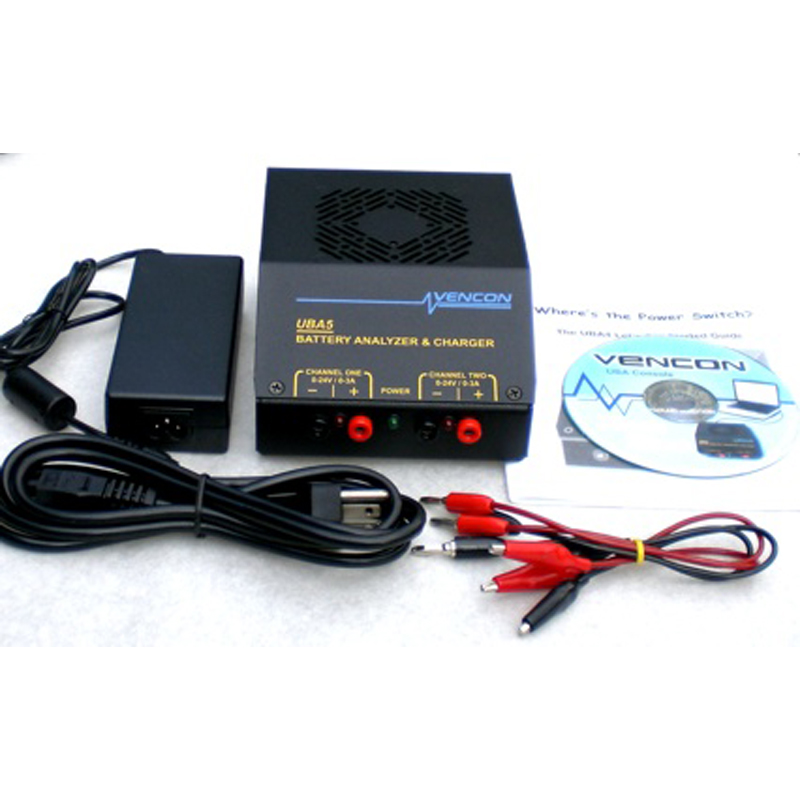

Accessories
- Temperature probes (for battery temperature monitoring and charge termination)
- Two opto isolated digital outputs under programmable control
- Technical reference manual (includes schematics and the communication protocol)
