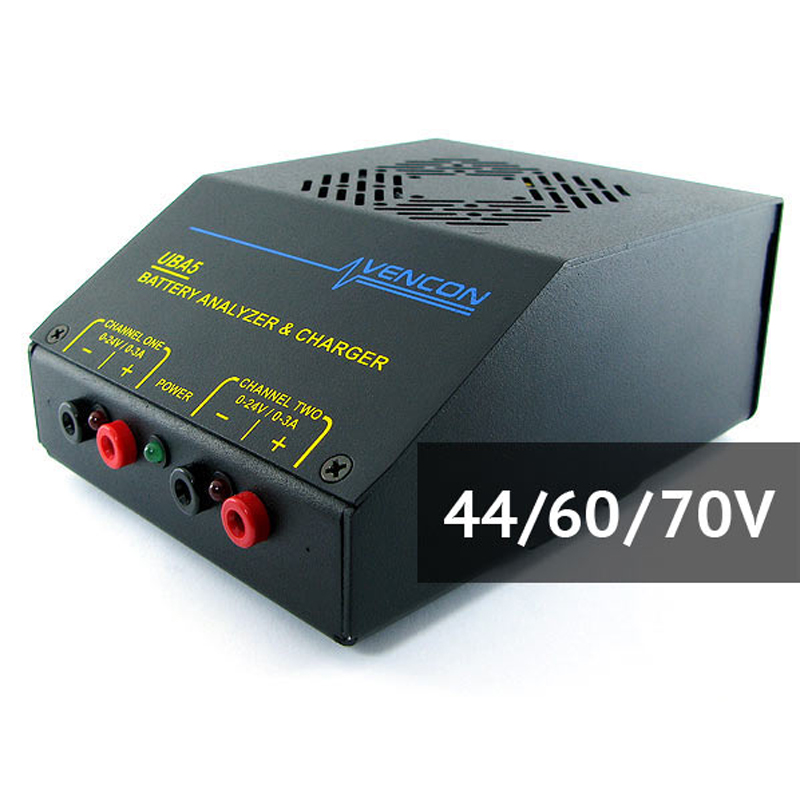

High Voltage UBA5
Part No.: MPVC-High-Voltage-UBA5
It can analyze batteries that are higher in voltage.
Product Description
Description
UBA5-44V
Analyze batteries that are higher in voltage than the standard UBA5 as shown below:
| Chemlstry | Maximum Battery Rated Voltage | Maximum Number of cells | |
|---|---|---|---|
| Lithium lon or Polymer | 37V | 10 | |
| Lead Acid or Gel Cell | 36V | 18 | |
| NiCd or NiMH | 30 | 25 | |
UBA5-60V
Maximum input of 60V, can analyze high voltage battery packs, as follows:
| Chemlstry | Maximum Battery Rated Voltage | Maximum Number of cells | |
|---|---|---|---|
| Lithium lon or Polymer | 51.8V | 14 | |
| Lead Acid or Gel Cell | 48V | 24 | |
| NiCd or NiMH | 43.2 | 36 | |
UBA5-70V
We also have a 70V UBA5 for 16S li-poly batteries:
| Chemlstry | Maximum Battery Rated Voltage | Maximum Number of cells | |
|---|---|---|---|
| Lithium lon or Polymer | 59.2V | 16 | |
| Lead Acid or Gel Cell | 56V | 28 | |
| NiCd or NiMH | 49.2 | 41 | |
Specification
| Battery Type | All chemistries, primary and secondary cells | ||
|---|---|---|---|
| Battery Voltage | Single cell 59V pack | ||
| Battery Capacity | 10mAh to over 100Ah | ||
| Charge Current | Up to 2A per channel | ||
| Load Current | 2.4A or 3A per channel depending on model | ||
| Load Power | 45W per channel | ||
| Number of Channels | 2 | ||
| Interface | USB and Serial | ||
| Approvals | CE and FCC | ||
Accessories
- Temperature probes (for battery temperature monitoring and charge termination).
- Two opto isolated digital outputs under programmable control.
- Technical reference manual (includes schematics and the communication protocol)
