Description

The SAE J1939 network protocol describes communication on a CAN bus in utility vehicles for the transmission of diagnostics data and control information. It contains a complete network definition using 29-bit CAN IDs (CAN 2.0B Extended Frame).

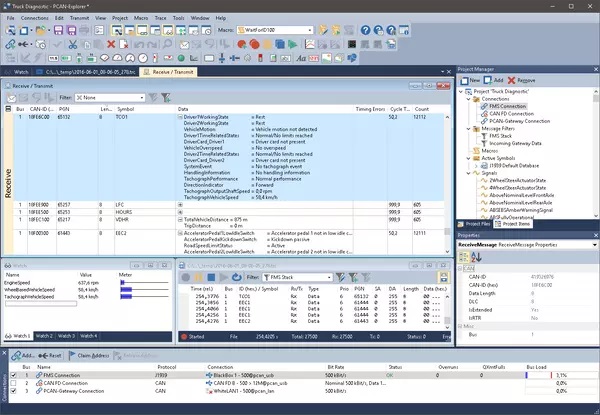

The J1939 Add-in for PCAN-Explorer supports all definitions established by the standard’s parameter groups and provides a simple means of accessing the parameters. A database with all the definitions and parameters contained is also supplied.

Note: The database may only be used with the PCAN-Explorer and J1939 Add-in.



Features

• Support for all functions of the SAE J1939 network protocol

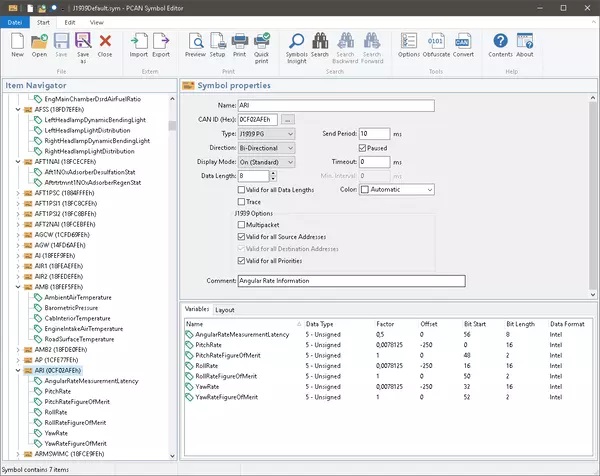

• SAE J1939 database with all the definitions and parameters (revision April 2019)
• CAN messages can be sent in broadcast form or targeted to individual control units (ECUs)
• Addressing of up to 254 ECUs
• Supports multi-packet messages

System Requirements

• PCAN-Explorer 6
• Windows® 10, 8.1, 7 (32/64-bit)
• At least 2 GB RAM and 1.5 GHz CPU
• Free USB port for installation stick and copy protection dongle

Scope of Supply

• Installations files for J1939 Add-in
• Single computer license or portable license with USB copy protection dongle
• Documentation in HTML help format
