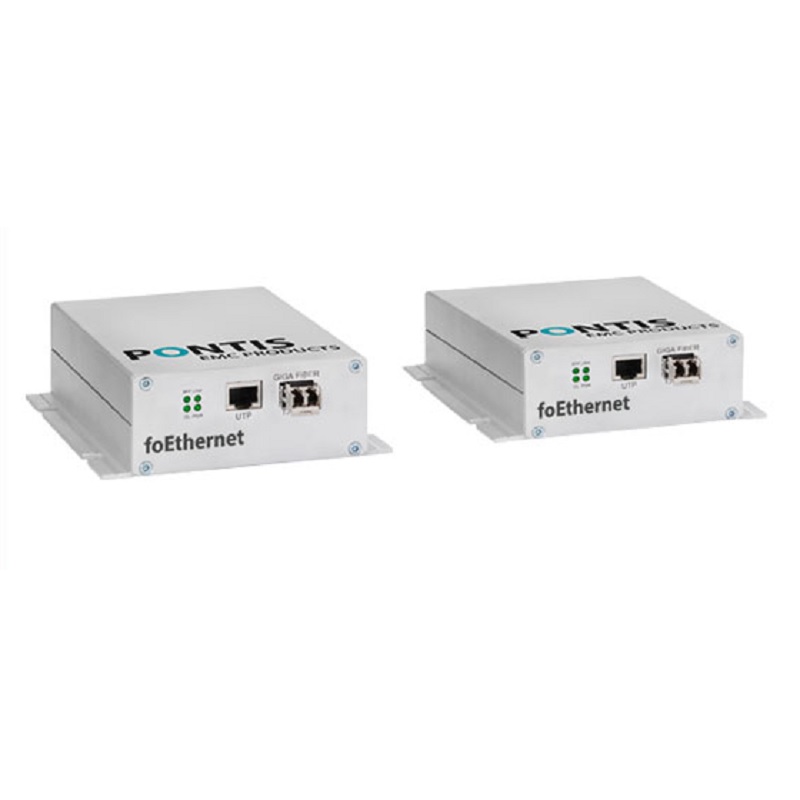

FibreOptic-foEthernet
Part No.: MPPT-FibreOptic-foEthernet
Autodetect: 10Base-TX, 100Base-TX, 1000Base-T
Product Description
foEthernet
- Autodetect: 10Base-TX, 100Base-TX, 1000Base-T
- >100 m due to fibre optic cables
- 4 x port version available on request
- EMC compliant to CISPR 25, Class5
foEthernet
In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.
For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.
A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.
In most cases both units are shielded.
Features
- RF-Immunity: Antenna radiated 200 V/m, 200 MHz – 18GHz, ISO11452-2, CW, AM, PM Stripline 200 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
- Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz

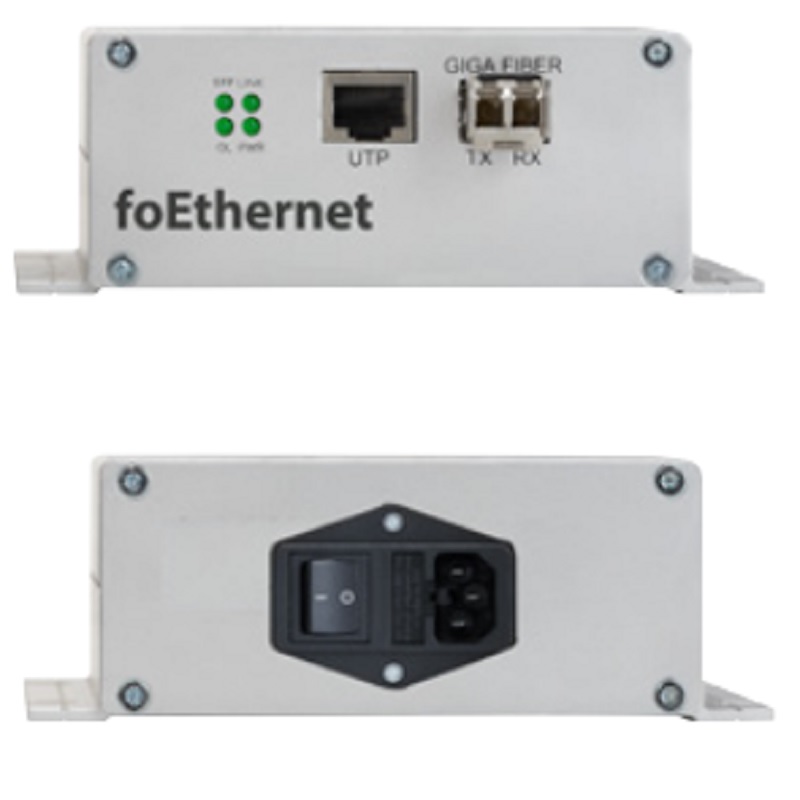

- Battery (approx. 8 hours operation) or mains powered
- Compact metal housing
- No galvanic connection between test equipment and measurement instruments
- ACK and network speed indication

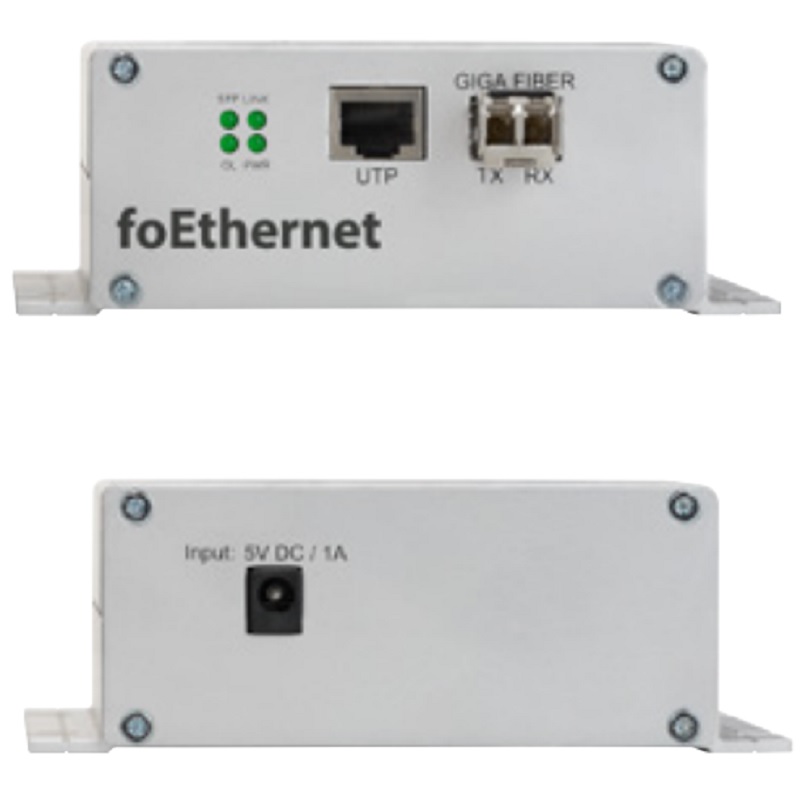

- Battery version: fast charge, long operation, also for 1 GBit/s

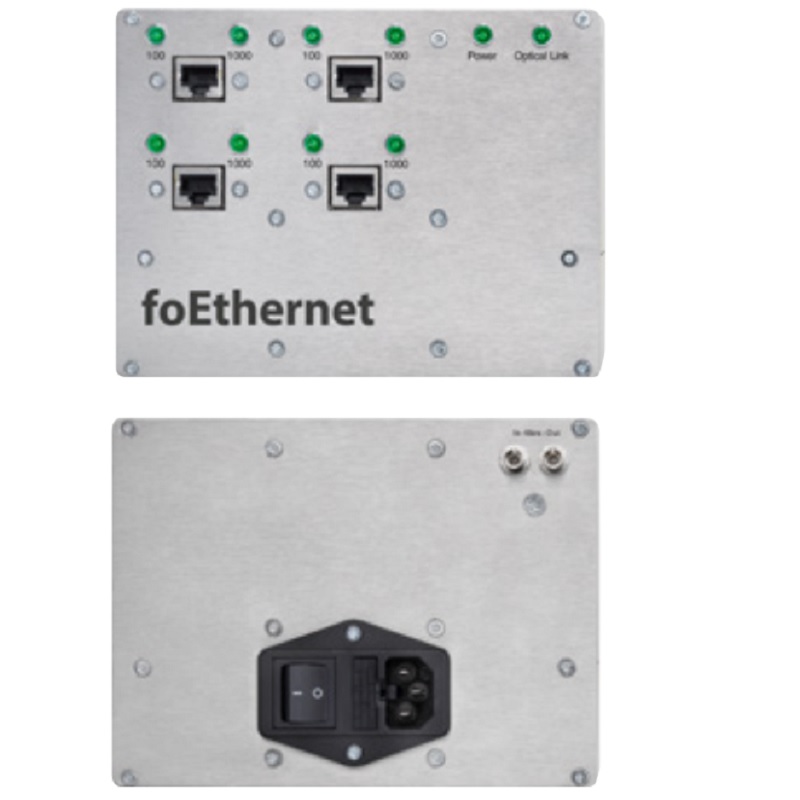

- On Request: a special version with 4 x Ethernet ports is available
Accessories
-
Standard
- One set consists of two shielded converter units
- All converters are shipped with the appropriate power supply or battery and charger.
- Optional
- Fibre optic cables: variable lengths ST/FSMAconnector or ST/ST-connector
- FO-Patches (Feed Through wall Patches)
Technical Specifications
| Data Signaling Rate |
100 MBit/s: 100BASE-TX, IEEE 802.3 Clause 25(IEEE 802.3u) 1 GBit/s: 1000BASE-T, IEEE 802.3 Clause 40 (IEEE 802.3ab both units must run at the same speed! |
||
|---|---|---|---|
| Data Transfer Direction | bidirectional | ||
| Connector |
1 x Ethernet port RJ45
4 x Ethernet ports version on request available
|
||
| Electrical Cable Type | shielded twisted pair cable: CAT.6, 100 Ohm,.RJ45 - RJ45 | ||
| Fibre Optic Connection | FST | ||
| Fibre Optic Cables | multimode duplex fibre, 50/125 µm | ||
| Maximum Fibre Length | >100 m due to fibre optic cables | ||
| Wavelength | 1300 nm | ||
| Charging Input |
recharchable battery (12VDC 2A wall power): fast charge, 1h charging for appr. 8 hrs operation (1 GBit/s: 3 hrs for 15 hrs), or mains driven 230VAC, 50/60Hz |
||
| Operating Temperature | 0 °C / +40 °C | ||
| Operating Humidity | 20 to 85 % RH | ||
| Weight Per Converter | 0.7kg | ||
| Housing | passivated aluminium, stainless steel, 2 mm | ||
| Dimensions Per Converter | Dimensions per Converter: | ||
Prices and specifications are subject to change without notice!
