PLIN-LWL

Part No.: MPPK-IPEH-004049
It can be used to replace a stretch of LIN network with a fiber-optic line at any point.

*Microport is the exclusive agent of PEAK SYSTEM in Taiwan.

Product Description

!!! Low stock! Large quantities expected to be available in approximately 2 weeks. !!!


Description

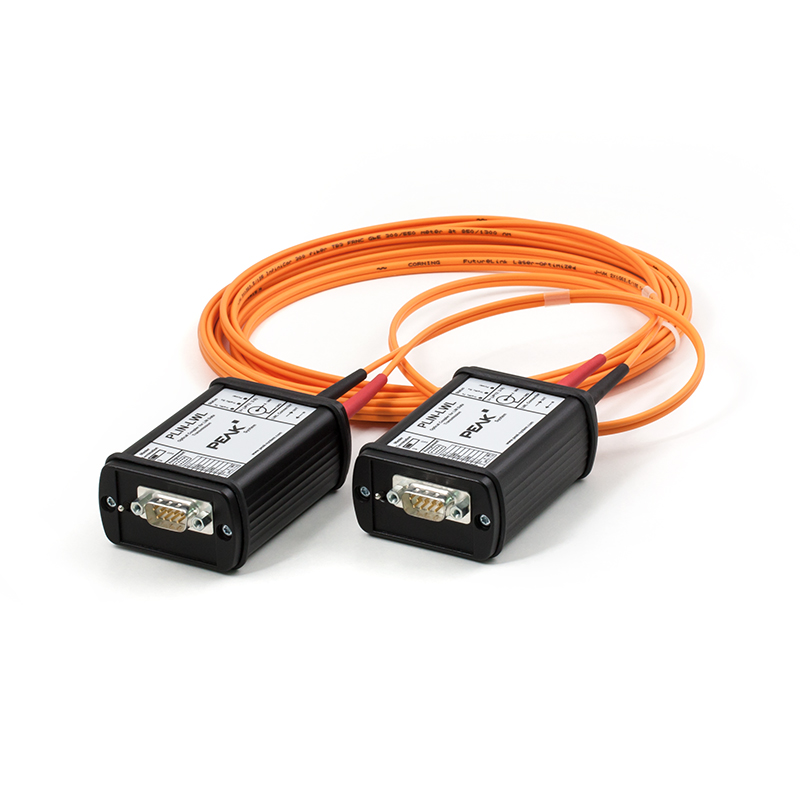

For use in explosion-proof areas or for EMC measurements, the PLIN-LWL can be used to replace a stretch of LIN network with a fiber-optic line at any point. The modules are supplied with power externally.



Specifications

  • Bit rates from 2.4 kbit/s up to 20 kbit/s
  • TJA1028 LIN transceiver
  • LED display for power supply and transceiver status
  • Switchable master termination
  • LIN bus connection via D-Sub, 9-pin
  • The fiber-optic line consists of a 62.5/125 µm fibre-optic duplex line with ST connectors
  • Supply voltage 8 to 30 V
  • Supply via D-Sub 9-pin or DC connector (jumper)
  • Aluminum casing
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Pin Assignment D-Sub

Pin-Assignment D Sub



PIN PIN Assigmnet
1 Not connected
2 Not connected
3 GND
4 LIN
5 Not connected
6 GND
7 Not connected
8 Not connected
9 V+



Product Includes...

  1. 2 LIN to optical waveguide converters including power supply units. Delivered in shockproof plastic box
  2. A choice of 5 or 10 m FO cable, 62.5/125 µm duplex line ST connector. Other lengths available on request
  3. Manual in PDF format
