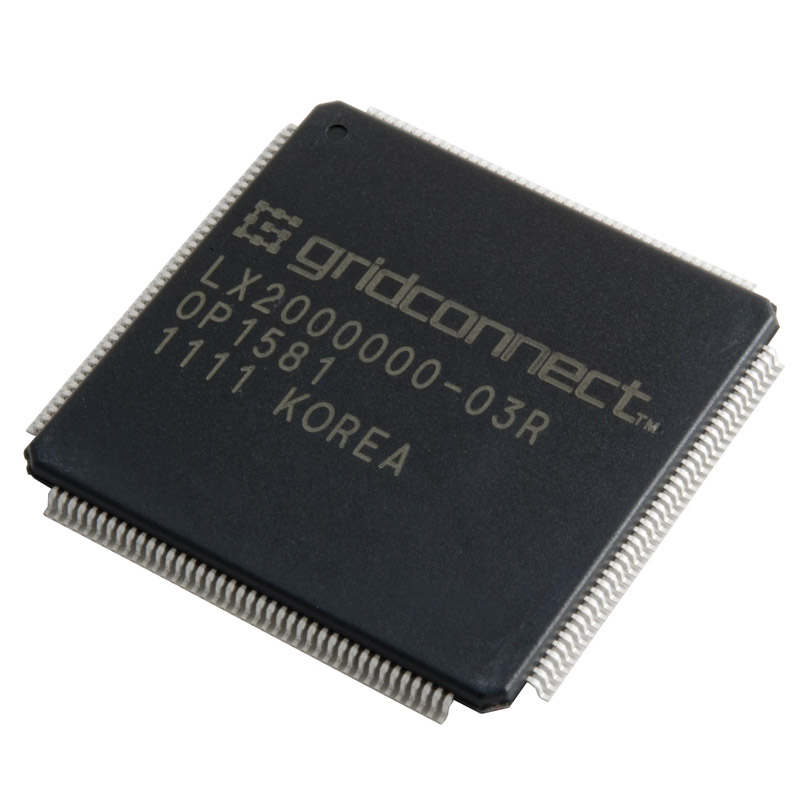

LX-002

Part No.: MPGC-LX-002
The LX is a powerful x186 System-on-a-chip (SOC) that has many features which allow it to be used in embedded communication applications.

Product Description

Description

The LX-002 is the same as the LX-001, except that it has an on-chip 12M PROFIBUS controller. The LX is a powerful x186 System-on-a-chip (SOC) that has many features which allow it to be used in embedded communication applications. The extended x186 architecture allows for up to 16M bytes of memory and executes most instructions in one clock cycle - 12.5MIPS.



Applications

The LX is perfect for embedded applications that require 10/100 Ethernet and 12M Profibus and other communication channels like CAN, SPI, or RS232 or RS422/485. With the on-chip 256K bytes of RAM memory applications can be loaded from SPI serial Flash or external Flash/EPROM into the on-chip memory and execute with 0 wait state performance and no external memory devices. External memory can be added to support additional RAM or Flash for a total of up to 16M bytes.



Development

Use of all the x86 compilers and tools and code base allows the users to use existing code, use binaries provided, or develop their own software using the Borland or Paradigm development environments.


Specifications


Channels
  • 2, 230K baud High performance RS232/422/485 Serial Channels
  • 2, 1M baud CAN channels
Controllers
  • 10/100M Ethernet controller
  • Siemens Profibus ASPC2 12M controller
  • SPI controller
  • Interrupt controller
Core 2.5V core
CPU x186 compatible 48Mhz 16 bit processor
Dimensions 24 x 24 mm
DMA 4
IO Type 3.3 V I/O
Memory
  • 256K bytes SRAM on-chip
  • 16M bytes of external memory available
  • 8K dual port memory
MPN LX2000000-04R, LX2000000-03R
PINS 160 pin LPQFP
Pitch 0.5 mm
Temperature Range Operating: -40°C to +85°C
Timers 3
Watchdog Timer Yes
