F3846
Part No.: MPFF-IoT-IR-F3846
This is a Provide Industrial Cellular Router WIFI 3G 4G VPN with sim slot
Product Description

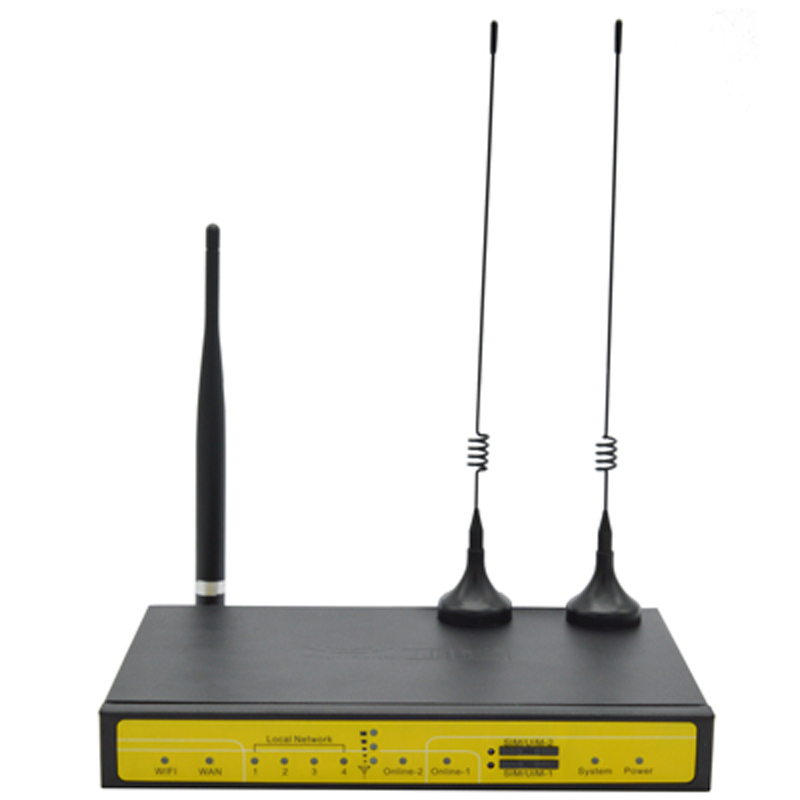

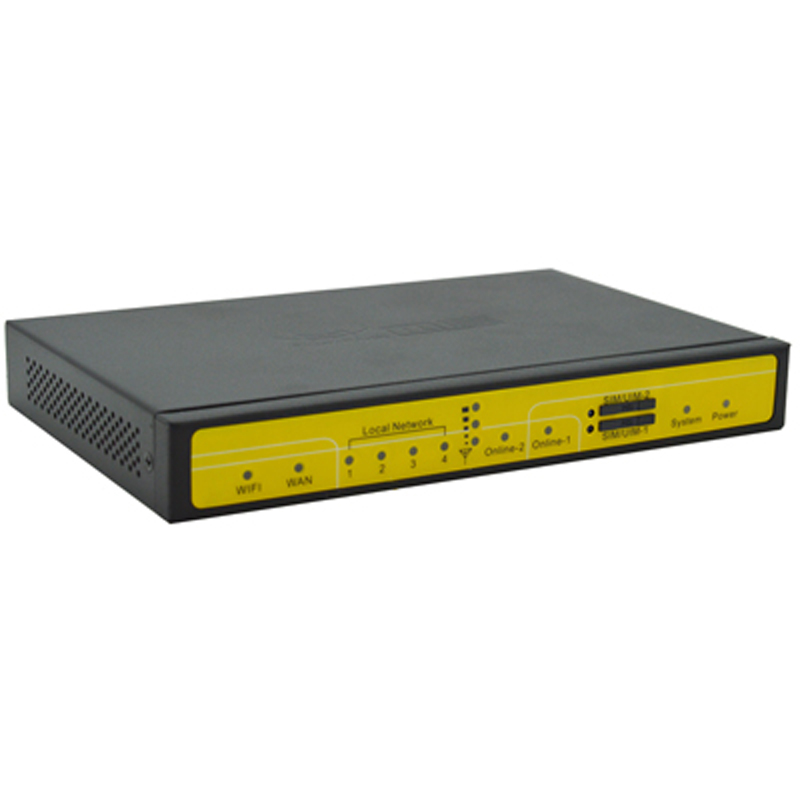

F3846 LTE/WCDMA Dual-SIM WIFI Router
- LTE/WCDMA
- Samart Link Switch Backup
- Powerful WIFI
- Provide More Security Deployment Scenarios
- Reliable Networking And Communication
- Support APN/VPDN
- Convenient configuration and maintenance interface
- Support Local and Remote Firmware Upgrade
Features
Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.
Provide More Security Deployment Scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible
Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to unattended systems
Reference
Cellular Specification
| Item | Content |
|---|---|
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz,
800/850/1900/2100MHz(optional)
EDGE/GPRS/GSM 850/900/1800/1900MHz
GPRS CLASS 10
GPRS CLASS 12
|
| Bandwidth |
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps
|
| TX Power | <23dBm |
|
RX Sensitivity |
<-97dBm |
WIFI Specification
| Item | Content |
|---|---|
| Standard | IEEE802.11b/g/n |
|
Bandwidth
|
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
|
| Security |
WEP, WPA, WPA2, etc
WPS (optional)
|
| TX Power |
20dBm(11n),24dBm(11g),26dBm(11b)
|
|
RX Sensitivity |
<-72dBm@54Mpbs |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 16MB(Extendable to 64MB) |
| DDR2 | 128MB |

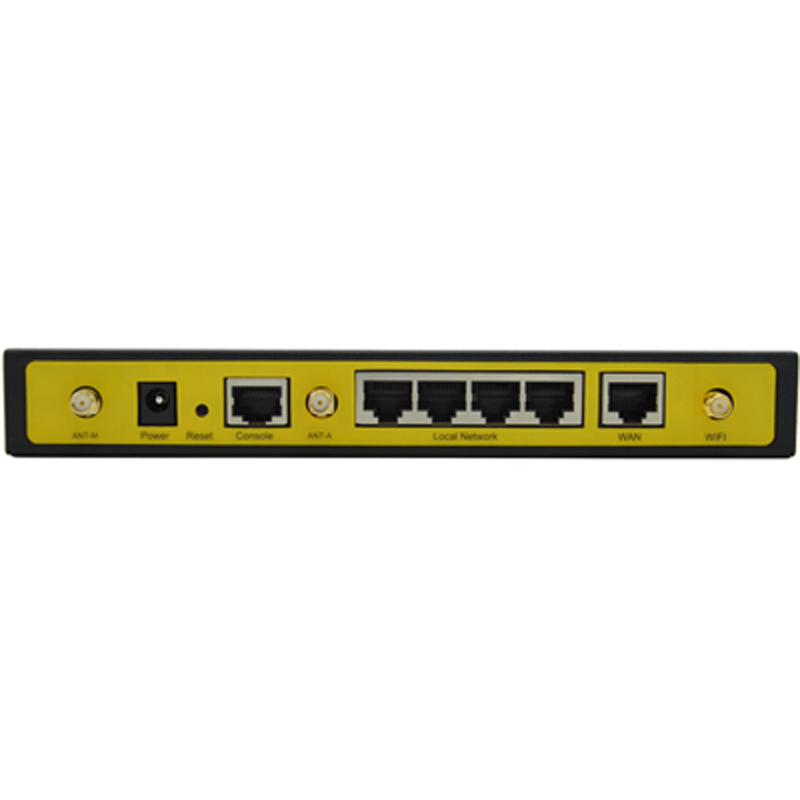

Interface Type
| Item | Content |
|---|---|
| WAN |
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
|

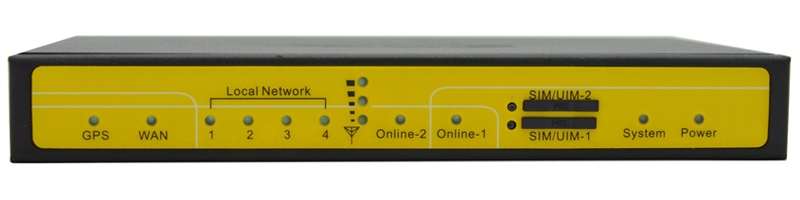

| Indicator |
"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "GPS", "Signal Strength" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting
protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting
protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
  |
|
Power Supply
| Item | Content |
|---|---|
|
Standard Power |
DC 12V/1.5A |
|
Power Range |
DC 5~36V |
Consumption
|
Working Condition |
Consumption |
|---|---|
| Standby | 290~340mA@12VDC |
| Communication |
335~572mA@12VDC
|
|
Schedule Shutdown |
2.57~4.2mA@12DVC |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 207x135x28 mm |
| Weight | 790g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-35~+75ºC(-31~+167℉)
|
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% (unfreezing) |
