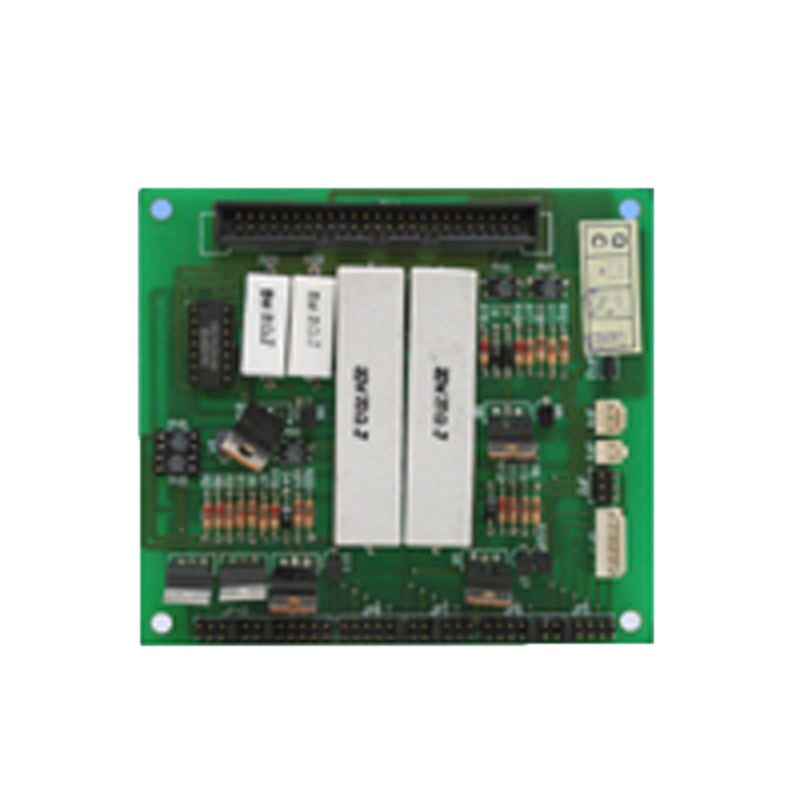

Product Description
Hardware
- 50-Pin PCI Connector
- DC-Servo motor
- Stepping motor
- Jumper for signal adjustment
Research Guide: (optional)
10 Application Programs included
| Experiment Name | File Name | Source | |
|---|---|---|---|
| 1 |
Driving StpM to rotate on step
|
*Use I/O command
|
Experiment
Guide I
|
| 2 |
Driving StpM to be forward rotation
|
ST1-1.ASM | |
| 3 |
Driving StpM to be reverse rotation
|
ST2-1.ASM | |
| 4 |
Driving StpM to be Fwrd/Rvrs rotation
|
ST3-1.ASM | |
| 5 |
The colligate control of StpM
|
ST4-1.ASM | |
| 6 |
Driving SvrM to be forward rotation
|
MO1-1.ASM | |
| 7 |
Driving SvrM to be reverse rotation
|
MO2-1.ASM | |
| 8 |
Driving SvrM to be rotation
|
MO3-1.ASM | |
| 9 |
Driving SvrM to be 1 cycle reverse rotation
|
MO4-1.ASM | |
| 10 |
The colligate control of svrM
|
MO5-1.ASM |
