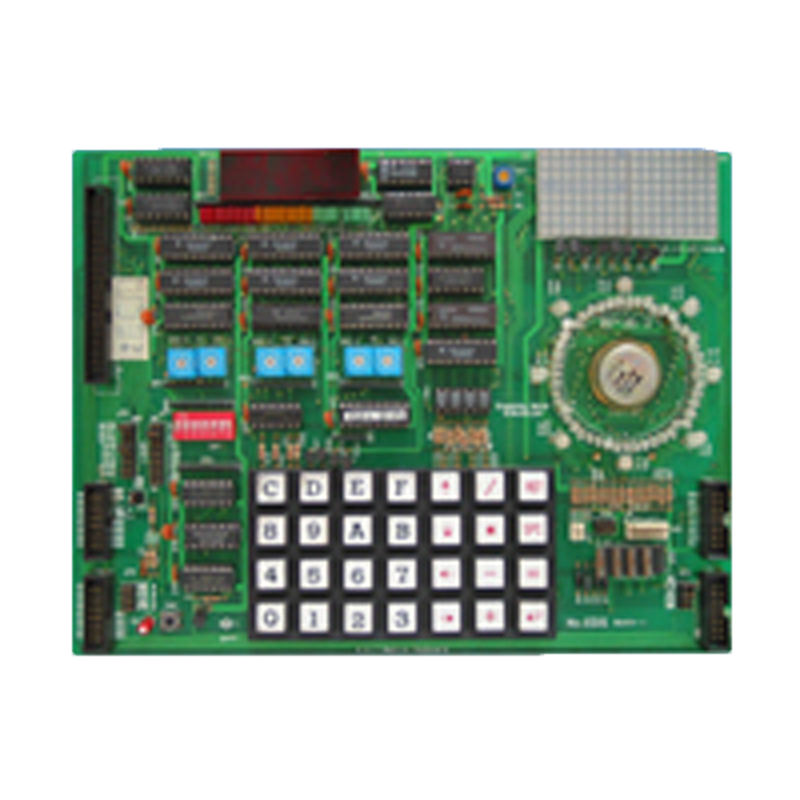

EDS-8809-1 Multi-Function I/O
Part No.: MP-Micro-8088-EDS-8809-1
With 16-Pin DIP Flatcable and stepper motor
Product Description
Hardware:
- 50-Pin PCI Connector
- Port A，B，C LEDs
- Port A，B，C 7-Seg LEDs
- Port A，B，C Thumb-wheel switch control
- 8x8 LEDs Module
- Stepping Motor Emulator
- Stepping Motor Connector
- Stepping Motor
- 16-Pin DIP flatcable
- Jumpers for signal Adjustment
Research Guide: (optional)
24 Application Programs included
| Experiment Name | File Name | Experiment Name | File Name | ||
| 1 | Racing light | LED1.ASM | 13 |
8255 mode 2 handshak
under the polling mode |
MODE2.HS.ASM |
| 2 |
The simulation of sign bulb
|
LED2.ASM | 14 |
Data handshake under
the mode of interrupt control
|
M1-INT.ASM |
| 3 |
Reading the value from
thumbwheel switch |
SW.ASM | 15 |
The interuppt of econtrolling
by external |
INTR.ASM |
| 4 | Digital clock ( I ) | CLOCK1.ASM | 16 | Digital clock (II) | CLOCK2.ASM |
| 5 |
The experiment of dot matrix
LEDs module (static display) |
S-LED8.ASM | 17 | Digital clock (III) | CLOCK3.ASM |
| 6 |
The experiment of dot matrix
LEDs module (dynamic display) |
D-LED8.ASM | 18 | Digital stop watch | CLOCK4.ASM |
| 7 | Speaker control I | SPK1.ASM | 19 |
Stepping motor control (I)
|
STMO-F.ASM |
| 8 | Speaker control II | SPK2.ASM | 20 |
Stepping motor control (II)
|
STMP-R.ASM |
| 9 |
1The scanning control
of 4*7 matrix keyboard (I)
|
KBD1.ASM | 21 |
Stepping motor control (III)
|
STMO-INT.ASM |
| 10 |
The scanning control of
4*7 matrix keyboard (II) |
KBD2.ASM | 22 |
Stepping motor simulation (I)
|
STMO-1P.ASM |
| 11 |
The simulation of electric piano
|
PLAY.ASM | 23 |
Stepping motor simulation (II)
|
STMO-2P.ASM |
| 12 |
8255 mode 1 handshak
under the polling mode
|
MODE1.HS.ASM | 24 |
Stepping motor simulation (III)
|
STMO-12P.ASM |
