J1939 & NMEA2000 REPEATER/ISOLATOR

The ranges includes various products for solving all the needs of a CAN line like extension of the line, increase of nodes number, isolation of J1939 and NMEA2000 branches, protection from spikes noise and electrostatic charger or simply to change the communication baudrate.

The HD67182 and HD67182M devices are repeaters/isolators for J1939 and NMEA2000 buses.

The HD67182R, HD67182-A3 and HD67181-A4 devices are repeaters/isolators with a 3kV isolation between the two J1939 and NMEA2000 bus.

The HD67182F and the HD67182FSX are generic J1939 and NMEA2000 repeaters that allows to extend a J1939 and NMEA2000 network through Multi-Modal optic fiber.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67404 – J1939 and NMEA2000 Repeater, STRONG

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between CAN/CAN - CAN/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series J1939 Repeater

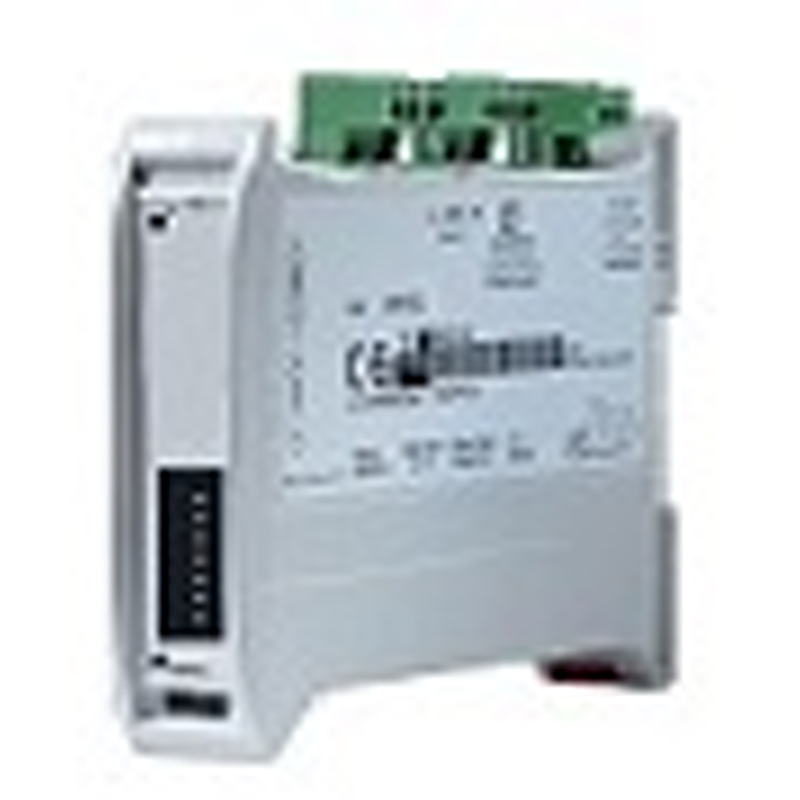

HD67182

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: A, Terminal Blocks Connectors )



Ports	2x CAN
CAN2.0 Connector	Terminal block
DATA Rates	Up to 1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182M

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: Small Size, Terminal Blocks Connetors )



Ports	2x CAN
CAN2.0 Connector	Terminal block
DATA Rates	Up to 1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	53x24x89 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182R

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV )



Ports	2x CAN
CAN2.0 Connector	Terminal block
DATA Rates	Up to 1Mbps
Power Supply	8..19V AC ; 8..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	86x23x96 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182-A3

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV )



Ports	2x CAN
CAN2.0 Connector	M12 connector
DATA Rates	Up to 1Mbps
Power Supply	8..19V AC ; 8..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x36x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182-A4

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )



Ports	2x CAN
CAN2.0 Connector	Mini-Fit
DATA Rates	Up to 1Mbps
Power Supply	8..19V AC ; 8..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



J1939 and NMEA 2000 - Repeater - Extender bus line

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between CAN0/CAN1 - CAN0/Power Supply - CAN1/Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .
Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .
Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67404-E4V

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )



Ports	2xCAN
Data Rates CAN	Up to 1000k bps
CAN Connector	3way Mini-Fit®
Power Supply Connector	2way Mini-Fit®
Power Supply	10..40V DC; 8..26V AC
Operating Temperature	-40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs	76x86x40 (LxWxH)
Dimensions With Fixing Lugs A	105x86x40 (LxWxH)
Dimensions With Fixing Lugs B	83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C	105x112.5x40 (LxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67404-E4R

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )



Ports	2xCAN
Data Rates CAN	Up to 1000k bps
CAN Connector	3way Mini-Fit®
Power Supply Connector	2way Mini-Fit®
Power Supply	10..40V DC; 8..26V AC
Operating Temperature	-40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs	76x86x40 (LxWxH)
Dimensions With Fixing Lugs A	105x86x40 (LxWxH)
Dimensions With Fixing Lugs B	83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C	105x112.5x40 (LxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67404-E7V

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )



Ports	2xCAN
Data Rates CAN	Up to 1000k bps
CAN Connector	3way AMP SuperSeal 1.5
Power Supply Connector	2way AMP SuperSeal 1.5
Power Supply	10..40V DC; 8..26V AC
Operating Temperature	-40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs	76x86x40 (LxWxH)
Dimensions With Fixing Lugs A	105x86x40 (LxWxH)
Dimensions With Fixing Lugs B	83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C	105x112.5x40 (LxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67404-E7R

J1939 and NMEA 2000 - Repeater - Extender bus line ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )



Ports	2xCAN
Data Rates CAN	Up to 1000k bps
CAN Connector	3way AMP SuperSeal 1.5
Power Supply Connector	2way AMP SuperSeal 1.5
Power Supply	10..40V DC; 8..26V AC
Operating Temperature	-40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs	76x86x40 (LxWxH)
Dimensions With Fixing Lugs A	105x86x40 (LxWxH)
Dimensions With Fixing Lugs B	83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C	105x112.5x40 (LxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



Series J1939 Repeater Optic fibres



HD67182F

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line




Ports	1xCAN; 2x Optic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1Mbps
DATA Rates Optic Fibres	Up to 1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182FS

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line ( High Performance )



Ports	1xCAN; 2x Optic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1Mbps
DATA Rates Optic Fibres	1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



Accessories

Order Code	Description
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107	Null Modem Cable, Fem/Fem, DSub 9 Pin,1.8 m
AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
