Modbus / Modbus TCP - Converter

Modbus / Modbus TCP WiFi - Converter

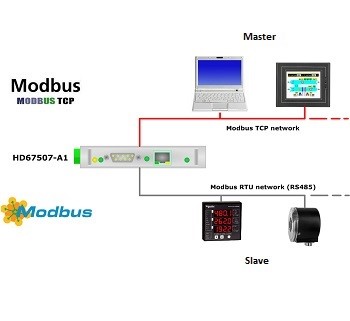

The HD67507 is a "Slave (server)" from the side Ethernet and is "Master" from the side Rs232/Rs485.

So, you can connect a "Master (Client)" Modbus TCP with one or more "slaves" Modbus RTU in order to exchange information between the Modbus TCP master and the Modbus slaves.

It is able to manage up tp 10 simultaneous connections from Ethernet side.
They are available in two Housing types: Type A and Type B.

The HD67507 is available also with the Wi-Fi version: it allows to interface a Modbus TCP Master with some Modbus RTU slaves.
The Modbus TCP connection is done over Wi-Fi.
The order code is HD67507-WiFi-B2.

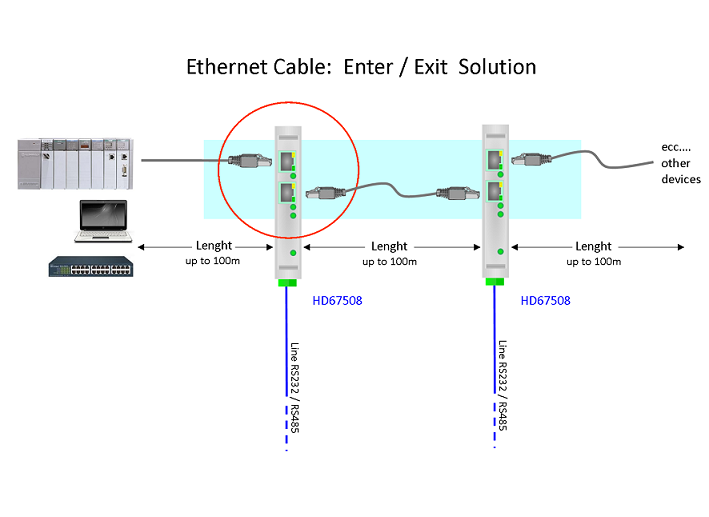

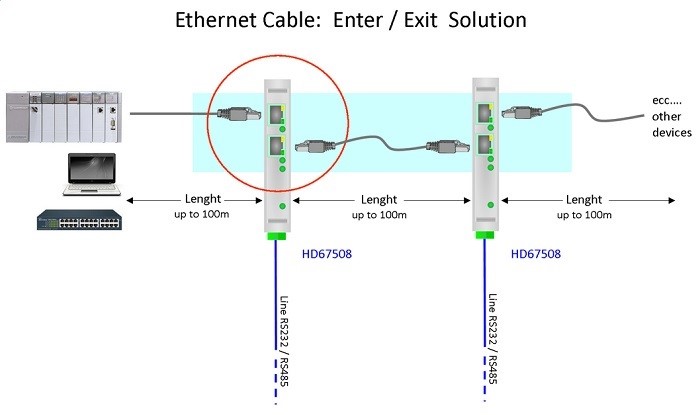

The HD67508 allows you to connect some Slaves Modbus RTU to a Master Modbus TCP over Ethernet .

That device differs from HD67507 because has 2 LAN ports , which allows the Ethernet connection in series of several Ethernet devices.

This system is an excellent field of use in systems of Industrial Automation (IAS) or inside of the Building Management Systems (BMS).

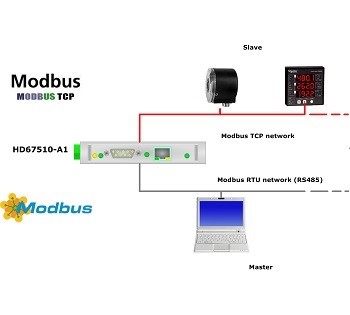

The HD67510 is a "Slave" from the side Rs232/Rs485 and is "Master (client) from the side Ethernet.

So you can connect a "Master" Modbus RTU with one or more "slaves (servers)" Modbus TCP in order to exchange information between the Modbus master on a serial and the slaves on the Ethernet.
It is available in two order codes: the HD67510-A1, and the HD67510-B2 (different for types of housing).

The HD67516 allows you to connect some Master Modbus RTU with one or more Slaves Modbus TCP over Ethernet .
The device differs from HD67510 because has 2 LAN ports , which allows the Ethernet connection in series of several Ethernet devices.

This system is an excellent field of use in systems of Industrial Automation (IAS) or inside of the Building Management Systems (BMS).

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD674-A002 - Modbus TCP Slave / Modbus Master, STRONG Converter
• HD674-A003 - Modbus Slave / Modbus TCP Master, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between Ethernet/Modbus - Ethernet/Power Supply - Modbus/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.

Series Modbus Slave / Modbus TCP Master

HD67510-A1

Modbus Slave / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )

HD67510-B2

Modbus Slave / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )

Modbus Slave / Modbus TCP Master Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between Modbus/Modbus TCP – Modbus TCP/Power Supply – Modbus/Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.

HD674-A003-E4V

Modbus Slave / Modbus TCP Master Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A003-E4R

Modbus Slave / Modbus TCP Master Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD674-A003-E7V

Modbus Slave / Modbus TCP Master Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A003-E7R

Modbus Slave / Modbus TCP Master Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67516-A1-232

Modbus Slave / Modbus TCP Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )( Modbus Slave on RS232 )

HD67516-A1-485

Modbus Slave / Modbus TCP Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )( Modbus Slave on RS485 )

Accessories

Benefits

• Software for easy configurator
• Designed for serius use
• Very easy to configure
• Low cost
• Rail din mountable
• Galvanic isolation
• Industrial temperature range:  -30° / 70° (-22°F / 158°F)
