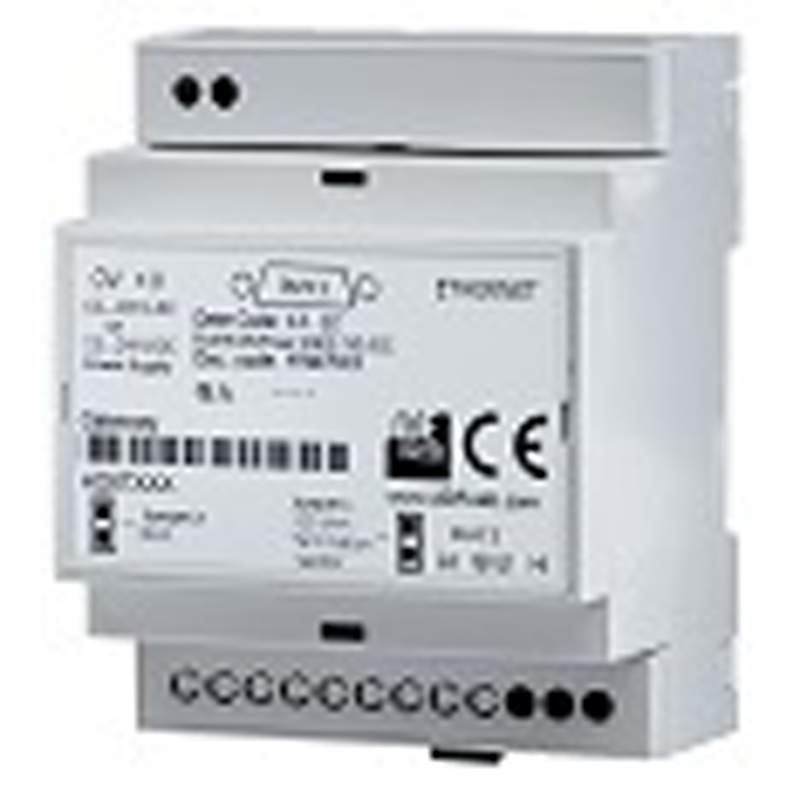

PROFIBUS to MQTT
Part No.: MPADFW-PROFIBUS-to-MQTT
This series of products allows you to integrate a PROFIBUS network with the IoT world based on MQTT net.
Product Description
IoT Gateway
PROFIBUS / MQTT - Converter
This series of products allows you to integrate a PROFIBUS network with the IoT world based on MQTT net.
The HD67950-B2 are PROFIBUS Master / MQTT Converters.
They allow to publish the data read from the PROFIBUS Slaves into a MQTT Server.

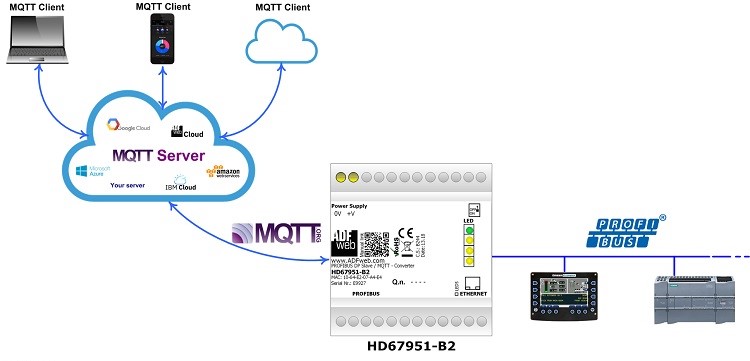

The HD67951-B2 are PROFIBUS Slave / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server using a PROFIBUS Master (like SIEMENS PLC, Supervisory System etc.)
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.
HD67950-B2
PROFIBUS Master / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| PROFIBUS Protocol | PROFIBUS Master | |
| Data Rates PROFIBUS | Up to 6 Mbps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-Sub 9 Female | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40º to +85º (-40ºF to +185ºF) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67950 | |
HD67951-B2
PROFIBUS Slave / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| PROFIBUS Protocol | PROFIBUS Slave | |
| Data Rates PROFIBUS | Up to 6 Mbps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-Sub 9 Female | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67951 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
