RS232-422-485 to MQTT
Part No.: MPADFW-RS232-422-485-to-MQTT
The HD67932-B2 are Serial / MQTT Converters.
產品介紹
IoT Gateway
Serial / MQTT - Converter

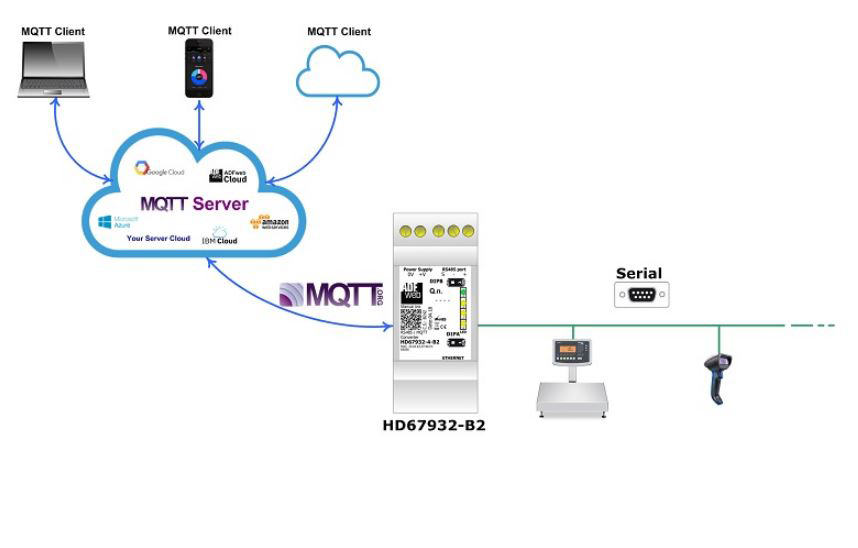

The HD67932-B2 are Serial / MQTT Converters.
They allow to publish the data received from Serial into a MQTT Server.
These gateways allow a fast and easy access to the IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFE communication.
The Serial messages and the commands to send will be completely configurable and it will be possible the interface with all the Serial Devices (like barcode scanners, printers, RFID, weight scales etc.) based on custom Serial protocols (like generic ASCII communication).
There are also two differnts order codes in relation of the type of serial port:
- HD67932-2-B2: Serial RS232 / MQTT - Converter
- HD67932-4-B2: Serial RS485 / MQTT - Converter
HD67932-2-B2
RS232 / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xSerial; 1xEthernet | |
|---|---|---|
| Serial Protocol | RS232 | |
| Ethernet Protocol | MQTT | |
| RS232 Connector | 2way 5mm terminal block | |
| MQTT Connector | RJ45 | |
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| Power Supply | 8..24V AC 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67932 | |
HD67932-4-B2
RS485 / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xSerial; 1xEthernet | |
|---|---|---|
| Serial Protocol | RS485 | |
| Ethernet Protocol | MQTT | |
| RS485 Connector | 2way 5mm terminal block | |
| MQTT Connector | RJ45 | |
| Data Rates RS485 | Up to 115200 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| Power Supply | 8..24V AC 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67932 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
