CANopen: Bridge CANopen/ CANopen
Part No.: MPADFW-CANopen-Bridge-CANopen-CANopen

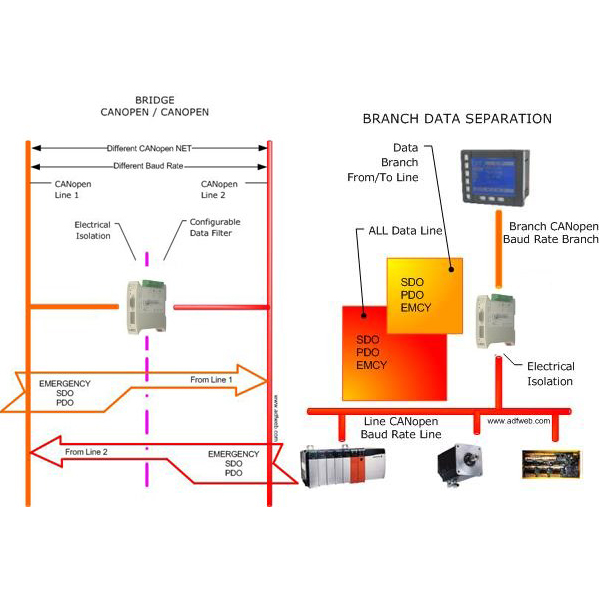

This series of products allows to integrate a CANopen network with another CANopen net.
產品介紹
CANopen / CANopen - Converter / Bridge
This series of products allows to integrate a CANopen network with another CANopen net.
This type of converters are employed in a particular way in the industrial automation.
The CANopen protocol has also the function of PDO and SDO for the management of data and services, EMCY for the management of alarms.
This device also performs the function of filtering a frame between two CANopen bus.
HD67121
CANopen / CANopen - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2 x CAN; 1xRS232C | |
|---|---|---|
| Data Rates CAN | From 10K up to 1M bps | |
| Max Distance | 5.000 m. for 10K bps;25 m for 1M bps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| DIP Switch | Different Baud Rate Setting | |
| LED | 1 x Power indicator;2 x Signal indicator | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67121 | |
| Ports | 2 x CAN 2.0; RS232C | |
|---|---|---|
| Data Rates CAN | From 10K up to 1M bps | |
| Max Distance | 5.000 m. for 10K bps;25 m for 1M bps | |
| Power Supply | 24 VDC 200mA; 12/18V AC; 50/60 Hz;200mA | |
| DIP Switch | Different Baud Rate Setting | |
| LED | 1 x Power indicator;2 x Signal indicator | |
| Operating Temperature | -30° to +70° (-22°F to +158°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67121 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
