CANopen to CAN
Part No.: MPADFW-CANopen-to-CAN
This series of products allows to integrate a CAN network with a CANopen net.
產品介紹
CAN / CANopen - Converter
This series of products allows to integrate a CAN network with a CANopen net.
The HD67042 is a CAN / CANopen Converter and it allows you to connect a CAN net with a CANopen network in order to exchange the informations between the networks.
Important is the automatic generation of the GSD file that allows you to integrate the device into your system quickly.
They are available with differents connectors:
- HD67042-A1 - CAN / CANopen (Terminal Blocks Connectors)
- HD67042-A3 - CAN / CANopen (M12 Connectors)
- HD67042-A4 - CAN / CANopen (Mini-Fit Connectors)
The converters are available also in another version, ideal for STRONG applications.
The corresponding models are:
- HD674-A031 - CAN / CANopen, STRONG Converter
These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between CAN/CANopen - CAN/Power Supply - CANopen/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.
CAN from/to CANopen

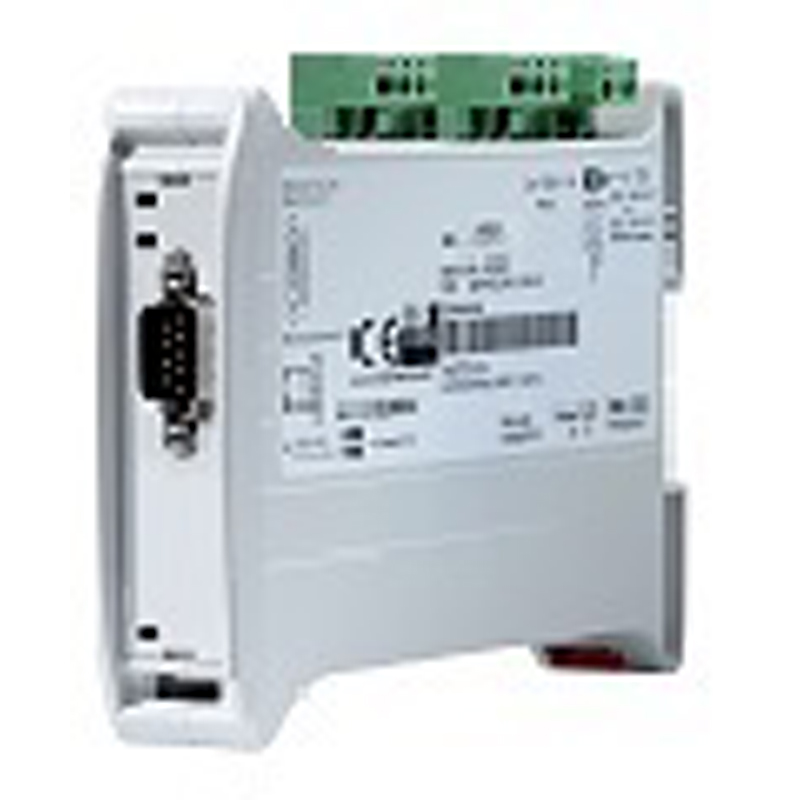

HD67042-A1
CAN / CANopen - Converter ( Housing type: A, Terminal Blocks connectors )
| Ports | 1xCAN; 1xCANopen | |
|---|---|---|
| Connectors | Terminal Blocks | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67042 | |
HD67042-A3
CAN / CANopen - Converter ( Housing type: A, M12 Connectors )
| Ports | 1xCAN; 1xCANopen | |
|---|---|---|
| Connectors | M12 | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x36x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67042 | |
HD67042-A4
CAN / CANopen - Converter ( Housing type: A, Mini-Fit Connectors )
| Ports | 1xCAN; 1xCANopen | |
|---|---|---|
| Connectors | Mini-Fit | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67042 | |
CAN / CANopen - Converter

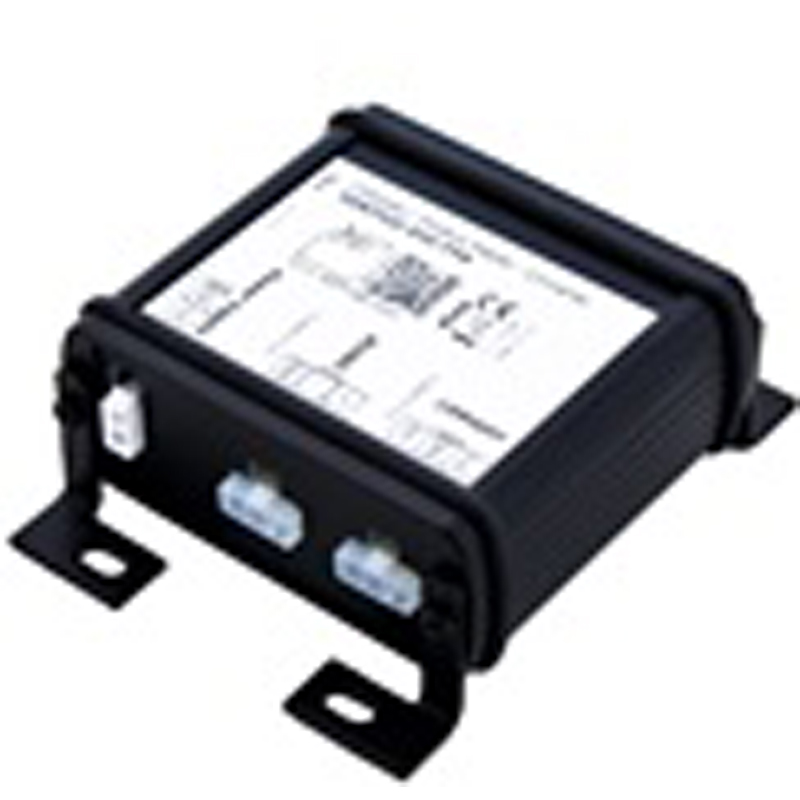

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between CAN/CANopen – CAN / Power Supply – CANopen / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.
HD674-A031-E4V
CAN / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 2xCAN | |
|---|---|---|
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| CAN Connector | 3way Mini-Fit® | |
| CANopen Connector | 3way Mini-Fit® | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW74-A031 | |
HD674-A031-E4R
CAN / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 2xCAN | |
|---|---|---|
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| CAN Connector | 3way Mini-Fit® | |
| CANopen Connector | 3way Mini-Fit® | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW74-A031 | |
HD674-A031-E7V
CAN / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 2xCAN | |
|---|---|---|
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| CAN Connector | 3way SuperSeal 1.5 | |
| CANopen Connector | 3way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A031 | |
HD674-A031-E7R
CAN / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 2xCAN | |
|---|---|---|
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates CANopen | Up to 1000 kbps | |
| CAN Connector | 3way SuperSeal 1.5 | |
| CANopen Connector | 3way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A031 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC67402 | Cable Super Seal 1.5 MALE 2-pole - 1.0 Meters |
| AC67402-3 | Cable Super Seal 1.5 MALE 2-pole - 3.0 Meters |
| AC67403 | Cable Super Seal 1.5 MALE 3-pole - 1.0 Meters |
| AC67403-3 | Cable Super Seal 1.5 MALE 3-pole - 3.0 Meters |
| AC67404 | Cable Super Seal 1.5 MALE 4-pole - 1.0 Meters |
| AC67404-3 | Cable Super Seal 1.5 MALE 4-pole - 3.0 Meters |
| AC67410 | Accessory Automotive Devices - Support for rail DIN |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
