CANopen to DALI
Part No.: MPADFW-CANopen-to-DALI
This series of products allows to integrate some DALI & DALI-2 devices into a CANopen network.
產品介紹
DALI / CANopen - Converter
This series of products allows to integrate some DALI & DALI-2 devices into a CANopen network.

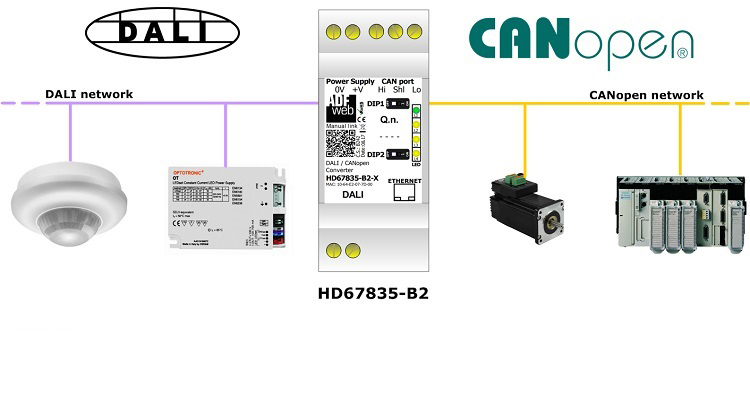

The HD67835-B2 is a DALI / CANopen Converter so you can connect a DALI net ( a light system, Sensors etc.. ) with a CANopen network in order to exchange informations between the nets.

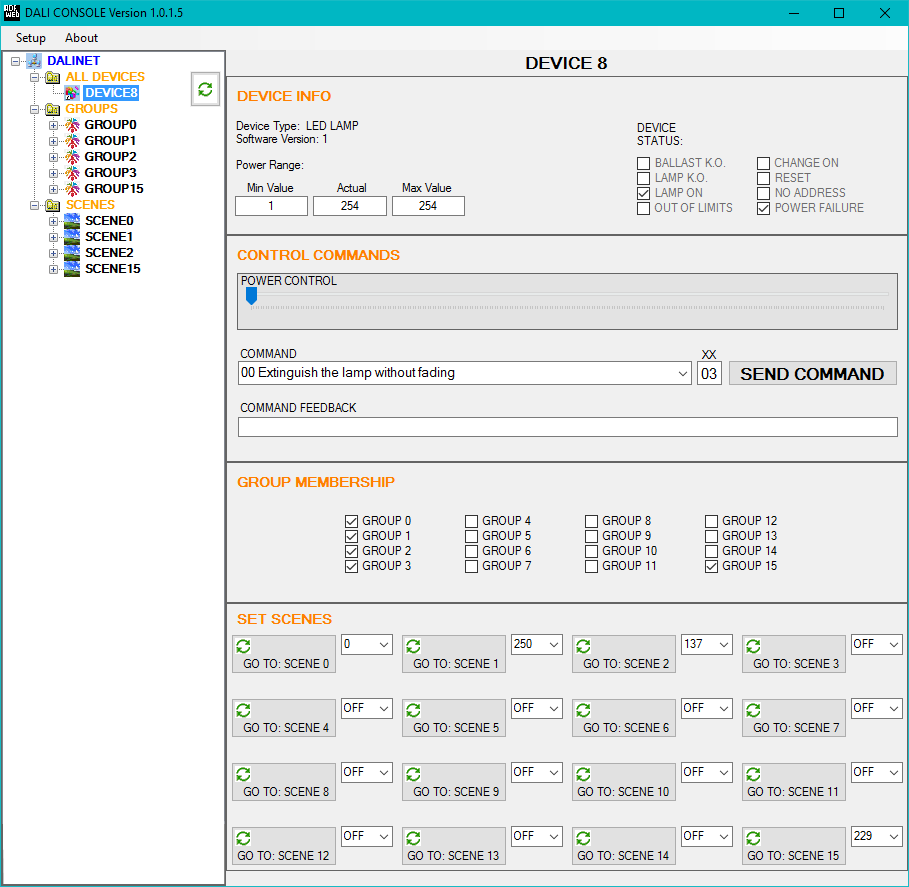

To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
.png)
It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.
DALI / CANopen
HD67835-B2

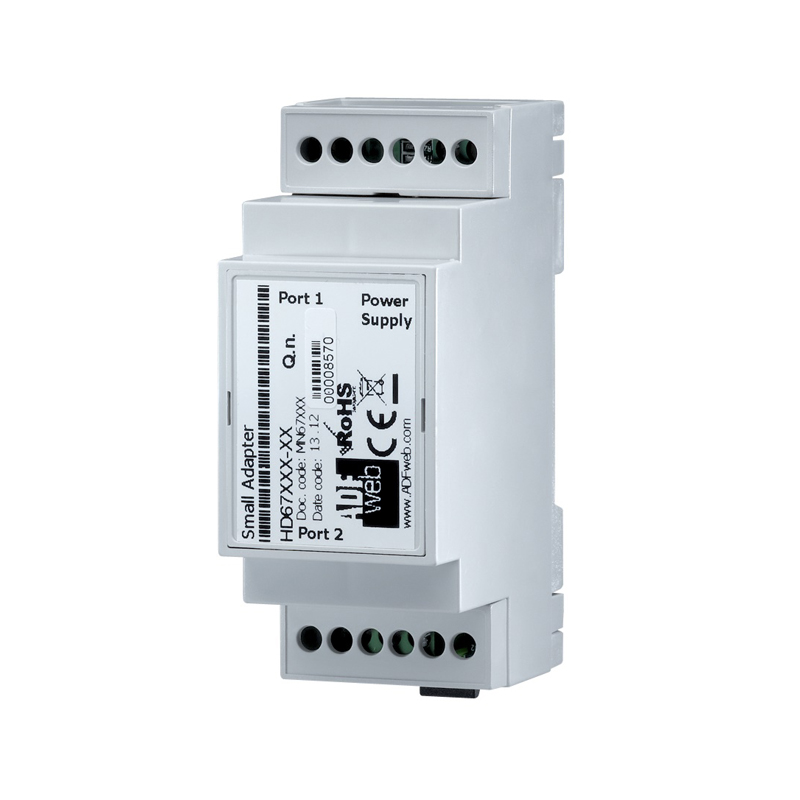

DALI / CANopen - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xCAN | |
|---|---|---|
| DALI Protocol | DALI | |
| CAN Protocol | CANopen | |
| Data Rates DALI | 1200 bps | |
| Data Rates CANopen | Up to 1 Mbps | |
| DALI Connector | 2way 5mm terminal block | |
| CANopen Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67835 | |
DALI / CAN
HD67834-B2
DALI / CAN - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xCAN | |
|---|---|---|
| DALI Protocol | DALI | |
| CAN Protocol | CAN | |
| Data Rates DALI | 1200 bps | |
| Data Rates CAN | Up to 1 Mbps | |
| DALI Connector | 2way 5mm terminal block | |
| CAN Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67834 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
