CANopen / HART - Converter

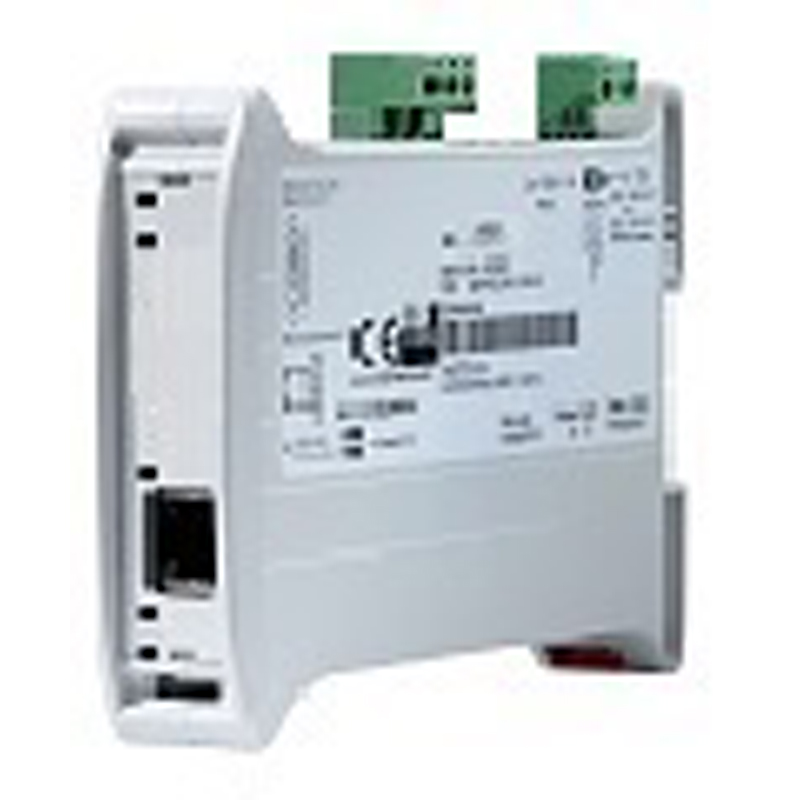

The HD67903-A1 are CANopen / HART converters.
They allow to monitor HART devices (like Sensors, etc..) with a CANopen net.
On the HART side, the HD67903A1 can manage up to 15 deivces (+1 Secondary Master).
HD67903-A1 supports HART FSK.
HD67903-A1 can be used like Primary HART Master or like Secondary HART Master.
CANopen / HART
HD67903-A1
CANopen / HART Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 1xHART | |
|---|---|---|
| CAN Protocol | CANopen | |
| HART Protocol | HART FSK Master + 4..20mA Analog Input | |
| Data Rates CAN | Up to 1Mbps | |
| Data Rates HART | 1200bps | |
| CAN Connector | 3way 5mm terminal block | |
| HART Connector | 2way 5mm terminal block | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| HART Power Supply | Additional power supply 24 V DC for HART devices | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67903 | |
CAN / HART
HD67902-A1
CANopen / HART Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 1xHART | |
|---|---|---|
| CAN Protocol | CANopen | |
| HART Protocol | HART FSK Master + 4..20mA Analog Input | |
| Data rates CAN | Up to 1Mbps | |
| Data rates HART | 1200bps | |
| CAN Connector | 3way 5mm terminal block | |
| HART Connector | 2way 5mm terminal block | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| HART Power Supply | Additional power supply 24 V DC for HART devices | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67903 | |
.jpg)
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
