This series of products allows to integrate some IEC61850 devices into a CANopen network.
產品介紹

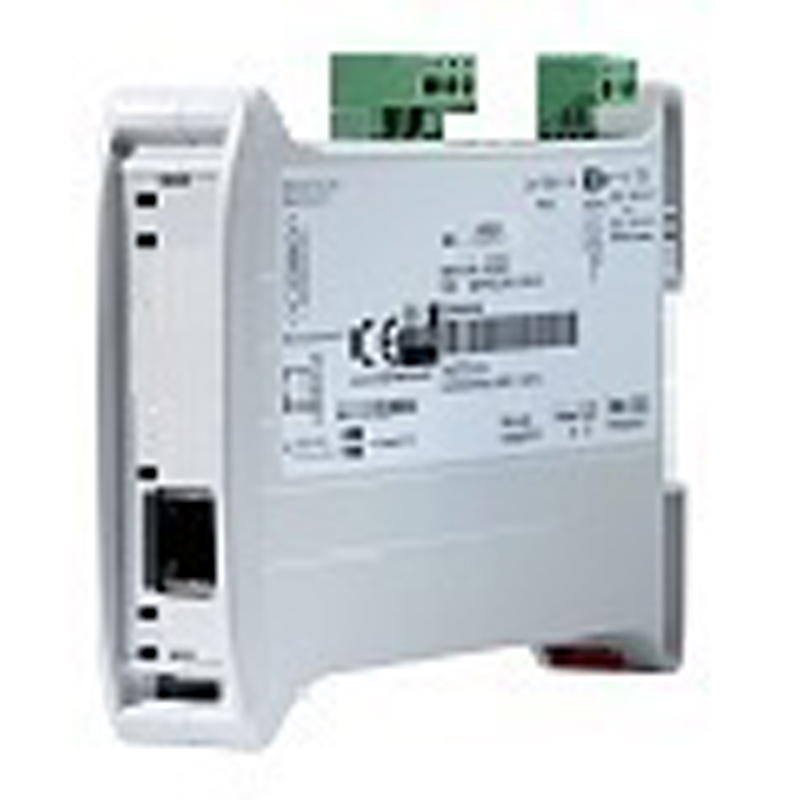

IEC 61850 / CANopen - Converter
This series of products allows to integrate some IEC61850 devices into a CANopen network.

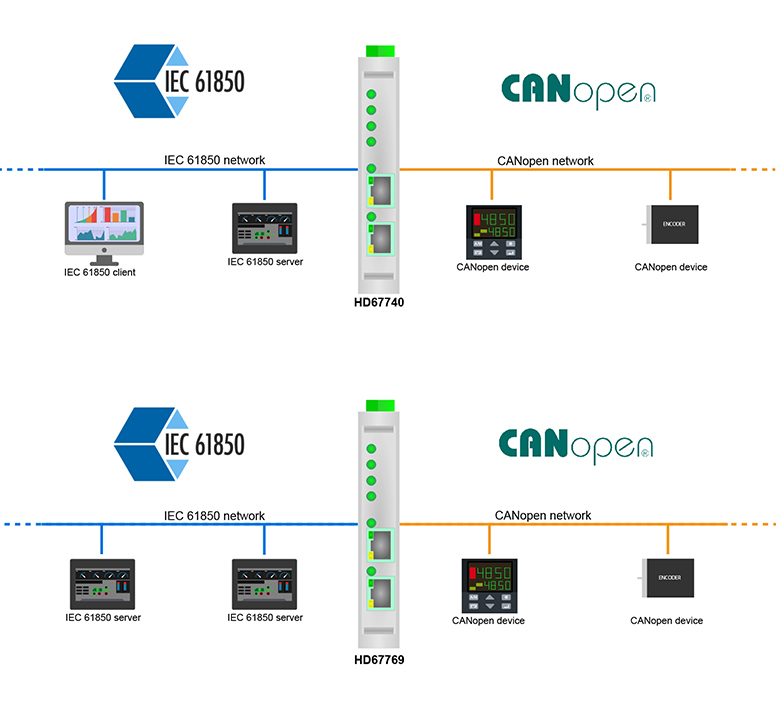

The HD67740-A1 is an IEC 61850 Server / CANopen Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some CANopen devices in order to exchange informations between the nets.
The HD67769-A1 is an IEC 61850 Client / CANopen Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) with some CANopen devices in order to exchange informations between the networks.
The HD67739-A1 is an IEC 61850 Server / CAN Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some CAN devices in order to exchange informations between the nets.
The HD67768-A1 is an IEC 61850 Client / CAN Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) with some CAN devices in order to exchange informations between the networks.
IEC 61850 / CANopen
HD67740-A1
IEC 61850 Server / CANopen - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xCAN | |
|---|---|---|
| CANopen Protocol | CANopen | |
| IEC 61850 Protocol | Server | |
| Data Rates CANopen | Up to 1Mbps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| CANopen Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67740 | |
HD67769-A1
IEC 61850 Client / CANopen - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xCAN | |
|---|---|---|
| CANopen Protocol | CANopen | |
| IEC 61850 Protocol | Client | |
| Data Rates CANopen | Up to 1Mbps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| CANopen Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67769 | |
IEC 61850 / CAN
HD67739-A1
IEC 61850 Server / CAN - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xCAN | |
|---|---|---|
| CAN Protocol | CAN 2.0A and CAN 2.0B | |
| IEC 61850 Protocol | Server | |
| Data Rates CAN | Up to 1Mbps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67739 | |
HD67768-A1
IEC 61850 Client / CAN - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xCAN | |
|---|---|---|
| CAN Protocol | CAN 2.0A and CAN 2.0B | |
| IEC 61850 Protocol | Client | |
| Data Rates CAN | Up to 1Mbps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67768 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
