CANopen to M-Bus
Part No.: MPADFW-CANopen-to-M-Bus

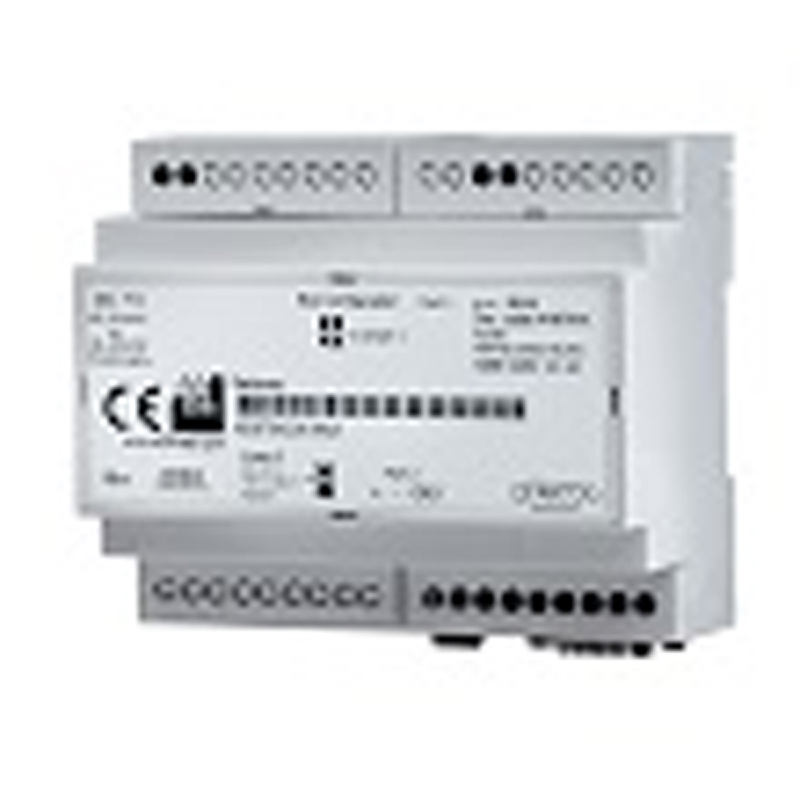

The HD67051-B2-xxx are M-Bus / CANopen converters.
產品介紹
M-Bus / CANopen - Converter
The HD67051-B2-xxx are M-Bus / CANopen converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a CANopen net (like a PLC exc).
On M-Bus side, the HD67051-B2 can manage up to 250 meters.
HD67051-B2-20
M-Bus / CANopen - Converter ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus; 1xRS232;1xCANopen | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates CANopen | Up to 1000 Kbps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67051 | |
HD67051-B2-40
M-Bus / CANopen - Converter ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xRS232;1xCANopen | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates CANopen | Up to 1000 Kbps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67051 | |
HD67051-B2-80
M-Bus / CANopen - Converter ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xRS232;1xCANopen | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates CANopen | Up to 1000 Kbps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67051 | |
HD67051-B2-160
M-Bus / CANopen - Converter ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xRS232;1xCANopen | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates CANopen | Up to 1000 Kbps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67051 | |
HD67051-B2-250
M-Bus / CANopen - Converter ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xRS232;1xCANopen | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates CANopen | Up to 1000 Kbps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67051 | |
Accessories
| Order Code | Description |
|---|---|
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30°C / 70°C (-22°F / 158°F)
