BACnet to DALI
Part No.: MPADFW-BACnet-to-DALI
This series of products allows to integrate some DALI & DALI-2 devices into a BACnet network.
產品介紹

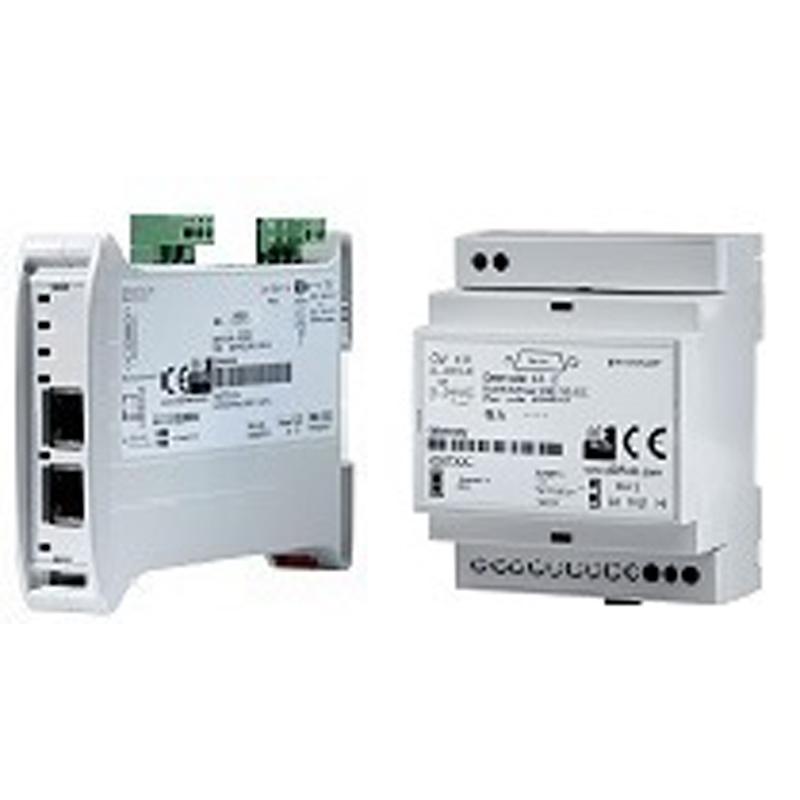

DALI / BACnet - Converter
This series of products allows to integrate some DALI & DALI-2 devices into a BACnet network.
The HD67832-B2 is a DALI / BACnet Master Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with some BACnet slaves in order to exchange informations between the nets.
The HD67833-B2 is a DALI / BACnet Slave Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with a BACnet Master ( like a Supervisory System.. ) in order to exchange informations between the nets.
HD67832-IP, HD67833-IP supports both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67832-MSTP, HD67833-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
DALI / BACnet IP
HD67832-IP-B2
DALI / BACnet IP Master - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | BACnet IP Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| DALI Connector | 2way 5mm terminal block | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67832 | |
HD67833-IP-B2
DALI / BACnet IP Slave - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | BACnet IP Slave | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| DALI Connector | 2way 5mm terminal block | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC(-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67833 | |
DALI / BACnet MSTP
HD67832-MSTP-B2
DALI / BACnet IP Master - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xRS485 | |
|---|---|---|
| DALI Protocol | DALI | |
| BACnet Protocol | BACnet MSTP Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 115200 bps | |
| DALI Connector | 2way 5mm terminal block | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67832 | |
HD67833-MSTP-B2
DALI / BACnet MSTP Slave - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xRS485 | |
|---|---|---|
| DALI Protocol | DALI | |
| BACnet Protocol | BACnet MSTP Slave | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 115200 bps | |
| DALI Connector | 2way 5mm terminal block | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67833 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
