DALI to DeviceNet
Part No.: MPADFW-DALI-to-DeviceNet
This series of products allows to integrate some DALI & DALI-2 devices into a DeviceNet network.
產品介紹
DALI / DeviceNet - Converter
This series of products allows to integrate some DALI & DALI-2 devices into a DeviceNet network.
The HD67836-B2 is a DALI / DeviceNet Master Converter so you can connect a DALI net ( a light system, Sensors etc.. ) with some DeviceNet Slaves in order to exchange informations between the nets.

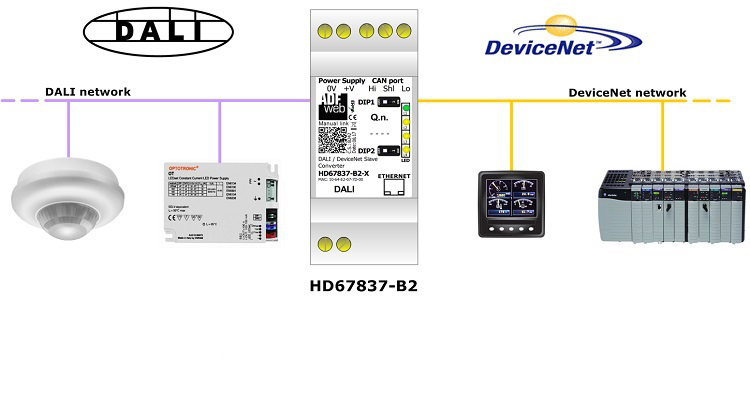

The HD67837-B2 is a DALI / DeviceNet Slave Converter so you can connect a DALI net ( a light system, Sensors etc.. ) with a DeviceNet Master (like Allen-Bradley PLC..) in order to exchange informations between the nets.
To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
.png)
It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.
DALI / DeviceNet
HD67836-B2

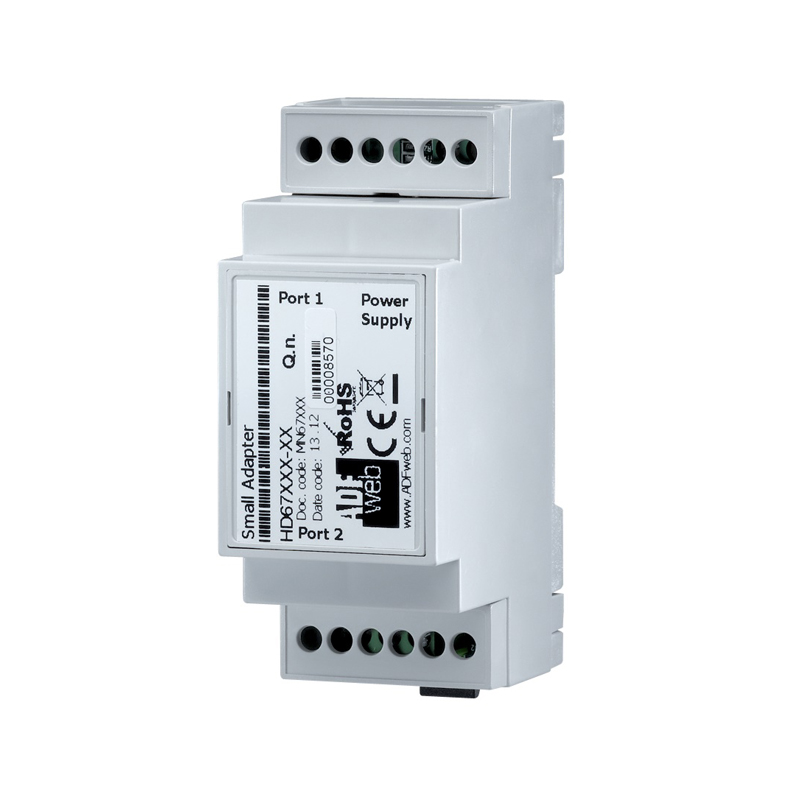

DALI / DeviceNet Master - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xCAN | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | DeviceNet Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 1 Mbps | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67836 | |
HD67837-B2
DALI / DeviceNet Slave - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xCAN | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | DeviceNet Slave | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 1 Mbps | |
| DALI Connector | 2way 5mm terminal block | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67837 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
