DeviceNet: Optic Fiber DeviceNet
Part No.: MPADFW-DeviceNet-Optic-Fiber-DeviceNet
The series F and FSX CAN bus devices are designed to extend high CAN bus signals over Multi-Modal fiber optic, providing RFI and electrical insulation.
產品介紹
Fiber Optic
Bridge and Repeater

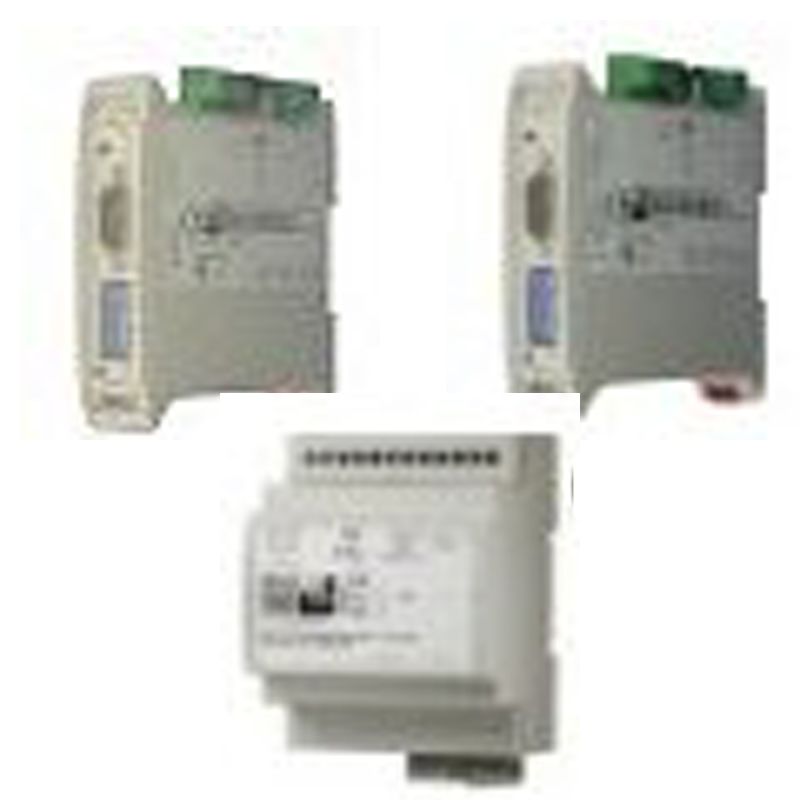

These Optic Fiber devices are designed to extend CAN, CANopen, DeviceNet, J1939, CAN 2.0A
and CAN2.0B networks using the optic fibers, without repeaters.
The series F and FSX CAN bus devices are designed to extend high CAN bus signals over Multi-Modal fiber optic, providing RFI and electrical insulation.
The HD67221F and the HD67221FSX are CAN repeaters with filter data configurable by software. It means that it is possible to filter the CAN data and choose the CAN frames that can be transmitted or not.
The HD67181F and the HD67181FSX are generic CAN repeaters that allows to extend a CAN network through Multi-Modal fiber optic.
The HD67117F and the HD67117FSX are CAN repeaters, specific for CANopen protocol.
The HD67182F and the HD67182FSX are CAN repeaters, specific for J1939 and NMEA 2000 protocols.
The HD67180F and the HD67180FSX are CAN repeaters, specific for DeviceNet protocol.
With the devices described previously, the possible connection topology is Point-To-Point (see diagrams on the right).
.jpg)
The HD67701 and the HD67702 are devices that allow to extend the CAN networks through Multi-Modal fiber or Mono-Modal fiber or copper (Ethernet cable). This different type connections are possible thank the SFPs (Small Factor Pluggable): these are particular interchangeable modules that allow to change the type of cable and the maximum viable distance (160 – 80 – 40 – 20 – 10 – 2 km). In is possible to buy this devices with the SFP mounted or without.
With the HD67701 is possible to make a Point-To-Point connection or a Single Loop (see the diagrams on the right).
With the HD67702 is possible to make a Multi-Drop connection or a Double Loop (see the diagrams on the right).
Series CAN Optic fibres repeater and Bridge
HD67221F
CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable)
| Ports | 1xCAN 2.0; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | Up to 1Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67221F | |
HD67221FSX
CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable) ( High Performance )
| Ports | 1xCAN 2.0; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | 1Mbps | |
| Serial Connector | 3way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67221FSX | |
Series CAN Optic fibres repeater
HD67181F
CAN / Optic Fiber - Repeater - Extender bus line
| Ports | 1xCAN 2.0; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | Up to 1 Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
HD67181FSX
CAN / Optic Fiber - Repeater - Extender bus line ( High Performance )
| Ports | 1xCAN; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | 1Mbps | |
| Power Supply | 10..19V AC; 10..35V DC | |
|
Operating Temperature
|
-40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
Series Optic Fibres CANopen Repeater
HD67117F
CANopen / Optic Fiber - Repeater - Extender bus line
| Ports | 1xCAN; 2x Optic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | Up to 1Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
HD67117FSX
CANopen / Optic Fiber - Repeater - Extender bus line ( High Performance )
| Ports | 1xCAN ; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | 1Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
Series Optic Fibres J1939 Repeater
HD67182F
J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line
| Ports | 1xCAN ; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | Up to 1 Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
HD67182FSX
J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line
| Ports | 1xCAN; 2x Optic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | 1Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
Series Optic Fibres DeviceNet Repeater
HD67180F
DeviceNet / Optic Fiber - Repeater - Extender bus line
| Ports | 1xCAN ; 2xOptic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | Up to 1 Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
HD67180FSX
DeviceNet / Optic Fiber - Repeater - Extender bus line (High Performance)
| Ports | 1xCAN; 2x Optic Fibres | |
|---|---|---|
| CAN2.0 Connector | Terminal block | |
| Optic Fibres Connector | ST 820 um | |
| DATA Rates CAN2.0 | Up to 1 Mbps | |
| DATA Rates Optic Fibres | 1Mbps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
Series Converter CAN from/to Single-Mode Optic Fibres
HD67701-C-0-H5S
CAN / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )
| Ports | 1xCAN ; 1xUSB; 2xOptic Fibres | |
|---|---|---|
| Data Rates CAN | Up to 1Mbps | |
| CAN Connector | 3way 5mm fixed screw terminal | |
| Optic Fiber Connector | SFP | |
| Power Supply | 9..19V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67701 | |
HD67702-C-0-H5S-H5S
CAN / Single-Mode Optic Fiber - Converter (Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point)
| Ports | 1xCAN; 1xUSB; 4xOptic Fibers | |
|---|---|---|
| Data Rates CAN | Up to 1Mbps | |
| CAN Connector | 3way 5mm fixed screw terminal | |
| Optic Fiber Connector | SFP | |
| Power Supply | 9..19V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67701 | |
Series Converter CAN from/to Multi-Mode Optic Fibres
HD67701-C-0-D5M
CAN / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )
| Ports | 1xCAN ; 2xOptic Fibres | |
|---|---|---|
| Data Rates CAN | Up to 1Mbps | |
| CAN Connector | 3way 5mm fixed screw terminal | |
| Optic Fiber Connector | SFP | |
| Power Supply | 9..19V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67701 | |
HD67702-C-0-D5M-D5M
CAN / Multi-Mode Optic Fiber - Converter (Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point)
| Ports | 1xCAN; 4xOptic Fibers | |
|---|---|---|
| Data Rates CAN | Up to 1Mbps | |
| CAN Connector | 3way 5mm fixed screw terminal | |
| Optic Fiber Connector | SFP | |
| Power Supply | 9..19V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67701 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| AC34121 | Patch Cable Fibers ST/ST 2x2 Meters |
| AC34122 | Patch Cable Fibers ST/ST 2x10 Meters |
| AC34132-OS2-2 | Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 2 Meters |
| AC34132-OS2-10 | Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 10 Meters |
| AC34132-OS2-20 | Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 20 Meters |
| AC34133-OS2-2 | Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 2 Meters |
| AC34133-OS2-10 | Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 10 Meters |
| AC34133-OS2-20 | Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 20 Meters |
| AC67700-10-S |
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 10 km MONOMODAL |
| AC67700-20-S |
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 20 km MONOMODAL |
| AC67700-40-S |
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 40 km
MONOMODAL |
