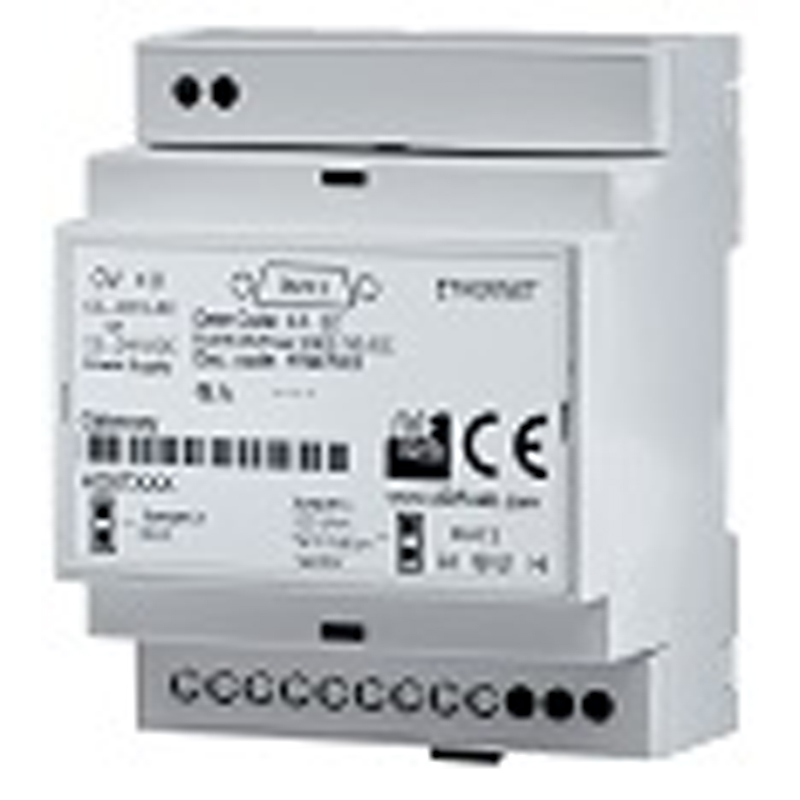

EnOcean to Modbus
Part No.: MPADFW-EnOcean-to-Modbus
This series of products allows to integrate some EnOcean devices into a Modbus network.
產品介紹
EnOcean / Modbus - Converter
This series of products allows to integrate some EnOcean devices into a Modbus network.
The HD67C52-B2 is an EnOcean / Modbus Slave Converter so you can connect an EnOcean network with a Modbus Master in order to exchange informations between the Modbus Master (for example a PLC, etc..) and the EnOcean network.
There are also differnts order codes in relation of the type of serial port:
- HD67C52-2-B2: EnOcean / Modbus over RS232 - Converter
- HD67C52-5-B2: EnOcean / Modbus over RS485 - Converter
The HD67C54-B2 is an EnOcean / Modbus TCP Slave Converter so you can connect an EnOcean network with a Modbus TCP Master in order to exchange informations between the Modbus TCP Master (for example a PLC, etc..) and the IEC61850 network.
EnOcean / Modbus Slave Converters
HD67C52-2-B2
EnOcean / Modbus (RS232) - Converter( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xRS232 | |
|---|---|---|
| Modbus Protocol | Modbus Slave RS232 | |
| Ethernet Protocol | EnOcean | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C52 | |
HD67C52-5-B2
EnOcean / Modbus (RS485) - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xRS485 | |
|---|---|---|
| Modbus Protocol | Modbus Slave RS485 | |
| Ethernet Protocol | EnOcean | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
|
Power Supply Connector
|
2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C52 | |
EnOcean / Modbus TCP Slave Converters
HD67C54-B2
EnOcean / Modbus TCP - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| Modbus TCP Protocol | Modbus TCP Slave | |
| Ethernet Protocol | EnOcean | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| Modbus TCP Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C54 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
