EnOcean to NMEA2000
Part No.: MPADFW-EnOcean-to-NMEA2000
This series of products allows to integrate some EnOcean devices into a NMEA2000 network.
產品介紹
EnOcean / NMEA2000 - Converter
This series of products allows to integrate some EnOcean devices into a NMEA2000 network.

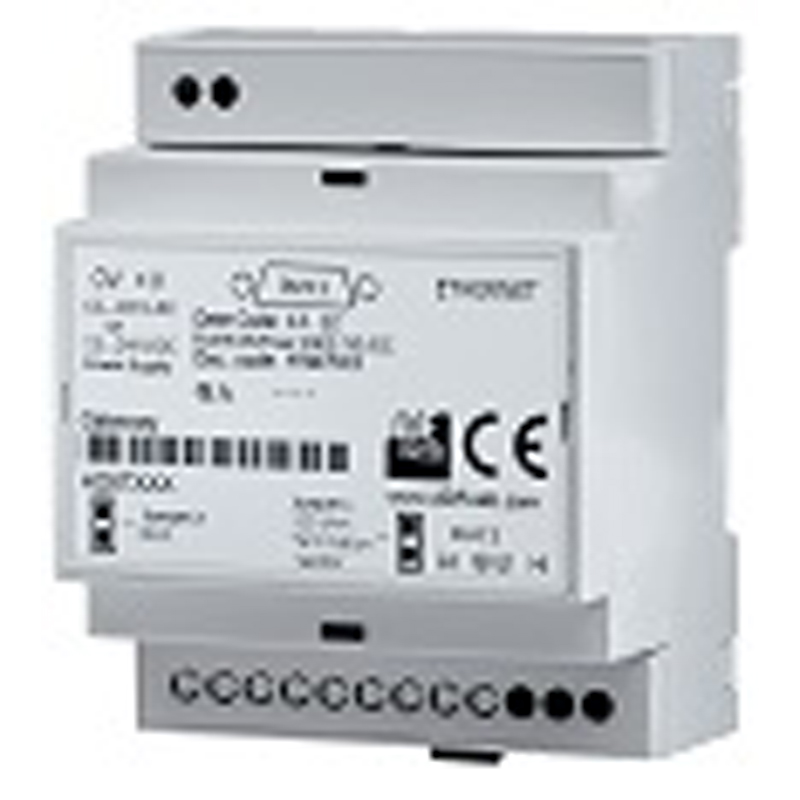

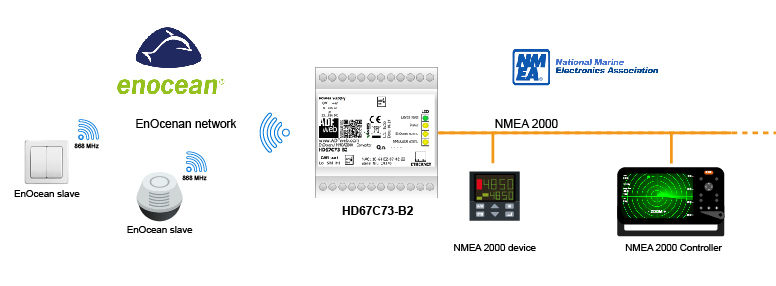

The HD67C73 is an EnOcean / NMEA2000 Converter and it allows you to read/write the data from one or more EnOcean devices using NMEA2000 devices.
EnOcean / NMEA2000 Converters
HD67C73-B2
EnOcean / NMEA2000 - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet;1xCAN | |
|---|---|---|
| CAN Protocol | NMEA2000 | |
| Ethernet Protocol | EnOcean | |
| Data Rates NMEA2000 | Up to 1Mbps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| NMEA2000 Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C73 | |
EnOcean / NMEA0183 Converters
HD67C72-5-B2
EnOcean / NMEA0183(RS485) - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xRS485 | |
|---|---|---|
| NMEA0183 Protocol | NMEA0183 RS485 | |
| Ethernet Protocol | EnOcean | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C57 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
