EnOcean to Serial
Part No.: MPADFW-EnOcean-to-Serial
This series of products allows to integrate some EnOcean devices into a Serial network.
產品介紹
EnOcean / Serial - Converter
This series of products allows to integrate some EnOcean devices into a Serial network.

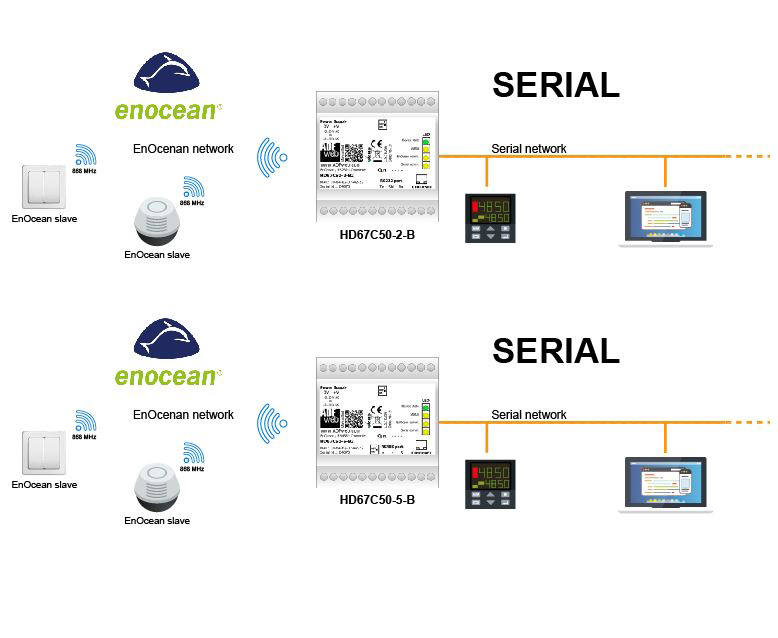

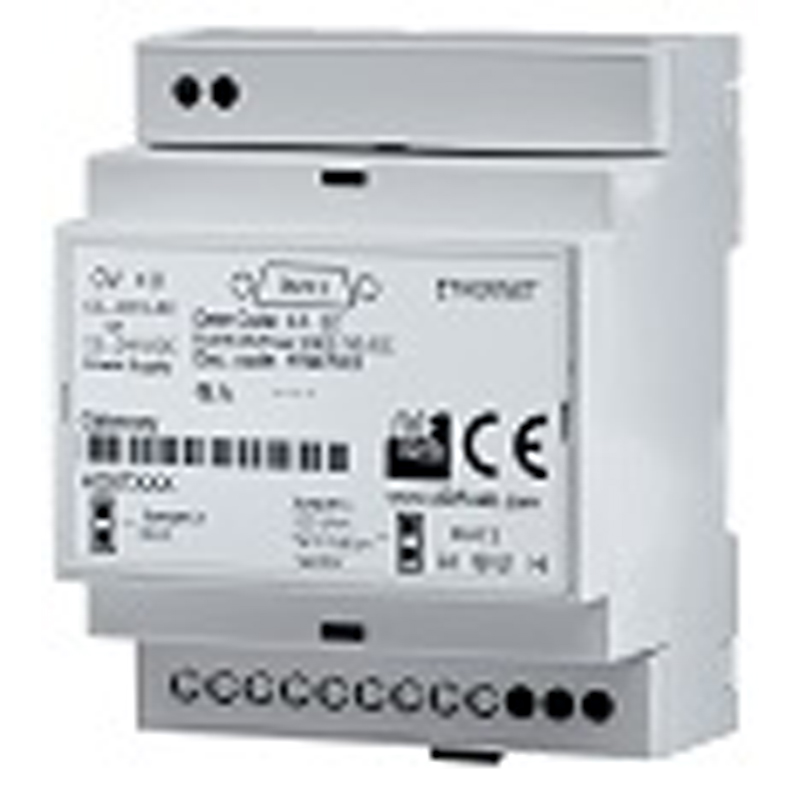

The HD67C50-B2 is an EnOcean / Serial Converter so you can connect an EnOcean network and interface this by Serial in order to exchange informations between the nets.
There are also differnts order codes in relation of the type of serial port:
- HD67C50-2-B2: EnOcean / Serial over RS232 - Converter
- HD67C50-5-B2: EnOcean / Serial over RS485 - Converter
HD67C50-2-B2
EnOcean / Serial (RS232) - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xRS232 | |
|---|---|---|
| Serial Protocol | Serial RS232 | |
| Ethernet Protocol | EnOcean | |
| Data Rates Serial | Up to 115200 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| Serial Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C50 | |
HD67C50-5-B2
EnOcean / Serial (RS485) - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xRS485 | |
|---|---|---|
| Serial Protocol | Serial RS485 | |
| Ethernet Protocol | EnOcean | |
| Data Rates Serial | Up to 115200 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| Serial Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C50 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
