J1939 to MQTT
Part No.: MPADFW-J1939-to-MQTT
This series of products allows you to integrate a J1939 network with the IoT world based on MQTT net.
產品介紹
IoT Gateway
J1939 / MQTT - Converter
This series of products allows you to integrate a J1939 network with the IoT world based on MQTT net.

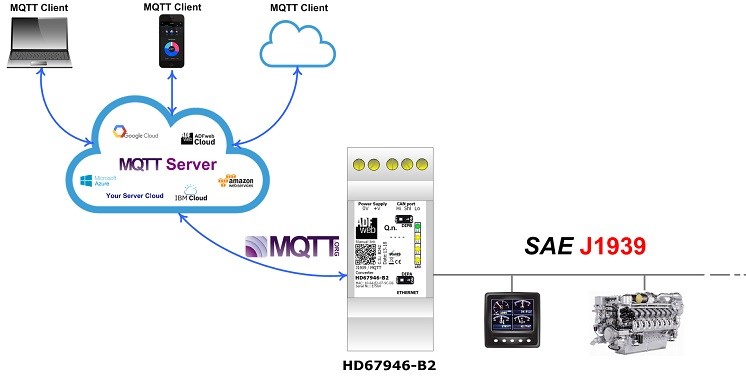

The HD67946-B2 are J1939 / MQTT Converters.
They allow to publish and get the data from/to a J1939 network into/from a MQTT Server.
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.
HD67946-B2
J1939 / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xCAN;1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| CAN Protocol | J1939 | |
| Data Rates J1939 | Up to 1 Mbps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| J1939 Connector | 3way 5mm terminal block | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67946 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
