KNX to Modbus TCP
Part No.: MPADFW-KNX-to-Modbus-TCP
This series of products allows to integrate a Modbus TCP network with a KNX net.
產品介紹
Modbus TCP / KNX - Converter
This series of products allows to integrate a Modbus TCP network with a KNX net.
The HD67814 is a Modbus TCP Master / KNX Converter and it allows you to connect some Modbus TCP Slaves with a KNX net (for example light switches, actuators ).
The HD67815 is a Modbus TCP Slave / KNX Converter and it allows you to connect a Modbus TCP Master net (for example a PLC, a SCADA System ) with a KNX net (for example light switches, actuators ) in order to exchange the informations between the networks.
This converters are very easy to configure and allows you to interface a Modbus TCP system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.
Modbus TCP / KNX series

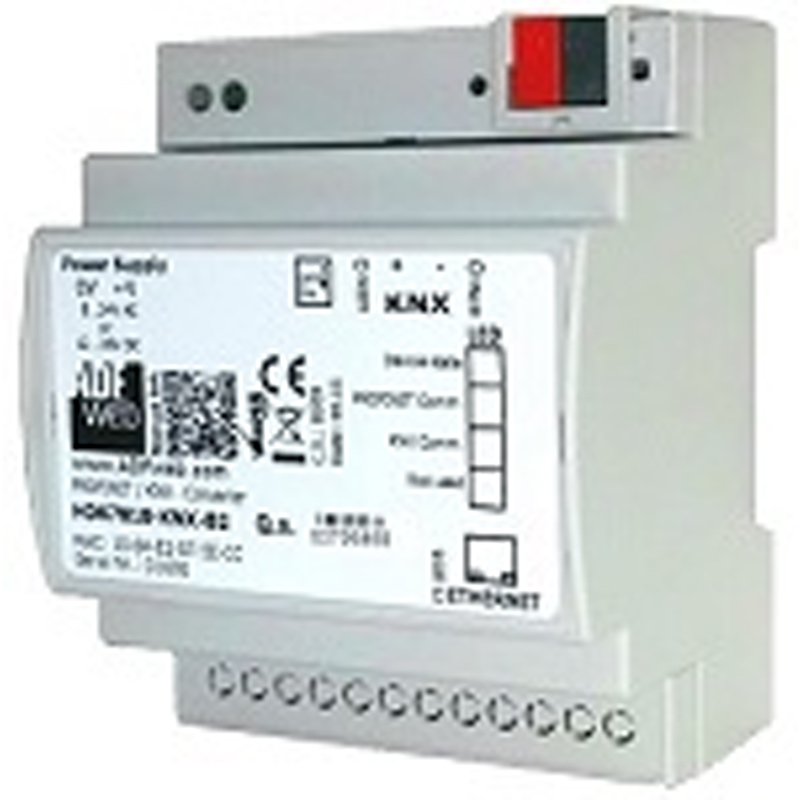

HD67814-KNX-B2
Modbus TCP Master / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus TCP Protocol | Modbus TCP Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| 200g approx | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67814 | |
HD67815-KNX-B2
Modbus TCP slave/ KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus TCP Protocol | Modbus TCP slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67815 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
