M-Bus to BACnet
Part No.: MPADFW-M-Bus-to-BACnet

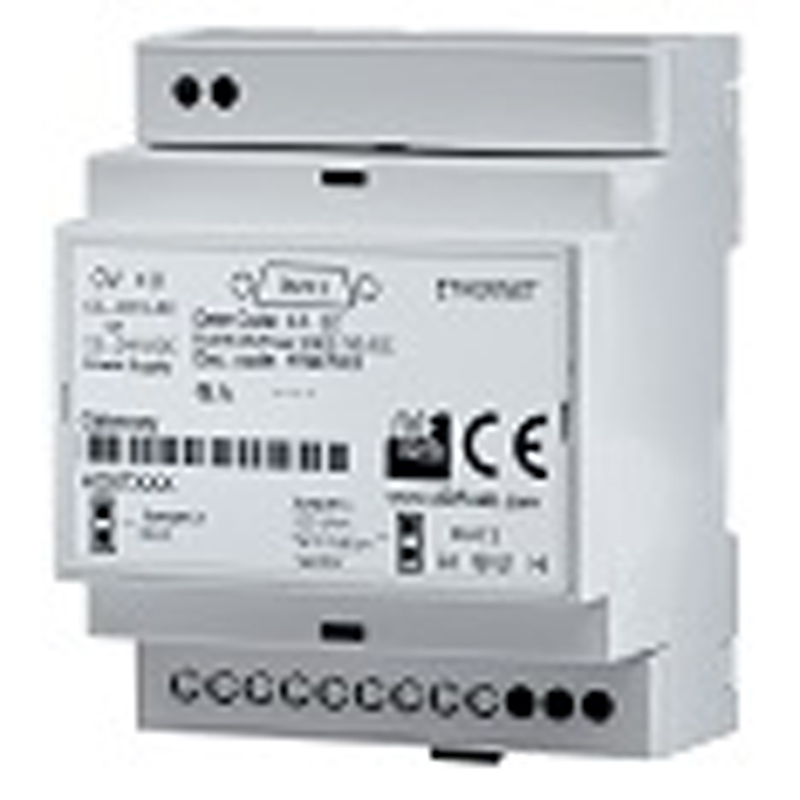

The HD67056-B2-xxx are M-Bus / BACnet converters.
產品介紹
BACnet / M-Bus - Converter
The HD67056-B2-xxx are M-Bus / BACnet converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a BACnet net (like a Supervisory System exc).
On M-Bus side, the HD67056-B2 can manage up to 250 meters.
HD67056-B2 supports both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67056-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
The HD67694-IP-B2-xxx are M-Bus / BACnet converters.
These devices are specifically built for communicate with M-Bus heating controllers like Siemens RVD series, AMARC AVD500 and many others. To the converter is possible to connect also normal meters.
Series M-Bus Master / BACnet Ethernet Converter
HD67056-B2-20
BACnet Ethernet / M-Bus - Converter (BACnet Protocols:BACnet Ethernet, BACnet IP - Master M-bus: up to 20 slaves)
| Ports | 1xM-Bus; 1xBACnet | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-B2-40
BACnet Ethernet / M-Bus - Converter (BACnet Protocols:BACnet Ethernet, BACnet IP - Master M-bus: up to 40 slaves)
| Ports | 1xM-Bus; 1xBACnet | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-B2-80
BACnet Ethernet / M-Bus - Converter (BACnet Protocols:BACnet Ethernet, BACnet IP - Master M-bus: up to 80 slaves)
| Ports | 1xM-Bus; 1xBACnet | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-B2-160
BACnet Ethernet / M-Bus - Converter (BACnet Protocols:BACnet Ethernet, BACnet IP - Master M-bus: up to 160 slaves)
| Ports | 1xM-Bus; 1xBACnet | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-B2-250
BACnet Ethernet / M-Bus - Converter (BACnet Protocols:BACnet Ethernet, BACnet IP - Master M-bus: up to 250 slaves)
| Ports | 1xM-Bus; 1xBACnet | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
Series M-Bus Master / BACnet MSTP Converter
HD67056-MSTP-20
M-Bus / BACnet MSTP Converter (BACnet Protocols: BACnet MS/TP (RS485)- Master M-bus: up to 20 slaves - BACnet Port: RS485 )
| Ports | 1xM-Bus; 1xBACNet MS/TP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACNet MS/TP | Up to 115200 bps | |
| BACNet MS/TP Connector | 3way 5mm fixed screw terminal | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-MSTP-40
M-Bus / BACnet MSTP Converter (BACnet Protocols: BACnet MS/TP (RS485) - Master M-bus: up to 40 slaves - BACnet Port: RS485 )
| Ports | 1xM-Bus; 1xBACNet MS/TP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACNet MS/TP | Up to 115200 bps | |
| BACNet MS/TP Connector | 3way 5mm fixed screw terminal | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-MSTP-80
M-Bus / BACnet MSTP Converter (BACnet Protocols: BACnet MS/TP (RS485) - Master M-bus: up to 80 slaves - BACnet Port: RS485 )
| Ports | 1xM-Bus; 1xBACNet MS/TP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACNet MS/TP | Up to 115200 bps | |
| BACNet MS/TP Connector | 3way 5mm fixed screw terminal | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-MSTP-160
M-Bus / BACnet MSTP Converter (BACnet Protocols: BACnet MS/TP (RS485) - Master M-bus: up to 160 slaves - BACnet Port: RS485 )
| Ports | 1xM-Bus; 1xBACNet MS/TP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
|
M-Bus Connector
|
2way 5mm fixed screw terminal | |
| Data Rates BACNet MS/TP | Up to 115200 bps | |
| BACNet MS/TP Connector | 3way 5mm fixed screw terminal | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
HD67056-MSTP-250
M-Bus / BACnet MSTP Converter (BACnet Protocols: BACnet MS/TP (RS485) - Master M-bus: up to 250 slaves - BACnet Port: RS485 )
| Ports | 1xM-Bus; 1xBACNet MS/TP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACNet MS/TP | Up to 115200 bps | |
| BACNet MS/TP Connector | 3way 5mm fixed screw terminal | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67056 | |
Series BACnet IP slave / M-Bus master Converter (specific for heating controllers)
HD67694-IP-B2-1-10
BACnet IP slave / M-Bus master - Converter( Number of Heating Controllers: 1 , Maximum devices: 10 )
| Ports | 1xM-Bus master; 1xBACnet IP | |
|---|---|---|
| Number of Heating Controllers | 1 | |
| Maximum Number of Devices | 10 | |
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67694 | |
HD67694-IP-B2-3-25
BACnet IP slave / M-Bus master - Converter ( Number of Heating Controllers: 3 , Maximum devices: 25 )
| Ports | 1xM-Bus master; 1xBACnet IP | |
|---|---|---|
| Number of Heating Controllers | 3 | |
| Maximum Number of Devices | 25 | |
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67694 | |
HD67694-IP-B2-15-50
BACnet IP slave / M-Bus master - Converter ( Number of Heating Controllers: 15 , Maximum devices: 50 )
| Ports | 1xM-Bus master; 1xBACnet IP | |
|---|---|---|
| Number of Heating Controllers | 15 | |
| Maximum Number of Devices | 50 | |
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67694 | |
HD67694-IP-B2-30-75
BACnet IP slave / M-Bus master - Converter ( Number of Heating Controllers: 30 , Maximum devices: 75 )
| Ports | 1xM-Bus master; 1xBACnet IP | |
|---|---|---|
| Number of Heating Controllers | 30 | |
| Maximum Number of Devices | 75 | |
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67694 | |
HD67694-IP-B2-50-100
BACnet IP slave / M-Bus master - Converter ( Number of Heating Controllers: 50 , Maximum devices: 103 )
| Ports | 1xM-Bus master; 1xBACnet IP | |
|---|---|---|
| Number of Heating Controllers | 50 | |
| Maximum Number of Devices | 100 | |
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+80ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67694 | |
Accessories
| Order Code | Description |
|---|---|
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW060 | Power Supply for M-Bus Master device that supports up to 60 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
