IoT Gateway
M-Bus / MQTT - Converter

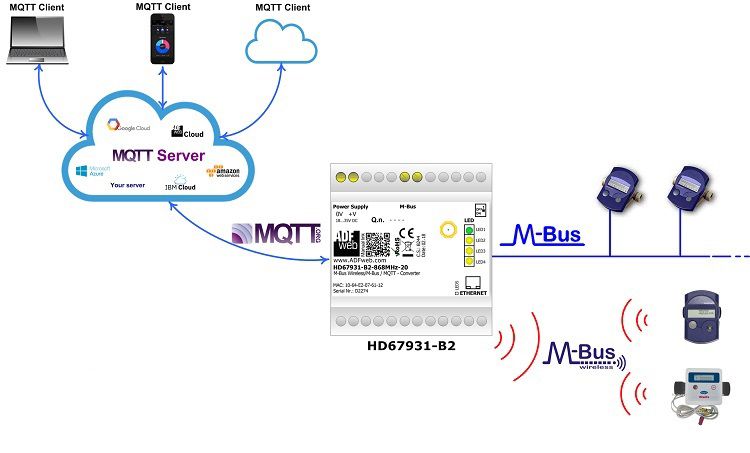

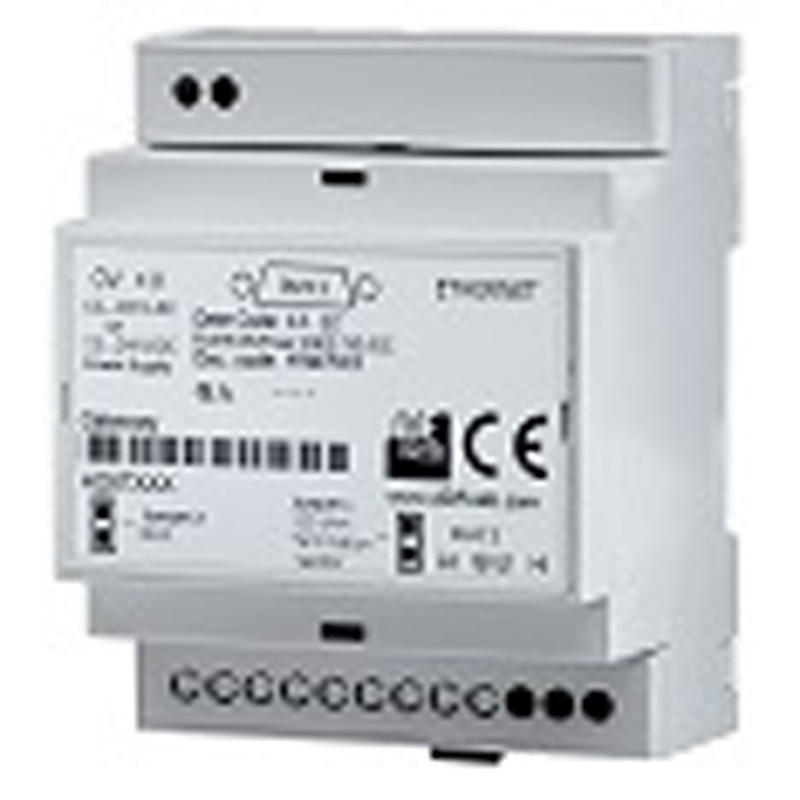

The HD67931-B2 are M-Bus / MQTT Converters.
They allow to publish the data read from M-Bus meters into a MQTT Server.
These gateways allow a fast and easy access to the IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFE communication.
They allow to monitor M-Bus meters (like SIEMENS, Kamstrup, Maddalena, Sontex, etc. meters).
On M-Bus side, the HD67931-B2 can manage up to 250 meters.
HD67931-B2-20
M-Bus Master / MQTT - Converter ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| Ethernet Protocol | MQTT | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| MQTT Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67931 | |
HD67931-B2-40
M-Bus Master / MQTT - Converter ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| Ethernet Protocol | MQTT | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| MQTT Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67931 | |
HD67931-B2-80
M-Bus Master / MQTT - Converter ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| Ethernet Protocol | MQTT | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| MQTT Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67931 | |
HD67931-B2-160
M-Bus Master / MQTT - Converter ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| Ethernet Protocol | MQTT | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| MQTT Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67931 | |
HD67931-B2-250
M-Bus Master / MQTT - Converter ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| Ethernet Protocol | MQTT | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| MQTT Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67931 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
