M-Bus to PROFINET
Part No.: MPADFW-M-Bus-to-PROFINET

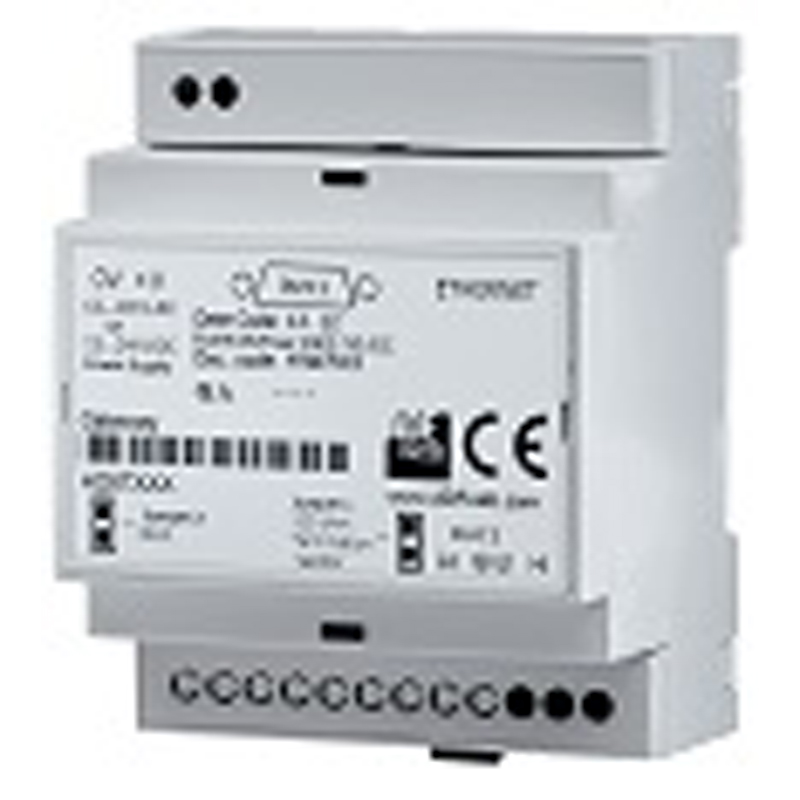

The HD67078-B2-xxx are M-Bus / PROFINET converters.
產品介紹
PROFINET / M-Bus - Converter
The HD67078-B2-xxx are M-Bus / PROFINET converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a PROFINET net (like an Allen-Bradley PLC exc).
On M-Bus side, the HD67078-B2 can manage up to 250 meters.
HD67078-B2-20
PROFINET / M-Bus - Converter ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus; 1xEthernet 10/100 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Ethernet Protocol | TCP | |
| M-Bus Connector | Terminal Block | |
| Ethernet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67078 | |
HD67078-B2-40
PROFINET / M-Bus - Converter ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xEthernet 10/100 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Ethernet Protocol | TCP | |
| M-Bus Connector | Terminal Block | |
| Ethernet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67078 | |
HD67078-B2-80
PROFINET / M-Bus - Converter ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xEthernet 10/100 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Ethernet Protocol | TCP | |
| M-Bus Connector | Terminal Block | |
| Ethernet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67078 | |
HD67078-B2-160
PROFINET / M-Bus - Converter ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xEthernet 10/100 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Ethernet Protocol | TCP | |
| M-Bus Connector | Terminal Block | |
| Ethernet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67078 | |
HD67078-B2-250
PROFINET / M-Bus - Converter ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xEthernet 10/100 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Ethernet Protocol | TCP | |
| M-Bus Connector | Terminal Block | |
| Ethernet Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67078 | |
Accessories
| Order Code | Description |
|---|---|
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
