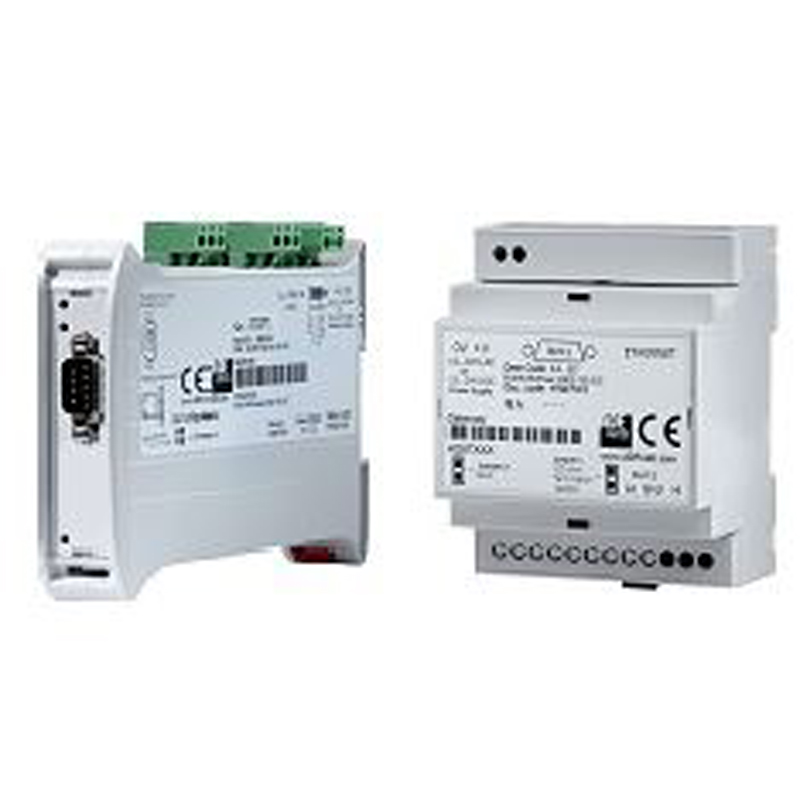

Modbus TCP to DeviceNet
Part No.: MPADFW-Modbus-TCP-to-DeviceNet
This series of products allows to integrate a DeviceNet network with a Modbus net.
產品介紹
DeviceNet / Modbus TCP - Converter
This series of products allows to integrate a DeviceNet network with a Modbus net.
The HD67139 is a DeviceNet Slave / Modbus TCP Master Converter and it allows you to connect a DeviceNet Master net (for example an ABB PLC...) with some Modbus devices.
The HD67140 is a DeviceNet Slave / Modbus TCP Slave Converter and it allows you to connect a DeviceNet Master net (for example an ABB PLC...) with a Modbus TCP Master (for example a PLC, SCADA System...).
The HD67152 is a DeviceNet Master / Modbus TCP Slave Converter and it allows you to connect some DeviceNet slaves with a Modbus TCP Master (for example a PLC, SCADA System...).
Series Modbus TCP Master from/to DeviceNet Slave
HD67139-A1
DeviceNet Slave / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power Supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67139 | |
HD67139-B2
DeviceNet Slave / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67139 | |
Series Modbus TCP Server from/to DeviceNet Slave
HD67140-A1
DeviceNet Slave / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS232; 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power Supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67140 | |
HD67140-B2
DeviceNet Slave / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232; 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67140 | |
Series Modbus TCP Server from/to DeviceNet Master
HD67152-A1
DeviceNet Master / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power Supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67152 | |
HD67152-B2
DeviceNet Master / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xDeviceNet | |
|---|---|---|
| Modbus TCP Connector | RJ45 | |
| Power supply Connector | Terminal Block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67152 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30°C / 70°C (-22°F / 158°F)
