NMEA2000 to KNX
Part No.: MPADFW-NMEA2000-to-KNX
This series of products allows to integrate a NMEA2000 network into a KNX network.
產品介紹
NMEA2000 / KNX - Converter
This series of products allows to integrate a NMEA2000 network into a KNX network.

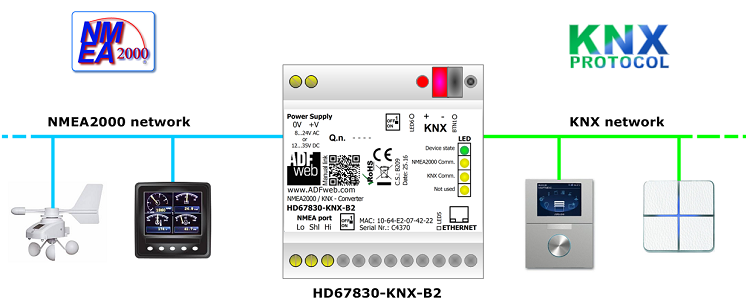

The HD67830 is a NMEA2000 / KNX - Converter so you can connect a NMEA2000 network (like engine controls, depth sensors exc...) with a KNX network (like lighting system, audio-video system exc...) in order to exchange informations between the nets.
Particularly suitable in the marine sector, this converter is the right choice to insert a management system based on KNX into boats, yachts exc...
Addressing in this way to an increasing system for the control and for the management of alarm systems, lighting, blinds and so on.
HD67830-KNX-B2
NMEA 2000 / KNX - Converter ( EHousing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xCAN | |
|---|---|---|
| KNX Protocol | KNX TP | |
| CAN Protocol | NMEA2000 | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates NMEA2000 | Up to 1 Mbps | |
| KNX Connector | KNX Bus connector | |
| NMEA2000 Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67830 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
