OPC UA to Modbus
Part No.: MPADFW-OPC-UA-to-Modbus
This series of products allows to integrate an OPC UA network with a Modbus network.
產品介紹

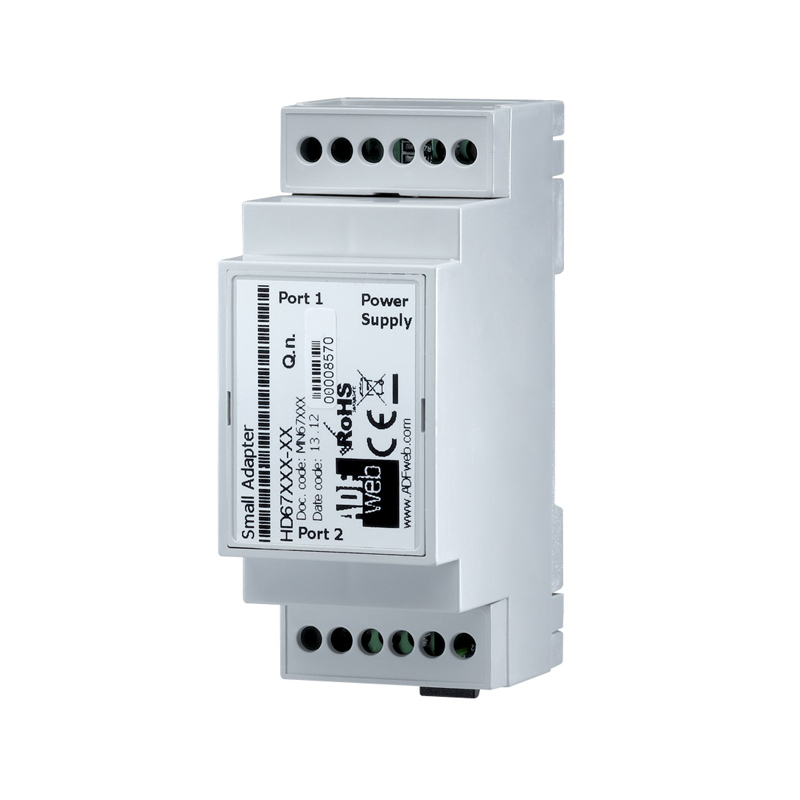

OPC UA / Modbus - Converter
This series of products allows to integrate an OPC UA network with a Modbus network.

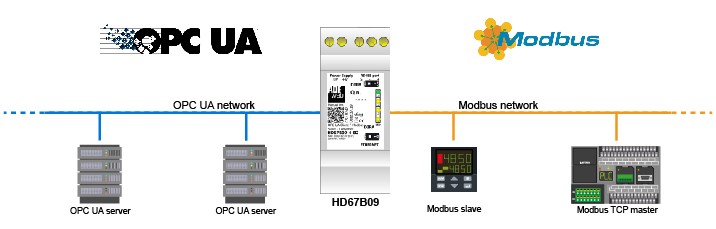

The HD67B09 is an OPC UA Client / Modbus Slave Converter and it allows you to read/write the data from one or more OPC UA Servers using a Modbus Master (like PLC, PC etc).
The HD67B27 is an OPC UA Server / Modbus Master Converter and it allows you to read/write the data from one or more Modbus slaves (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients.
The HD67B28 is an OPC UA Server / Modbus Slave Converter and it allows you to interface a Modbus Master (like a PLC, PC etc) with one or more OPC UA Clients in order to exchange the informations between the networks.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.
There are also two differnts order codes in relation of the type of serial port:
- HD67Bxx-2-B2: OPC / Modbus RS232 - Converter
- HD67Bxx-5-B2: OPC / Modbus RS485 - Converter
OPC UA Client / Modbus
HD67B09-2-B2
OPC UA Client / Modbus Slave - Converter, Port RS232 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232;1xEthernet | |
|---|---|---|
| Modbus Protocol | Modbus Slave RS232 | |
| Ethernet Protocol | OPC UA Client | |
| Data rates Modbus | Up to 115200 bps | |
| Data rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 200g approx | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B09 | |
HD67B09-5-B2
OPC UA Client / Modbus Slave - Converter, Port RS485 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| Modbus Protocol | Modbus Slave RS485 | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B09 | |
OPC UA Server / Modbus
HD67B27-2-B2
OPC UA Client / Modbus Master - Converter, Port RS232 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232;1xEthernet | |
|---|---|---|
| Serial Protocol | Modbus Master | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B27 | |
HD67B27-5-B2
OPC UA Client / Modbus Master - Converter, Port RS485 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| Serial Protocol | Modbus Master | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B27 | |
HD67B28-2-B2
OPC UA Client / Modbus Slave - Converter, Port RS232 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232;1xEthernet | |
|---|---|---|
| Modbus Protocol | Modbus Slave | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B28 | |
HD67B28-5-B2
OPC UA Client / Modbus Slave - Converter, Port RS485 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| Modbus Protocol | Modbus Slave | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40蚓/+85蚓 (-40蚌/+185蚌) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B28 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
