OPC UA to PROFINET
Part No.: MPADFW-OPC-UA-to-PROFINET
This series of products allows to integrate an OPC UA network with a PROFINET network.
產品介紹
OPC UA / PROFINET - Converter
This series of products allows to integrate an OPC UA network with a PROFINET network.

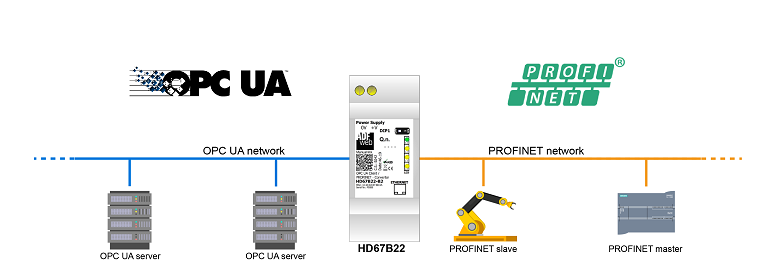

The HD67B22 is an OPC UA Client / PROFINET Converter and it allows you to read/write the data from one or more OPC UA Servers using a PROFINET Master (like a SIEMENS PLC etc).
The HD67B45 is an OPC UA Server / PROFINET Master Converter and it allows you to read/write the data from one or more PROFINET slaves (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients.
The HD67B46 is an OPC UA Server / PROFINET Converter and it allows you to interface a PROFINET Master (like a SIEMENS PLC etc) with one or more OPC UA Clients in order to exchange the informations between the networks.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.
OPC UA Client / PROFINET
HD67B22-B2

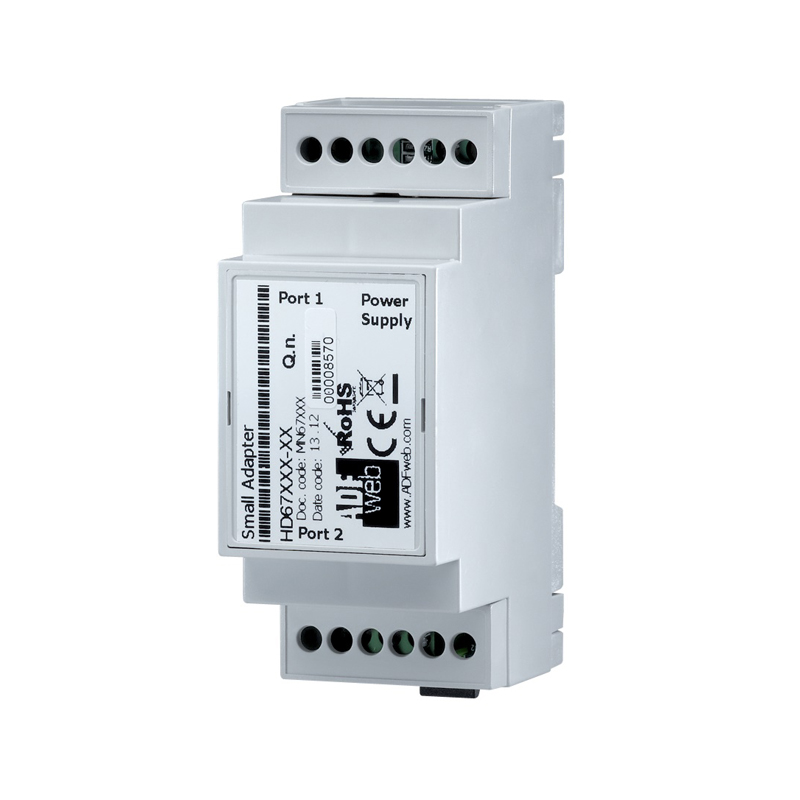

OPC UA Client / PROFINET Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Slave | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B22 | |
OPC UA Server / PROFINET
HD67B45-B2
OPC UA Server / PROFINET Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Master | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
|
Mechanical Fixing
|
DIN Rail montage | |
| SOFTWARE | SW67B45 | |
HD67B46-B2
OPC UA Server / PROFINET Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Slave | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40蚓/+85蚓 (-40蚌/+185蚌) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B46 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
