SNMP / CANopen - Converter

This series of products allows to integrate a DMX network with a SNMP net.

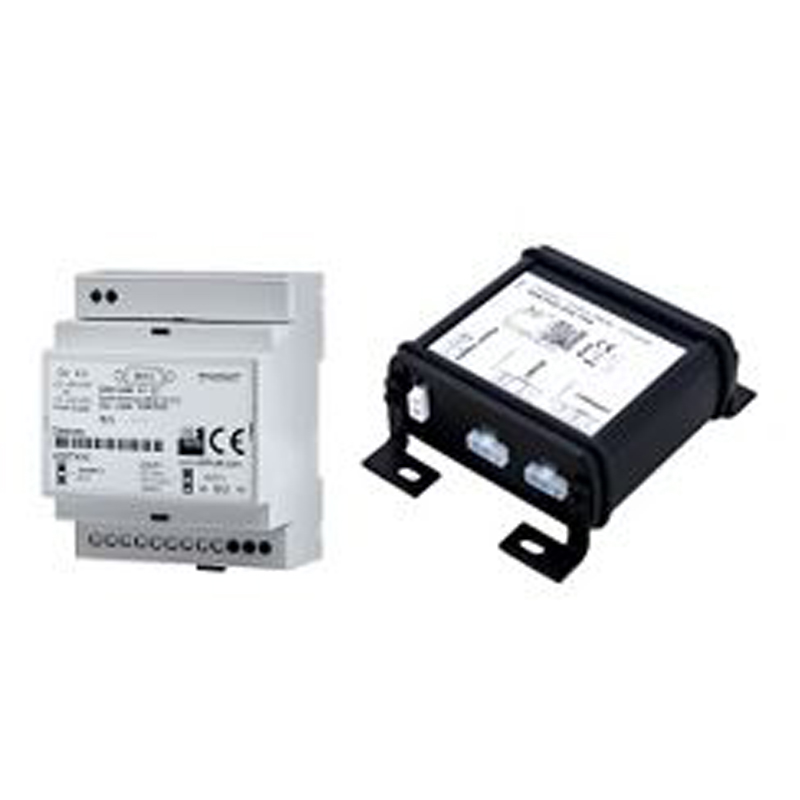

The HD67040 is a DMX / SNMP Agent Converter and it allows you to connect some DMX devices (for example a Light System...) with a SNMP Manager network (for example a PC...) in order to exchange the informations between the networks.

The HD67041 is a DMX / SNMP Manager Converter and it allows you to connect some DMX devices (for example a Light System...) with some SNMP Agents.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD674-A029 - DMX / SNMP Agent, STRONG Converter
• HD674-A033 - DMX / SNMP Manager, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between SNMP/CAN - SNMP/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.

DMX / SNMP Agent series

HD67040-B2

DMX / SNMP Agent Converter ( Housing type: B, Fixed Terminal Blocks )




DMX /SNMP Agent - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between DMX / SNMP – DMX / Power Supply – SNMP / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.

HD674-A029-E4V

DMX /SNMP Agent - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67-A029-E4R

DMX / SNMP Agent - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD674-A029-E7V

DMX /SNMP Agent - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )




HD674-A029-E7R

DMX /SNMP Agent - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

DMX / SNMP Manager series

HD67041-B2

DMX / SNMP Manager Converter ( Housing type: B, Fixed Terminal Blocks )

DMX /SNMP Manager - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between DMX / SNMP – DMX / Power Supply – SNMP / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.

HD674-A033-E4V

DMX /SNMP Manager - Converter( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A033-E4R

DMX /SNMP Manager - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD674-A033-E7V

DMX /SNMP Manager - Converter( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A033-E7R

DMX /SNMP Manager - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
