SNMP / HART - Converter
The HD67913-A1 are SNMP / HART converters.
They allow to monitor HART devices (like Sensors, etc..) with a SNMP net (like a PC, Supervisory System etc..).
On the HART side, the HD67913-A1 can manage up to 15 deivces (+1 Secondary Master).
HD67913-A1 supports HART FSK.
HD67913-A1 can be used like Primary HART Master or like Secondary HART Master.
SNMP / HART

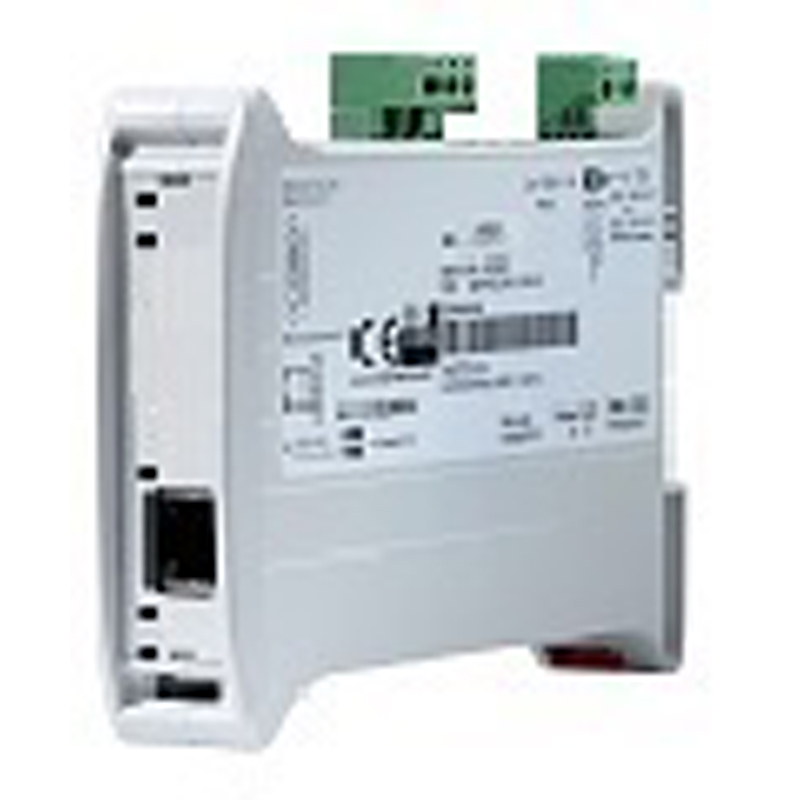

HD67913-A1
SNMP Slave / HART Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xHART | |
|---|---|---|
| Ethernet Protocol | SNMP Slave | |
| HART Protocol | HART FSK Master + 4..20mA Analog Input | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data rates HART | 1200bps | |
| SNMP Connector | RJ45 | |
| HART Connector | 2way 5mm terminal block | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| HART Power Supply | Additional power supply 24 V DC for HART devices | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67913 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
