SNMP to PROFIBUS
Part No.: MPADFW-SNMP-to-PROFIBUS
This series of products allows to integrate a PROFIBUS network with a SNMP net.
產品介紹

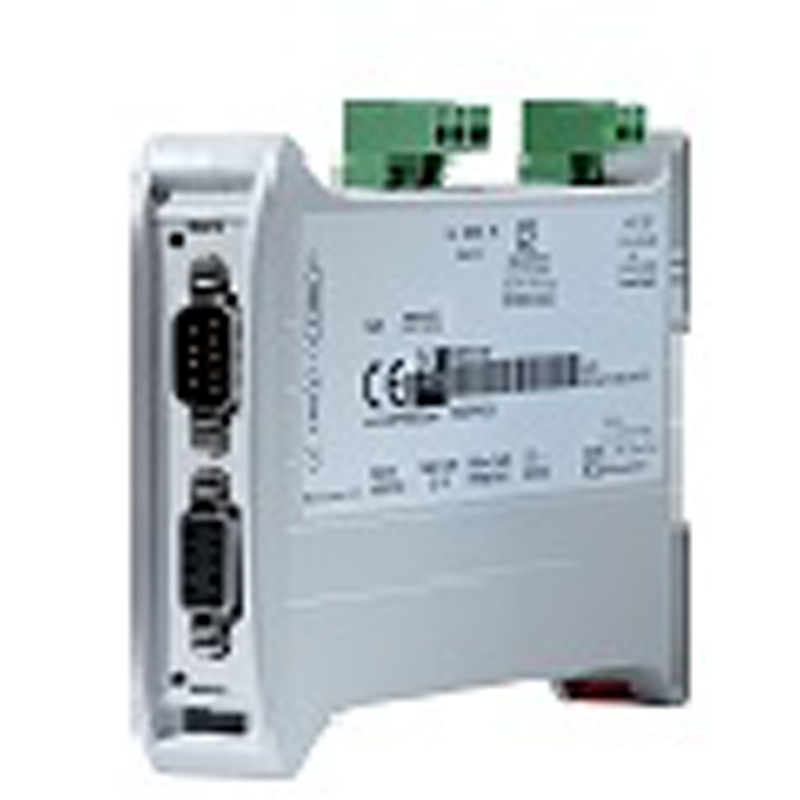

PROFIBUS / SNMP - Converter
This series of products allows to integrate a PROFIBUS network with a SNMP net.
The HD67168 is a PROFIBUS Master / SNMP Agent Converter and it allows you to connect some PROFIBUS devices (for example encoders,sensors...) with a SNMP Manager net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.
The HD67169 is a PROFIBUS Slave / SNMP Agent Converter and it allows you to connect a PROFIBUS Master net (for examplea SIEMENS PLC...) with a SNMP Manager net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.
The HD67177 is a PROFIBUS Slave / SNMP Manager Converter and it allows you to connect a PROFIBUS Master net (for examplea SIEMENS PLC...) with some SNMP Agent devices.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch and extend the line.
Series PROFIBUS / SNMP Agent
HD67168-A1
PROFIBUS Master / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS;2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Master | |
| SNMP Protocol | SNMP Agent | |
| PROFIBUS Connector | D-sub connector, type DE-9 Female | |
| SNMP Connector | RJ45 | |
| Data Rates PROFIBUS | Up to 6 Mbit/s | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67168 | |
HD67169-A1
PROFIBUS Slave / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS;2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| SNMP Protocol | SNMP Agent | |
| PROFIBUS Connector | D-sub connector, type DE-9 Female | |
| SNMP Connector | RJ45 | |
| Data Rates PROFIBUS | Up to 6 Mbit/s | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67169 | |
Series PROFIBUS / SNMP Manager
HD67177-A1
PROFIBUS Slave / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS;2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| SNMP Protocol | SNMP Manager | |
| PROFIBUS Connector | D-sub connector, type DE-9 Female | |
| SNMP Connector | RJ45 | |
| Data Rates PROFIBUS | Up to 6 Mbit/s | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67177 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
