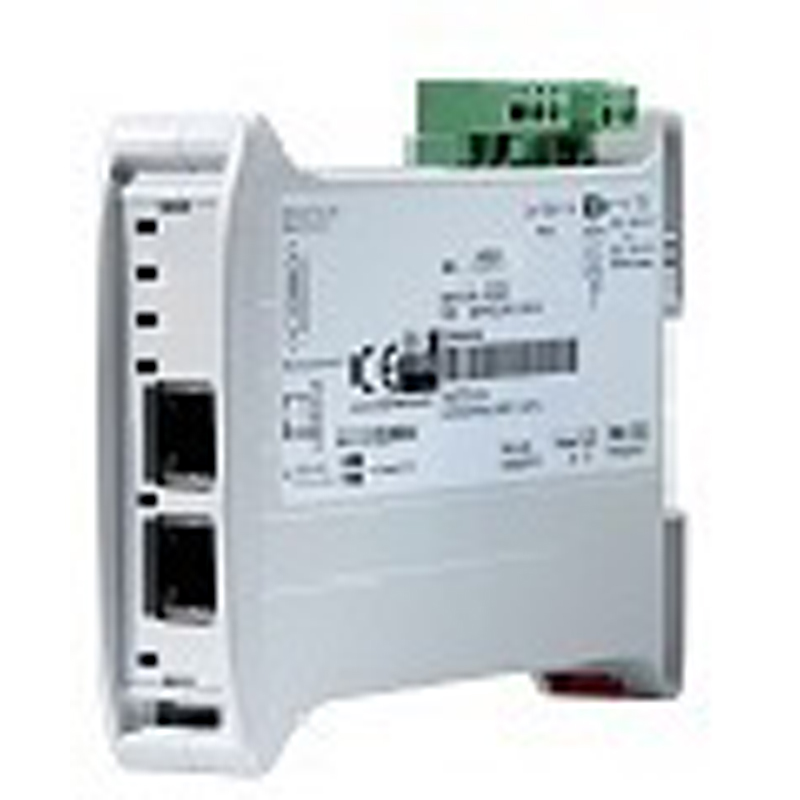

SNMP to PROFINET
Part No.: MPADFW-SNMP-to-PROFINET
This series of products allows to integrate a PROFINET network with a SNMP net.
產品介紹
PROFINET / SNMP - Converter
This series of products allows to integrate a PROFINET network with a SNMP net.

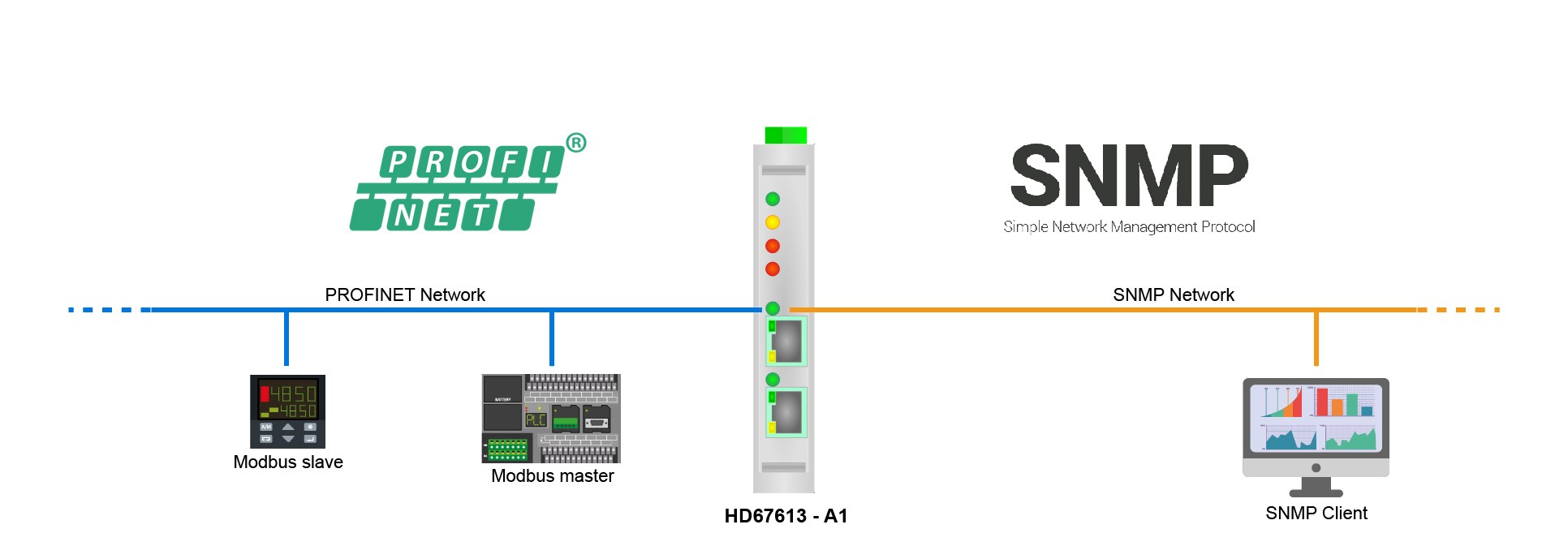

The HD67613 is a PROFINET / SNMP Agent Converter and it allows you to connect a PROFINET network (for example a SIEMENS PLC…) with a SNMP Manager net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.

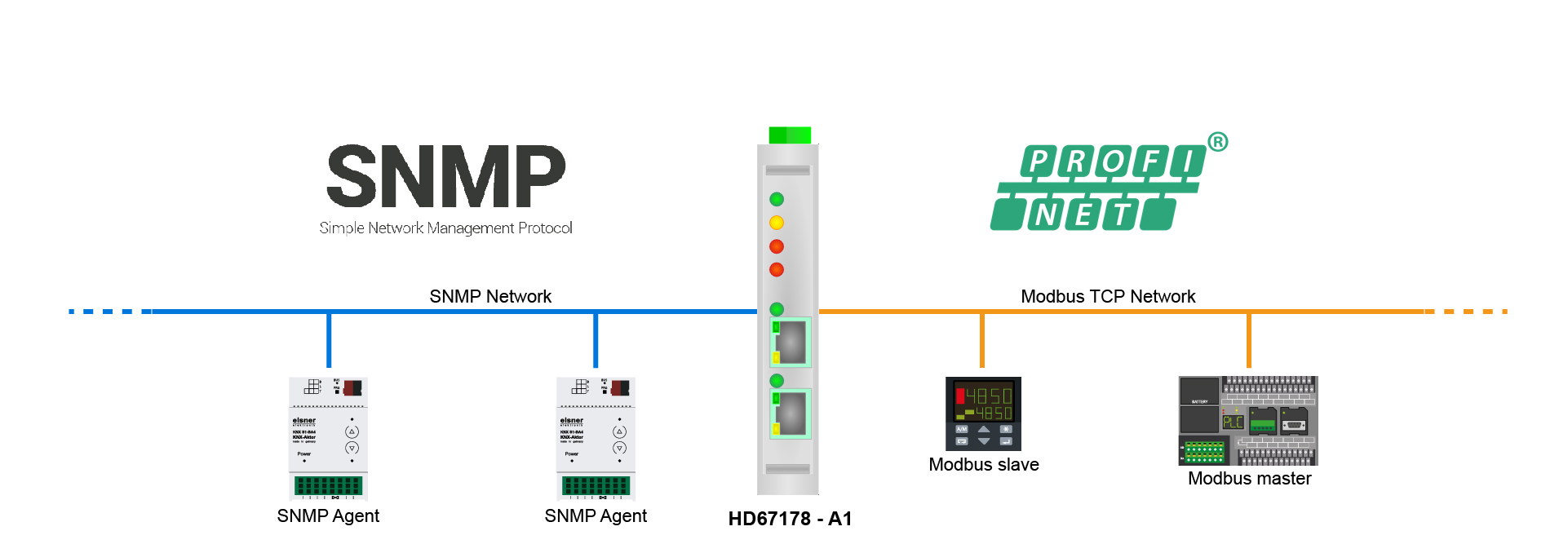

The HD67178 is a PROFINET / SNMP Manager Converter and it allows you to connect a PROFINET network (for example a SIEMENS PLC…) with some SNMP Agent devices (for example inverters, UPS...) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch and extend the PROFINET line.
HD67613-A1
PROFINET / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET slave | |
| SNMP Protocol | SNMP Agent | |
| PROFINET Connector | RJ45 | |
| SNMP Connector | RJ45 | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67613 | |
HD67B77-A1
PROFINET Master/ SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Master | |
| SNMP Protocol | SNMP Agent | |
| PROFINET Connector | RJ45 | |
| SNMP Connector | RJ45 | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67B77 | |
HD67178-A1
PROFINET / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET slave | |
| SNMP Protocol | SNMP Manager | |
| PROFINET Connector | RJ45 | |
| SNMP Connector | RJ45 | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates SNMP | 10/100 MHz Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail mountage | |
| Software | SW67178 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
