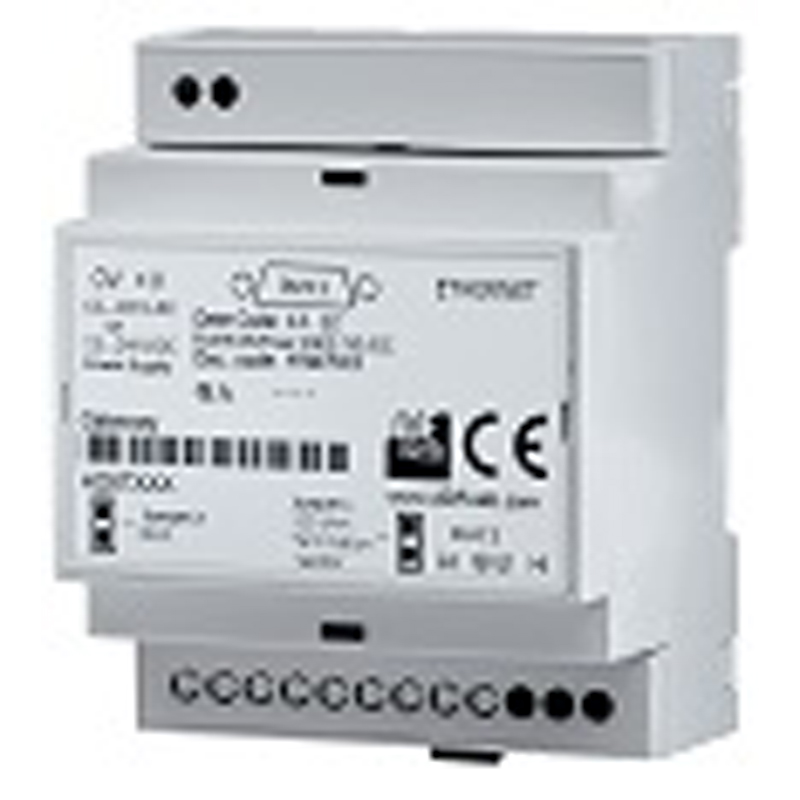

Splitters Modbus: Datalogger Modbus
Part No.: MPADFW-Splitters-Modbus-Datalogger-Modbus
The Datalogger Modbus series HD67324-B2 is used for recording data in a line Modbus, up to 2GB.
產品介紹
Datalogger Modbus and Datalogger CAN
The Datalogger Modbus series HD67324-B2 is used for recording data in a line Modbus, up to 2GB.
The datalogger is operating in stand-alone , can be connected to Master Modbus , or in the Modbus Slave , via a RS485 or RS232.
The data acquired from the device can be downloaded through a USB port .
Benefits:
- Low Cost
- Standard RS485 up to 115K bps ready for the Modbus RTU protocol
- List of configurable variables to save
- Configurable a lot of scan times for the variables
- Master or Slave Modbus RTU
- Easy setup with included software
- DIN rail mounting
- Wide range of input power
- Galvanic isolation
- Designed for industrial use
- Industrial Temperature Range
- Memory up to 2GB
- Download by USB
Datalogger Modbus over RS232/485; Download port: Ethernet
HD67324-B2-E-232-4GB
Modbus Master/Slave - Datalogger ( Download port: Ethernet, Modbus port: RS232, Memory: 4GByte )
| Ports | 1xEthernet; 1xRS232 | |
|---|---|---|
| Data Rates ModBus | Up to 115200 bps | |
| Memory Dimension | 4GB | |
| Power Supply | 8..24V AC; 8..35V DC | |
| Operating Temperature | -20ºC/+70ºC (-4ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67324 | |
HD67324-B2-E-485-4GB
Modbus Master/Slave - Datalogger ( Download port: Ethernet, Modbus port: RS485, Memory: 4GByte )
| Ports | 1xEthernet; 1xRS485 | |
|---|---|---|
| Data Rates ModBus | Up to 115200 bps | |
| Memory Dimension | 4GB | |
| Power Supply | 8..24V AC; 8..35V DC | |
| Operating Temperature | -20ºC/+70ºC (-4ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67324 | |
Datalogger CAN; Download port: Ethenrnet
HD67324-B2-E-CAN-4GB
CAN Datalogger ( Download port: Ethernet, Memory: 4Gbyte )
| Ports | 1xEthernet; 1xCAN | |
|---|---|---|
| Data Rates CAN | Up to 1Mbps | |
| Memory Dimension | 4GB | |
| Power Supply | 8..24V AC; 8..35V DC | |
| Operating Temperature | -20ºC/+70ºC (-4ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67324 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
