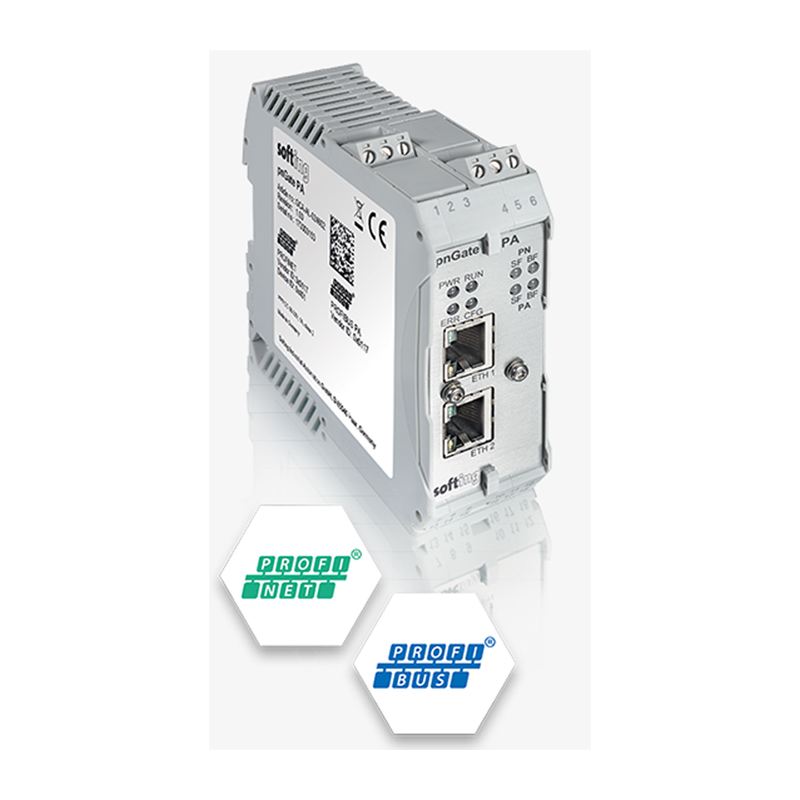

PROFINET to PROFIBUS PA Master Gateway

Direct PROFIBUS PA Segment Integration into PROFINET Control Systems

With pnGate PA it is possible to integrate up to 4 PROFIBUS PA segments into PROFINET systems using virtual mapping. With pnGate PA the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It provides S2 redundancy and enables configuration, parameterization and plant asset management using standard industry tools.

Similar solutions:

pnGate PB: Integrate PROFIBUS PA/DP segments into PROFINET systems

pnGate DP: Integrate PROFIBUS DP segments into PROFINET system


Overview

Key Component for Transition to State-of-the-Art Technology

• Simple replacement of installed PROFIBUS DP/PA segment couplers
• Re-use of existing PROFIBUS PA segments without requiring modification
• Support of MRP and S2 PROFINET redundancy for increased reliability

Direct Connectivity to PROFIBUS Segments

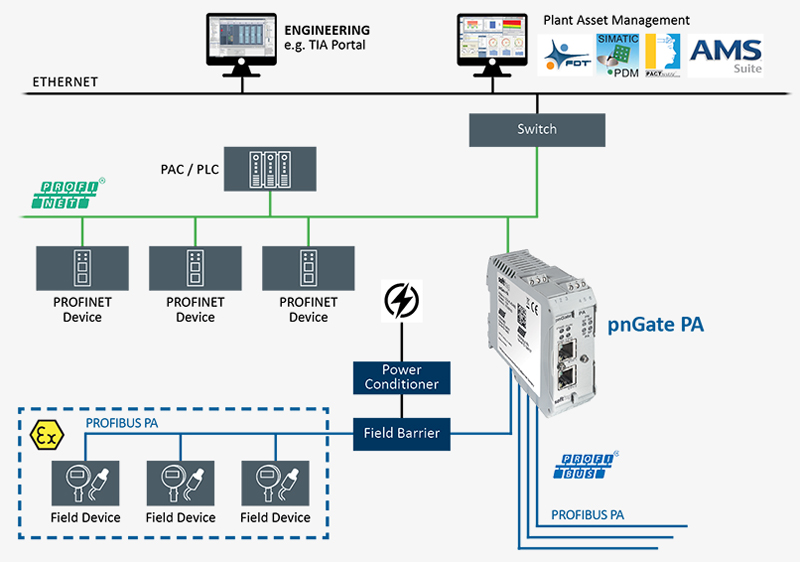

• Acting as PROFINET Device and PROFIBUS PA Master
• Support of up to 4 PROFIBUS PA segments

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

• Supports major PROFINET engineering tools such as TIA Portal, Step7 and PC WORXS
• Included CommDTM allowing use in FDT/DTM frame applications
• EDD-based device parametrization using Siemens Simatic PDM

Order Information

Scope of Delivery

• Hardware: pnGate PA Gateway
• Documentation: On Website

Order Numbers

• GCA-AL-024602: pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PA devices).
• GCA-AL-024604: pnGate PA, PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices).
• GCA-AL-024605: pnGate PA (for STAHL carrier), PROFINET to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices). For reversed mounting position on STAHL backplane.

Additional Products and Services

• LRL-DY-134501: dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access or any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers,OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge
• GCA-AN-024608: pnGate PB, PROFINET to PROFIBUS Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).

Fieldbus Infrastructure

• Installation solutions: When using the high-power trunk topology or FISCO, we offer in cooperation with R.Stahl, fieldbus infrastructure components with PROFIBUS PA and FOUNDATION fieldbus H1 – this ranges from power supply, physical layer diagnostics and field device couplers to termination resistors.
