Safe Handling of High-Voltage Systems
In this training system the focus is on safety when working with high-voltage electric vehicles and the dangers of electric current passing through the human body. What sort of current can flow through a body in the event of a fault? What is the meaning of "single fault tolerance"? How does one protect oneself? All these questions and countless others are answered by this course.
List of Articles

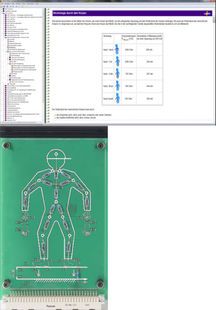

UniTrain: Safe Handling of HV Systems
The "Safe handling of high-voltage systems" training system focuses on occupational safety in the presence of high-voltage electric vehicles and safe handling of a charging station.
Includes
-
Experiment card with experiment circuit in Euro format
-
Labsoft browser, course software and additional virtual instruments
-
Storage case
-
Measuring accessories
Components on experiment card:
-
Electronic circuit for demonstrating the intrinsic resistance of a human being
-
Gloves for electrical safety
-
Insulating mat
-
Absolute earth potential
-
Measuring sockets for measuring resistance between hands
-
Measuring sockets for measuring resistance between hands and one foot
-
Measuring sockets for measuring resistance between hands and both feet
-
Measuring sockets for measuring resistance between hands and chest
-
Measuring sockets for measuring resistance between chest and one foot
-
Measuring sockets for measuring resistance between chest and both feet
Training contents
-
Safety fundamentals for handling high-voltage electric vehicles
-
Creating repair shop job orders
-
Diagnostic functions
-
Investigation by means of measurements
-
Effects of practical faults (faults can be switched on or off)
-
Course duration 7 hours approx.
Operating voltage:
Dimensions/weight:
-
100 x 170 mm (width x height)
-
0.8 kg
Additionally Required

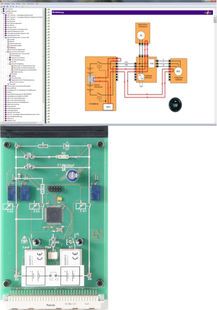

UniTrain: Battery Disconnect Unit in Hybrid and all Electric Vehicles
High-voltage battery disconnect unit (BDU)
The battery disconnect unit training system allows the design and operating principle for disconnecting a high-voltage battery from the on-board network to be investigated.
Includes
-
Experiment card with circuitry for experiments in Eurocard format
-
Labsoft browser, course software and additional virtual instruments
-
Storage case
-
Jumpers
Components on experiment card:
-
Electronic circuit for battery disconnect unit (BDU)
-
Measuring sockets
-
Fault simulation circuitry
-
Two battery blocks
-
Three relays
-
Microcontroller-based control
-
Service and maintenance plug
-
Ignition switch
-
Lamp to indicate when ignition is on
-
High-voltage fault switch
-
High-voltage fault indicator
-
Pilot disconnecting bridge
-
DC-link circuit capacitor
-
Load for on-board network
-
Display of on-board network load
-
Measurement sockets for battery blocks
-
Measurement sockets for on-board network
Training contents
-
Fundamentals of battery disconnect units
-
Compiling repair shop orders
-
Diagnostic functions
-
Reading out fault memory with a diagnostic tester
-
Classifying faults in vehicle systems
-
Function and design of a pilot line
-
Design of electric circuit
-
Principle of operation
-
Control
-
Circuit variants
-
Repair methods and conversations with customers
-
Selection of repair actions as specified by manufacturers
-
Working with spare part numbers
-
Investigation using measuring instruments
-
Effect of faults commonly seen in practice (simulated faults can be activated)
-
Course duration 7 hours approx.
Dimensions/weight:
-
100 x 170 mm (width x height)
-
0.8 kg
Multi13S Digital Multimeter
Universal precision lab multimeter and temperature meter with IR interface for high-quality, universal measurement and testing in educational settings, power plants, process control installations etc.
-
3¾-digit multimeter; resolution: ±3,100 digits
-
Measurement classification CATII-1000 V
-
Can be connected to UniTrain system via IR interface
-
Voltage and current measuring ranges: 30 mV-1000 V DC, 3 V-1000 V AC; 3 mA-16 A DC; 30 mA-10 A AC
-
Resistance ranges: 30 ohm-30 Mohm
-
Special functions: °C for temperature measurements using PT100/1000 thermocouple (optional accessory)
-
Continuity and diode testing
-
Automatic range selection and battery shut-off, min./max. and data hold function
-
Safety fuse for current measurement range up to 300 mA
-
Protection against high currents in the mA range for nominal voltage of 1000 V
-
Display with bar chart and backlighting
-
Includes protective sleeve, measuring leads, 1 x spare fuse, 9V battery, calibration certificate
