F1003 Gsm Modem

• Support SMS, dial-up and CSD function
• Power range: DC 5~35V
• Support standard AT command
• Support standard RS232 port
• Support APN/VPDN

Features

F1003 GSM MODEM is a kind of cellular terminal device that provides SMS and CSD function by public GSM network.

It adopts high-powered industrial cellular module and supports RS232 port that can conveniently connect one device to a cellular network, allowing you to connect to your existing serial device.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Features and Benefits

• Design for Industrial Application

1. High-powered industrial cellular module
2. Housing: iron, providing IP30 protection.
3. Power range: DC 5~35V

• Stability and Reliability

1. RS232 port: 15KV ESD protection
2. SIM/UIM port: 15KV ESD protection
3. Power port: reverse-voltage and overvoltage protection
4. Antenna port: lightning protection(optional)

• Standard and Convenience

1. Support standard RS232 port that can connect to a serial device directly
2. Provide dial-up software that can make it always online
3. Provide SMS tool software
4. Support standard AT command

• High-performance

1. Support SMS, dial-up and CSD function
2. Support APN/VPDN

Reference

Cellular Specification


Interface Type

Item	Content

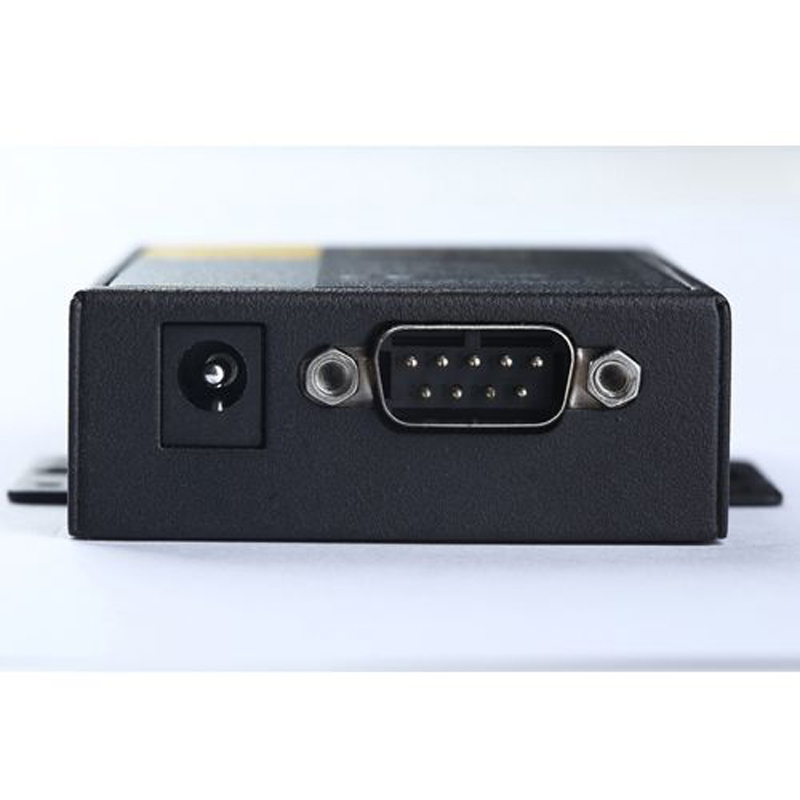

Serial	1 RS232 port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
Indicator	“Power”, “ACT”, "Online”

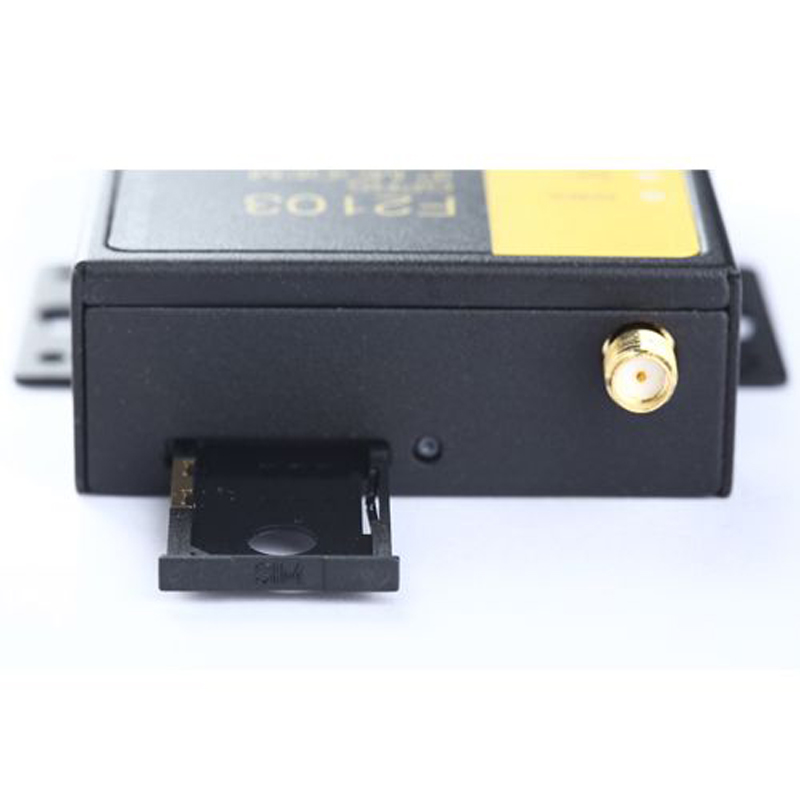

Antenna	Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and over voltage protection

Power Supply

Physical Characteristics

Environmental Limits
