Part No.: MPFF-IoT-WL-F2003

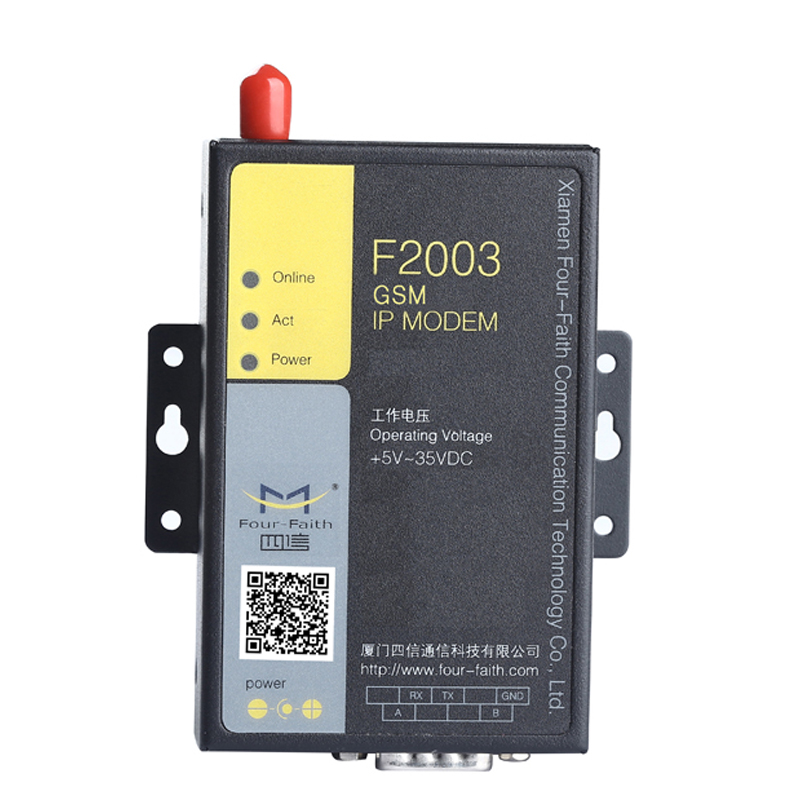

This is a F2X03 Cellular IP MODEM is a kind of cellular terminal device that provides SMS and CSD function by public network.
High performance industrial grade wireless module, and highly stable and high accuracy component
Suitable for high temperature and cold environment, Support data transparent transmission, and is suitable for any standard or nonstandard user protocol
RS232/rs485 serial port, can be connected to serial device.
5v~35v voltage, with over-voltage and over-current protection,more durable and more stable.
Support double data centers,one main and another backup.Support multi data centers and it can support 5 data centers at the same time.
Designed with standard TCP/IP protocol stack
Support hardware and software WDT.
Convenient configuration and maintenance interface
Item | Content |
---|---|
Standard and Band |
EGSM900/GSM1800MHz,
GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
|
Bandwidth | 14.4Kbps CSD |
TX power |
GSM850/900:<33dBm
GSM1800/1900:<30dBm
|
RX Sensitivity |
<-107dBm |
Item | Content |
---|---|
CPU | Industrial 16/32 bits CPU |
FLASH | 1MB(Extendable) |
SRAM | 512KB(Extendable) |
Item | Content |
---|---|
Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
|
Indicator | “Power”, “ACT”, "Online” |

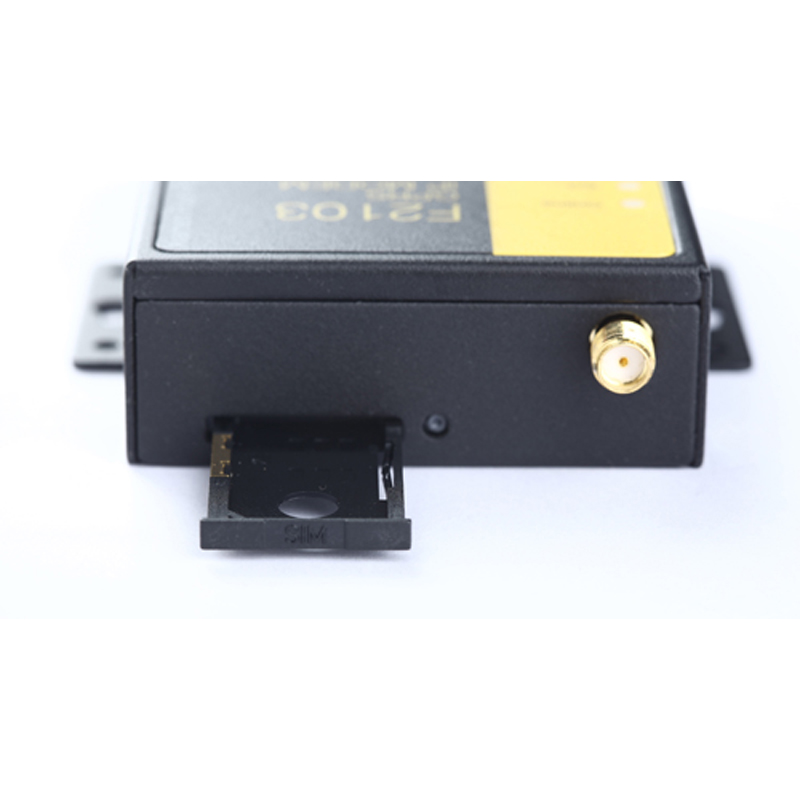

Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |
SIM/UIM | Standard user card interface, support 1.8V/3V SIM/UIM card,15KV ESD protection built-in |

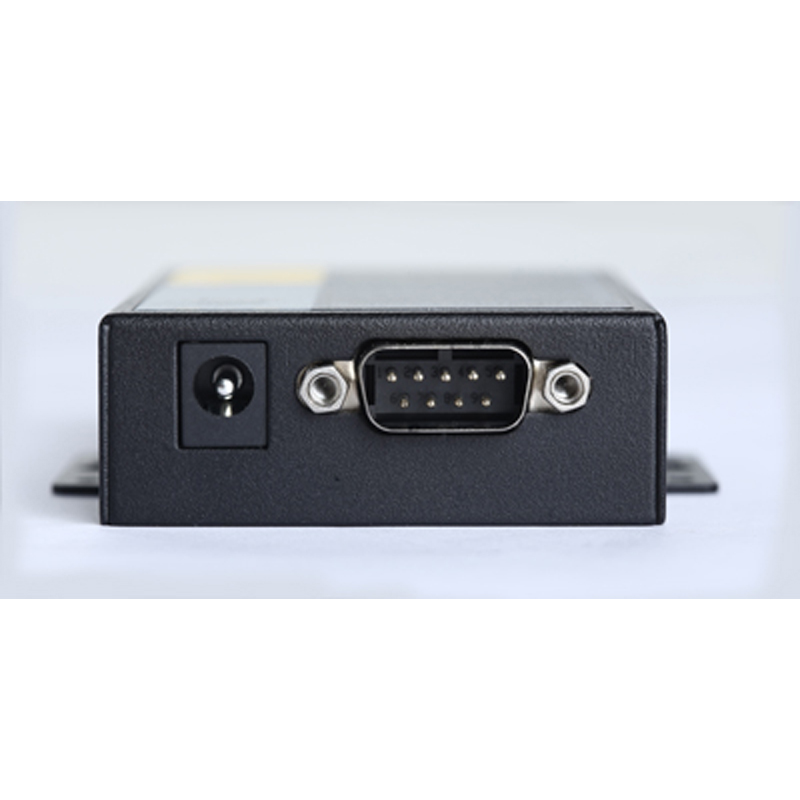

Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
Item | Content |
---|---|
Standard Power | DC 12V/0.5A |
Power Range | DC 5~35V |
Consumption | <250mA (12V) |
Item | Content |
---|---|
Housing | Iron, providing IP30 protection |
Dimensions | 91x58.5x22 mm |
Weight | 205g |
Item | Content |
---|---|
Operating Temperature |
-25~+65ºC(-13~+149℉) |
Extended Operating Temperature |
-30~+75ºC(-22~+167℉) |
Storage Temperature |
-40~+85ºC(-40~+185℉) |
Operating Humidity |
95% |
