F2603
Part No.: MPFF-IoT-WL-F2603
This is a F2X03 Cellular IP MODEM is a kind of cellular terminal device that provides SMS and CSD function by public network.
產品介紹

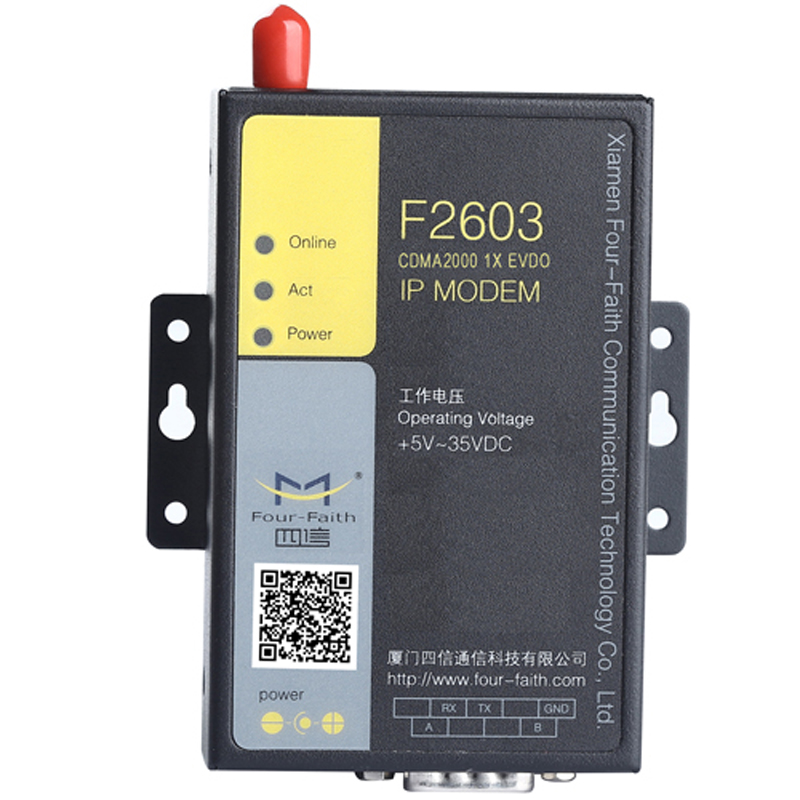

F2603 Industrial CDMA2000 1X EVDO IP Modem
- CDMA2000 1X EVDO Network
- Support APN/VPDN
- Support auto recovery mechanism
- Support multi online trigger ways, including SMS, ring and data
- Support 5 data centers at the same time
- RS232/RS485/RS422 port
- Support double data centers, one main and another backup
- Provide management software for remote management
Features
Reliable Network and Data Transparent Communication
High performance industrial grade wireless module, and highly stable and high accuracy component
Suitable for high temperature and cold environment, Support data transparent transmission, and is suitable for any standard or nonstandard user protocol
Interface
RS232/rs485 serial port, can be connected to serial device.
Wide Voltage Power Supply
5v~35v voltage, with over-voltage and over-current protection,more durable and more stable.
Multiple Data Center Synchronous Transmission
Support double data centers,one main and another backup.Support multi data centers and it can support 5 data centers at the same time.
Standard TCP/IP,
Designed with standard TCP/IP protocol stack
WDT
Support hardware and software WDT.
Provide management software for remote management
Convenient configuration and maintenance interface
Reference
F2603 EVDO IP MODEM
| Item | Content |
|---|---|
|
Standard and Band |
CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional),
450MHz(optional)
CDMA2000 1X EVDO Rev B 800/1900MHz(optional)
CDMA2000 1X RTT, IS-95 A/B
|
| Bandwidth |
EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
EVDO Rev. B: Download speed 14.7Mbps, Upload
speed 5.4Mbps (optional)
|
|
TX power |
<23dBm
|
|
RX Sensitivity |
<-104dBm |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 16/32 bits CPU |
| FLASH | 1MB(Extendable) |
| SRAM | 256KB(Extendable) |
Interface Type
| Item | Content |
|---|---|
| Serial |

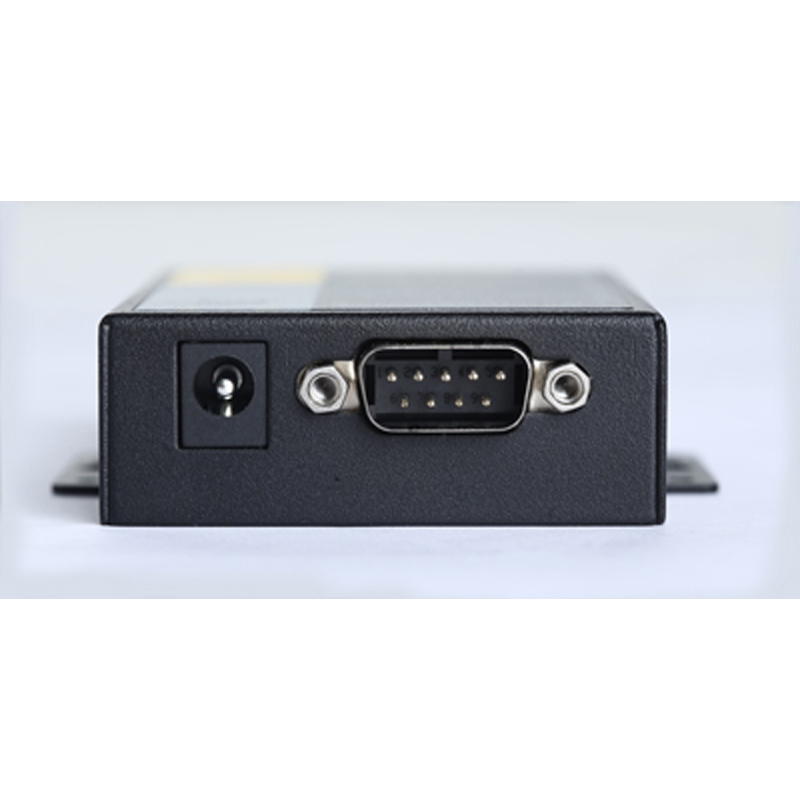

1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
|
| Indicator | “Power”, “ACT”, "Online” |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |

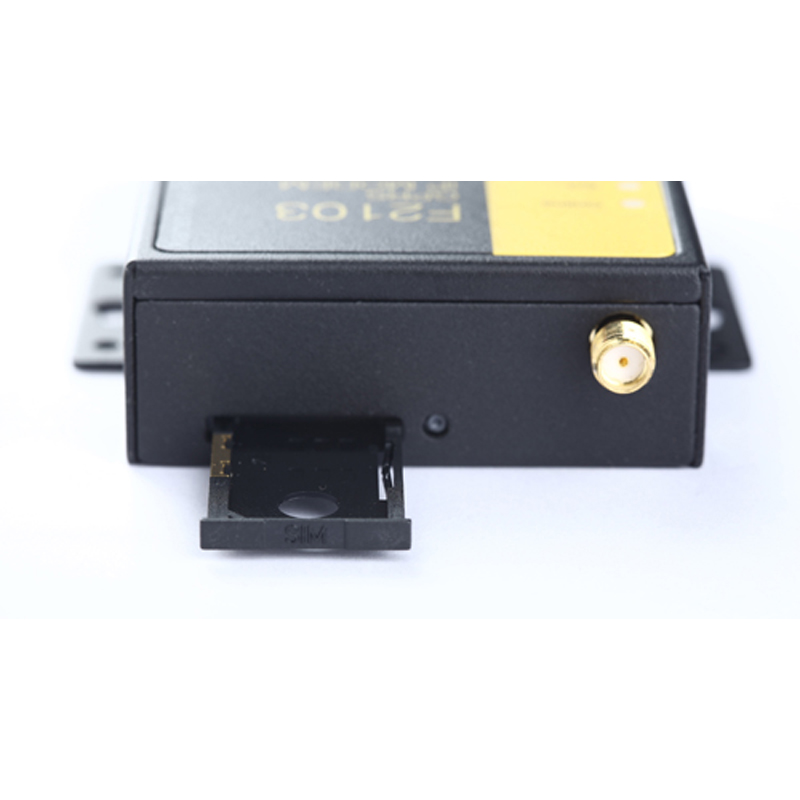

| SIM/UIM | Standard user card interface, support 1.8V/3V SIM/UIM card,15KV ESD protection built-in |
| Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
 |
|
| Note: There may be different components and interfaces in different model,please in kind prevail. | |
Power Supply
| Item | Content |
|---|---|
| Standard Power | DC 12V/0.5A |
| Power Range | DC 5~35V |
Consumption
|
Working Condition |
Consumption |
|---|---|
| Standby | 3G:40~55mA@12VDC 2G:36~40mA@12VDC |
| Communication | 3G:88~190mA@12VDC 2G:62~68mA@12VDC |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-25~+65ºC（-13~+149℉） |
|
Extended Operating Temperature |
-30~+75ºC（-22~+167℉） |
|
Storage Temperature |
-40~+85ºC（-40~+185℉） |
|
Operating Humidity |
95% |
Ordering Information
| Model No. | Description |
|---|---|
| F2103 | GPRS IP MODEM |
| F2203 | CDMA IP MODEM |
| F2403 | WCDMA IP MODEM |
| F2603 | EVDO IP MODEM |
