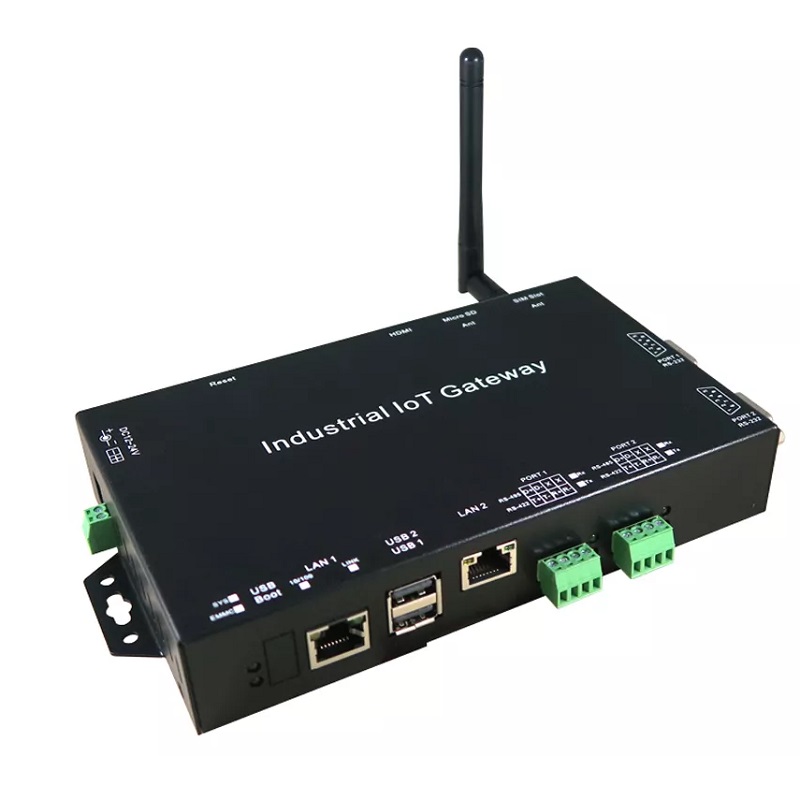

WPC-632-PICM4-AI-5G

Part No.: MP-WPC-632-PICM4-AI-5G
Programmable Controller Edge AIoT

產品介紹

Features

  • Built-in Raspberry Pi CM4
  • Wide Range Input Power (DC 9 ~ 32V)
  • Multiple I/O Interfaces
  • Powerful Computing capability
  • CPU Heatsink Transfer Heat To Metal Housing
  • M.2 key B for 5G (optional)
  • M.2 key M for PCIe SSD / AI (optional)
  • Mini-PCIe (for 4G/NB-IoT/LoRa)
* Raspberry Pi is a trademark of the Raspberry Pi Foundation.


Technical Specifications


System
  • CPU : Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits SoC @ 1.5G
  • RAM : 1 / 2 / 4 / 8 G Bytes LPDDR4 SDRAM (optional)
  • ROM : 8 / 16 / 32 G Bytes EMMC Flash Memory (optional)
  • GPU : VideoCore VI (OpenGL ES 3.0, H.265 HEVC (4Kp60fps decode), H.264(1080p60fps decode)
  • OS   : Linux OS

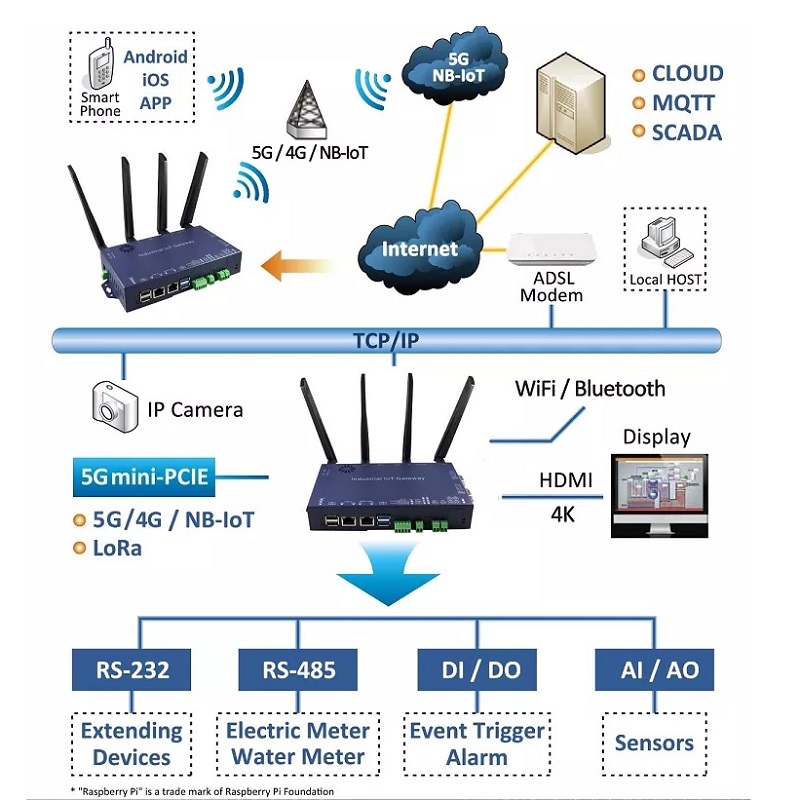

Connectivity
  • Wireless
        Bluetooth 5.0 BLE (optional)
  • 5G
        M.2 key B USB 3.0 / PCI-E for 5G (optional)
  • 4G
        Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa
        (optional)
        Nano SIM Slot for 5G / 4G / NB-IoT
  • Ethernet
        10/100/1000 Mbps Giga Lan * 1 (RJ45)
        10/100Mbps * 1 (RJ45)
        Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)
Interface
  • USB 3.0 * 2, USB 2.0 * 2I2C *1  (on PCB)
  • SPI *1  (on PCB)
  • PWM * 2 (on PCB)
  • M.2 key M for PCIe SSD (optional)
Serial Port
  • Port 1: RS-232/422/485 * 1
  • Port 2: RS-232/485        * 1
Others
  • RTC : Real Time Clock * 1 (with Battery)
  • Buzzer * 1
  • Watch Dog Timer
  • Reset Button * 1
  • MIPI CSI 2-lane * 1 (optional)
  • Fan - DC 12V (optional)
Digital Input / Digital Output
  • Digital Input * 1 Pin  (Active High / Active Low Selectable)
         Dry contact : Logic level 0 : close to GND,
                              Logic level 1 : open
         Wet contact :  Logic level 0 : 0 ~ 3 V,
                                Logic level 1 : 10 ~ 30 V
  • Digital Output * 1 Pin  (Active High / Active Low Selectable)
        Relay 120VAC @0.5A, 240VAC @0.25A, 30VDC @1A
Video Output
 Micro HDMI * 1 (4Kp60fps with audio)
Mechanical and Environment
  • Operating Temperature：-20℃〜75℃
  • Storage Temperature：-25℃〜80℃
  • Dimensions：170 * 110 * 30 mm ( W * D * H )
  • Weight：950 gm
  • Housing：metal
Power
  • PI PWR / EMMC / Serial / DI / DO
  • SYS-Customer defined / 5G / 4G
Order Information
  • WPC-632-PI CM4-B ( for M.2 KEY B )
  • WPC-632-PI CM4-M (for M.2 KEY M)
