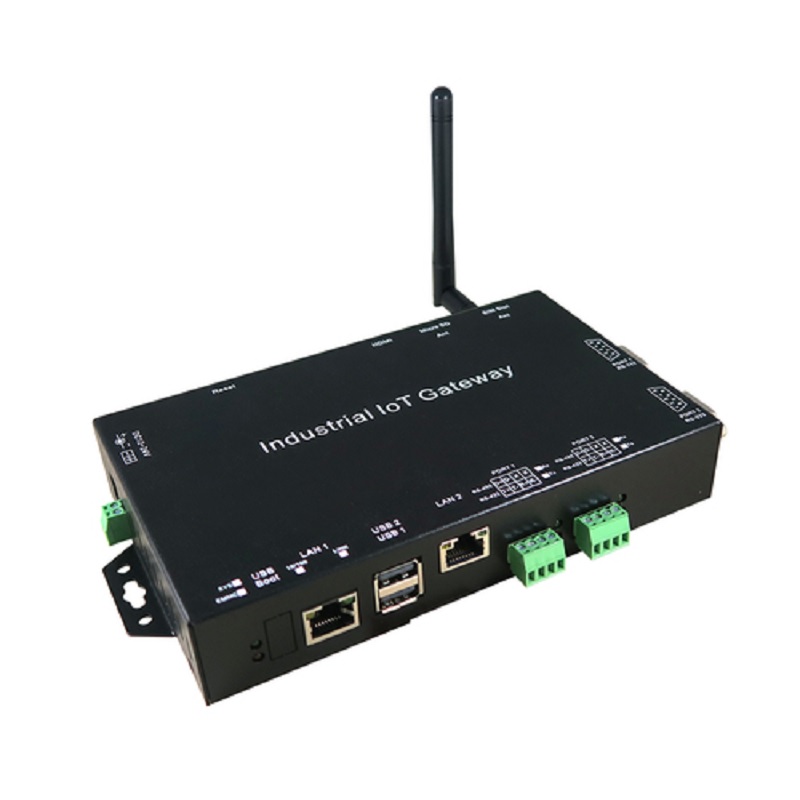

WPC-632-Pi-CM4-5G
Part No.: MP-WPC-632-Pi-CM4-5G
Programmable Controller, 5G IoT, Cellular-5G IoT
產品介紹

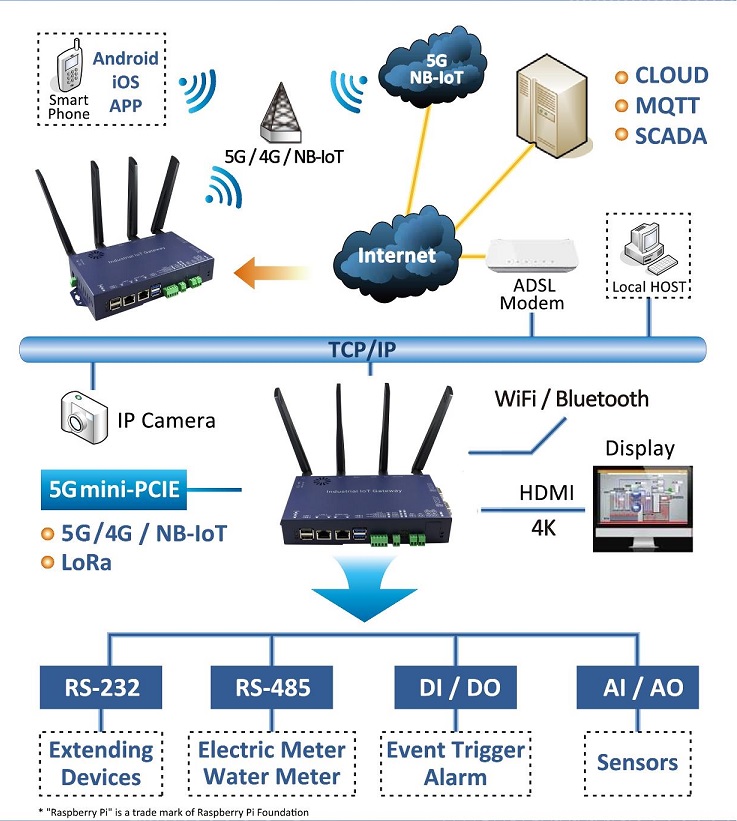

Applications
Features
- Built-in Raspberry Pi CM4
- Wide Range Input Power (DC 9 ~ 32V)
- Multiple I/O Interfaces
- Powerful Computing capability
- CPU Heatsink Transfer Heat To Metal Housing
- M.2 key B for 5G (optional)
- M.2 key M for PCIe SSD / AI (optional)
- Mini-PCIe (for 4G/NB-IoT/LoRa)
Technical Specifications
System
| CPU |
Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits Soc @ 1.5G |
|
|
RAM
|
1 / 2 / 4 / 8 G Bytes LPDDR4 SDRAM (optional)
|
|
|
ROM
|
8 / 16 / 32 G Bytes EMMC Flash Memory (optional)
|
|
|
GPU
|
VideoCore VI (OpenGL ES 3.0, H.265 HEVC (4Kp60fps decode),
H.264(1080p60fps decode) |
|
|
OS
|
Linux OS
|
|
Connectivity
| Wireless |
Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)
Bluetooth 5.0 BLE (optional)
|
|
|
5G
|
M.2 key B USB 3.0 / PCI-E for 5G (optional)
|
|
|
4G
|
Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa
(optional)
Nano SIM Slot for 5G / 4G / NB-IoT
|
|
|
Ethernet
|
10/100/1000 Mbps Giga Lan * 1 (RJ45)
10/100Mbps * 1 (RJ45)
|
|
Interface
| USB 3.0 *2, USB 2.0 *2 | ||
|
I2C *1 (on PCB)
|
||
|
SPI *1 (on PCB)
|
||
|
PWM *2 (on PCB)
|
||
|
M.2 key M for PCIe SSD (optional)
|
Serial Port
| Port 1 : RS-232/422/485 *1 | ||
|
Port 2 : RS-232/485 *1
|
Other
| RTC : Real Time Clock * 1 (with Battery) | ||
|
Buzzer * 1
|
||
|
Watch Dog Timer
|
||
|
Reset Button * 1
|
||
|
MIPI CSI 2-lane * 1 (optional)
|
||
|
Fan - DC 12V (optional)
|
Digital Input / Digital Output
|
Digital Input * 1 Pin
(Active High / Active Low Selectable)
Dry contact :
Wet contact :
|
||
|
Digital Output * 1 Pin
(Active High / Active Low Selectable) 120VAC @0.5A, 240VAC @0.25A, 30VDC @1A |
Video Output
| Micro HDMI * 1 (4Kp60fps with audio) |
Mechanical & Environment
| Operating Temperature | - 20 °C ~ 75 °C | |
|
Storage Temperature
|
- 25 °C ~ 80 °C
|
|
|
Dimensions
|
170 * 110 * 30 mm ( W * D * H )
|
|
|
Weight
|
950 gm
|
|
|
Housing
|
Metal.
|
|
Power
| DC 9~32V, 1000mA@12V (DC Jack or Terminal Input) |
LED
|
PI PWR / EMMC / Serial / DI / DO
SYS-Customer defined / 5G / 4G
|
Warranty
| Warranty period: 1 year |
Other Information
| WPC-632-PI CM4-B ( for M.2 KEY B ) | ||
|
WPC-632-PI CM4-M ( for M.2 KEY M )
|
