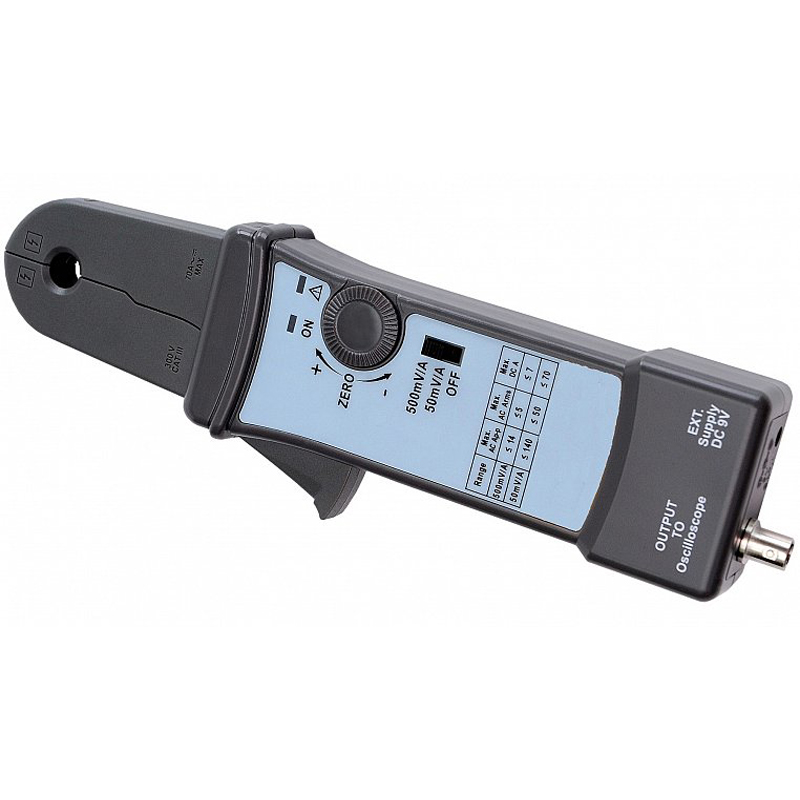

CS1060
AC/DC Current Probe
- Max. 70A DC/140Ap-p
- Sensitivity: ≧2mA
- Bandwidth: DC~1MHz
- Rise Time: 0.35μS
- Over Range Function
- 50mV/A, 500mV/A Range
- Battery or Power Adaptor (not supplied)
Specifications:
These characteristics apply to an adjusted PA-677 AC/DC Current Probe installed on an oscilloscope of any brand. The oscilloscope must be warmed up for at least 20 minutes and be in an environment with the temperature at 10к~30к and the humidity at 0~80.
| Current Ranges | 50/500 mV/A | |
|---|---|---|
| DC Accuracy, typical |
±3% ±20 mA at 500 mV/A
(20 mA to 14 A peak range)
±4% ±200 mA at 50 mV/A
(200 mA to 100 A peak range)
±15% max at 50 mV/A
(100 A peak to 140 A peak range)
|
|
| Gain versus frequency, typical | See Figure 6 | |
| Maximum Working Current | See Table 3 | |
| Maximum Working Voltage | See Table 3 | |
| Maximum Float Voltage | See Table 3 | |
| Frequency Range | DC to 1MHz (-3 dB) | |
| Rise Time | 0.35 S (Typ.) | |
| Battery Type and Life, typical |
9V NEDA 1604A, IEC 6LR61 8 hours minimum (1 each) |
|
| DC signal linearity, typical | See Figure 8 | |
| Phase shift, typical | See Figure 9 | |
