FlexCard PMC-II

Part No.: MPSC-FlexCard-PMC-II

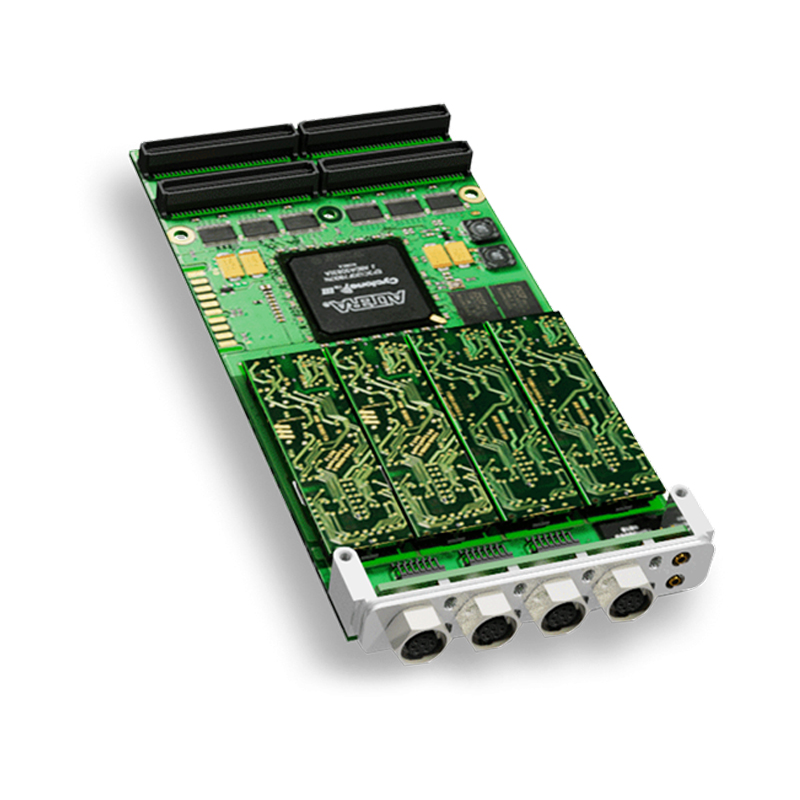

The FlexCard PMC-II is a bus interface device for automotive bus systems in PMC design.

產品介紹

Description


Product Informaiton

The FlexCard PMC-II is a bus interface device for automotive bus systems in PMC design. The card's 8 bus interfaces can be configured for different bus systems via Physical Layer (FlexTiny II) slots.


Advantages

  • 8x exchangeable bus interfaces

  • PMC interface (PCI Mezzanine Card)

  • Synchronous timestamp generation for all of the 8 bus interfaces (resolution 1 us)

  • FlexTiny II exchangeable Physical Layer slots

  • 4x Binder 712 8pol connector

  • 3,3 V and 5 V compatible PCI power supply

  • LEDs signal the state of the network

  • Trigger- 2x in/out configurable

  • Configurable bus termination

  • Analyzing software FlexAlyzerV2 included

  • Bosch E-Ray IP Core FlexRay controller

  • Bosch D_CAN IP Core CAN controller

  • Bosch M_CAN IP Core CAN FD Controller

  • MorethanIP 10/100/1000 Mbps Ethernet controller

  • V2.1 A FlexRay protocol specification

  • V2.0 A/B CAN protocol specification

  • ISO 11898-1:2015 CAN protocol specification

  • Bosch CAN FD specification 1.0

Ethernet

  • Synchronous hardware timestamps for all bus interfaces (CAN, FlexRay, Ethernet)

  • Resolution of the timestamp 1 us (32-bit)

  • FlexCard PMC-II with Ethernet will be detected as standard Ethernet interface

  • Access to the Ethernet packets by NDIS driver (raw sockets possible)

  • Special WinPcap version allows access to the hardware timestamps of the Ethernet packets

  • Access to the CAN and FlexRay packets by standard FlexCard API

  • 100BASE-TX Physical Layer and 100BASE-T1 Physical Layer available

  • External synchronization by trigger input possible

FlexRay

  • Asynchronous monitoring mode allows listening without FlexRay synchronicity

  • Combined asynchronous and synchronous monitoring mode (the procedure of a bus startup can be monitored and registered exactly)

  • Configurable TX-acknowledges

  • Network synchronicity will be reported immediately (with timestamp)

  • Chronological correlation of bus messages with one timestamp base

  • Firmware update directly at the user PC possible

  • Extensive filter configuration available

  • Significant bus error messages

  • Triggering on the precise slot and cycle

CAN / CAN FD

  • Silent mode useable for listening without bus interference

  • Transmit FIFO up to 512 messages

  • Configurable TX-acknowledges

  • Significant bus error messages

PC Interfaces

  • Native PMC (PCI Mezzanine Card) interface

  • PCI Adapter available

  • PCIe Adapter available

  • PXI Adapter available

Driver

  • Uniform FlexCard API (Same API for FlexCard PMC-II and FlexCard USB-M)

  • CPU load reduction through DMA

  • Driver Windows 32-bit (Windows XP, Vista, 7, 10)

  • Driver Windows 64-bit (Windows 7, 10)

  • Driver Xenomai 32-bit (2.5)

  • Driver Linux 64-bit (4.x)

Additional Modules

The FR/FR-Syncmodule is a special FPGA image, which allows the synchronization of two independent FlexRay networks. After the startup of the master network at slot 1, the slave network at slot 2 will be started with the defined time offset. When both networks are synchronized, the defined time offset will be held constant by a control algorithm.

  • Allows the realization of synchronized FlexRay/FlexRay gateways

  • All FlexCard API functions can be used

Physical Layer FlexTiny II

You can use the following FlexTiny2 combinations with FlexCard PMC-II


Slot 1 Slot 2 Slot 3 Slot 4
2x CAN-HS 2x CAN-HS 2x CAN-HS 2x CAN-HS
2x CAN-FD 2x CAN-FD 2x CAN-FD 2x CAN-FD
FlexRay A/B (*) 2x CAN-HS 2x CAN-HS 2x CAN-HS
FlexRay A/B (*) 2x CAN-FD 2x CAN-FD 2x CAN-FD
FlexRay A/B FlexRay A/B 2x CAN-HS 2x CAN-HS
FlexRay A/B FlexRay A/B 2x CAN-FD 2x CAN-FD
FlexRay A/B FlexRay A/B FlexRay A/B 2x CAN-HS
FlexRay A/B FlexRay A/B FlexRay A/B FlexRay A/B
100BASE-TX FlexRay A/B (*)   2x CAN-HS
100BASE-TX FlexRay A/B (*)   2x CAN-FD
100BASE-T1 FlexRay A/B (*)   2x CAN-HS
100BASE-T1 FlexRay A/B (*)   2x CAN-FD

(*) - SelfSync - Allows autonomous start of the bus without further sync nodes


Order Information FlexCard PMC-II


Product Description
FlexCard PMC-II The FlexCard PMC-II is a PMC bus interface

Order Information Accessory Parts FlexCard PMC-II


Product Description
FlexTiny2
100BASE-T1
Pluggable transceiver module with one 100BASE-T1 transceivers
(BCM89810A2AMLG, Broadcom)
FlexTiny2
100BASE-TX
 Pluggable transceiver module with one 100BASE-TX transceivers
(DP83640TVV, NSC)
FlexTiny2
FlexRay
 Pluggable transceiver module with two FlexRay transceivers
(TJA1081BTS, NXP)
FlexTiny2
CAN-FD
 Pluggable transceiver module with two CAN-FD/HS transceivers
(TJA1044GT, NXP)
FlexTiny2
CAN-HS
 Pluggable transceiver module with two CAN-HS transceivers
(TJA1041TD, NXP)
Standard Binder
Bus Cable (2 m)
 8 pole Binder male to 9 pole D-Sub female connector
Standard Binder
2x Y-bus Cable (2 m)
 8 pole Binder male to 2 x 9 pole D-Sub female connector
BASE-T1 Binder
Bus Cable (2 m)
 8 pole Binder male to 9 pole D-Sub female connector - PIN 1,2 & 4,5
BASE-T1 Binder
2x Y-bus Cable (2 m)
 8 pole Binder male to 2 x 9 pole D-Sub female connector - PIN 4,5
PMC-to-PCI-Adapter Adapter for using the FlexCard PMC II with PCI slots.
PMC-to-PCIe-Adapter Adapter for using the FlexCard PMC II with PCIe slots.
