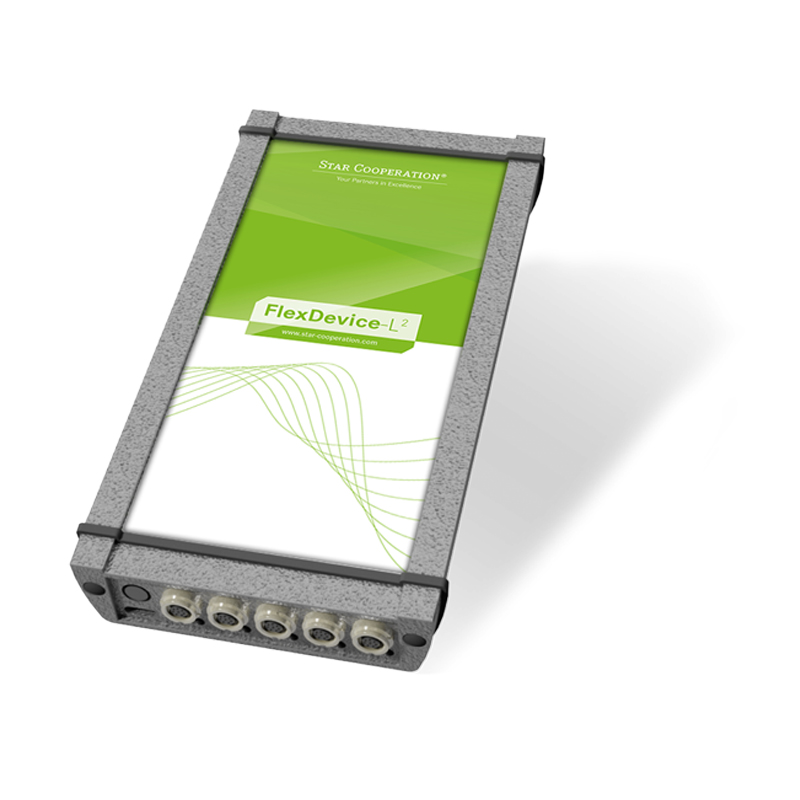

FlexDevice-L²

Part No.: MPSC-FlexDevice-L²
The multifunctional bus control unit FlexDevice-L² supports the current and upcoming bus systems and has numerous variable interfaces, thus covering most of the application fields where bus interfaces are required.

產品介紹

Description



Product Information

FlexDevice-L² is appreciated by embedded software developers since it facilitates the implementation and testing of even very tricky gateway applications and prototyping functionalities. The FlexDevice family provides manifold solutions for:

  • gateways between different automotive bus systems

  • bus interfaces

  • remaining bus simulation

  • signal manipulation

  • data logging

  • rapid prototyping

The multifunctional bus control unit FlexDevice-L2 supports the current and upcoming bus systems and has numerous variable interfaces, thus covering most of the application fields where bus interfaces are required. This device is appreciated by embedded software developers since it facilitates the implementation and testing of even very tricky gateway applications and prototyping functionalities.

Together with the comprehensive FlexConfig RBS software, the developers are enabled to set up and control their bus systems and ECU environment in a smart way.


Advantages

  • 2* ARM Cortex A9 dual core (800 MHz) with 2 GByte DDR RAM

  • 10 bus channels (via pluggable transceivers)

  • Up to 10 Ethernet channels

  • Up to 10 CAN channels

  • Up to 10 FlexRay channels (5 channel A and 5 channel B)

  • WiFi extension available

  • Wake-up/sleep mode support

  • Startup <200ms possible

  • IP 67

  • Temperature range - 40°C to + 85°C

Technical Details

  • 2*Altera Cyclone V SOC (integrated ARM Cortex A9 dual core CPU)

  • 2 GByte DDR RAM

  • 5 bus connectors with pluggable transceiver

  • 2 bus interfaces on each connector

  • Up to 8 FlexRay controllers (8 Bosch E-Ray cores)

  • Up to 10 FlexRay channels (5 channel A and 5 channel B) available on the connectors

  • In each case, 2 FlexRay cores can be connected internally (self-synchronization).

  • Up to 10 CAN-HS bus interfaces

  • Up to 10 CAN-FD bus interfaces

  • Wake-up/sleep support (wake-up possible via FlexRay or CAN)

  • Up to 10 100 Mbit/s Ethernet bus interfaces

  • Up to 10 BroadR-Reach bus interfaces

  • 1 Gbit/s Ethernet configuration interface

  • Integrated 1 Gbit/s Ethernet switch

  • Micro SD card slot

  • 4 digital inputs or outputs (DIO)

  • 5 analog or digital inputs (ADI)

Software Support

  • The device is supported by FlexConfig RBS starting with version 4.3.

​Hardware


Electrical Characteristics
Supply Voltage 8-42 VDC
Supply Current (Sleep Mode) <5 mA (@ 12 V)
Supply Current (Operation Mode) <600 mA (@ 12 V)

Environmental Conditions
Temperature  Operating/Storage: -40°C to +85°C
IP-Code IP67
Relative Humidity
Operating/Storage:
0 % to 90 % rH, condensing

Scope of Delivery

  • FlexDevice-L²

  • Documentation

Order Information FlexDevice-L²


Product Descroption
FlexDevice-L² The FlexDevice-L² is a multifunctional autonomous bus system platform.

Order Information Accessory Parts


Product Descroption
FlexConfig RBS
Runtime
Runtime license for RBS execution.
Required once per device.
FlexConfig Gateway
Runtime
Runtime license for gateway execution.
Required once per device. (Requires "FlexConfig RBS runtime")
FlexConfig Control
Runtime
Runtime license for signal manipulation.
Required once per device. (Requires "FlexConfig RBS runtime")
FlexConfig Analyzing
Runtime
Runtime license for analyzing bus data.
Required once per device.
FlexConfig Logging
Runtime
Runtime license for recording bus data.
Required once per device.
FlexTiny3
1000BASE-T1
Pluggable transceiver module with two 1000BASE-T1 transceivers
(88Q2112-A2-NYD2A000, Marvell)
FlexTiny3
100BASE-T1
Pluggable transceiver module with two 100BASE-T1 transceivers
(BCM89810A2AMLG, Broadcom)
FlexTiny3
100BASE-T1 switch
Pluggable transceiver module with one 100BASE-T1 switch
(BCM89500BQLEG, Broadcom)
FlexTiny3
1000BASE-TX switch
Pluggable transceiver module with one 1000BASE-TX switch
(88E6350RA1-TFJ2I000, Marvell)
FlexTiny3
FlexRay
Pluggable transceiver module with two FlexRay transceivers
(TJA1081BTS, NXP)
FlexTiny3
4x CAN-FD/HS
Pluggable transceiver module with four CAN-FD/HS transceivers
(MCP2562FD, Micrel)
FlexTiny3
2x CAN-FD/HS
Pluggable transceiver module with two CAN-FD/HS transceivers
(TJA1145T/ FD, NXP)
FlexTiny3
4x LIN & 2x SENT
Pluggable transceiver module with four LIN (TJA1021T, NXP) and
two SENT transceivers
FlexTiny3
K-Line & UART & SPI
 Pluggable transceiver module with one K-Line (TJA1021T, NXP),
one UART and one SPI transceivers
WIFI Extension WIFI Extension for standard IEEE 802.11b/g/n
Power cable (2 m) 2 pole Binder male to 2 banana male connector
Gbit Ethernet
bus cable (2 m)
 8 Pole Binder male to RJ-45 connector
Standard Binder
bus cable (2 m)
 8 pole Binder male to 9 pole D-Sub female connector
Standard Binder
2x Y-bus cable (2 m)
 8 pole Binder male to 2 x 9 pole D-Sub female connector
Standard Binder
4x Y-bus cable (2 m)
 8 pole Binder male to 4 x 9 pole D-Sub female connector
BASE-T1 Binder
bus cable (2 m)
 8 pole Binder male to 9 pole D-Sub female connector - PIN 1,2 & 4,5
BASE-T1 Binder
2x Y-bus cable (2 m)
 8 pole Binder male to 2 x 9 pole D-Sub female connector - PIN 4,5
IO (DIO/ADI)
cable (2 m)
 7 pole Binder male to 9 pole D-Sub female connector
