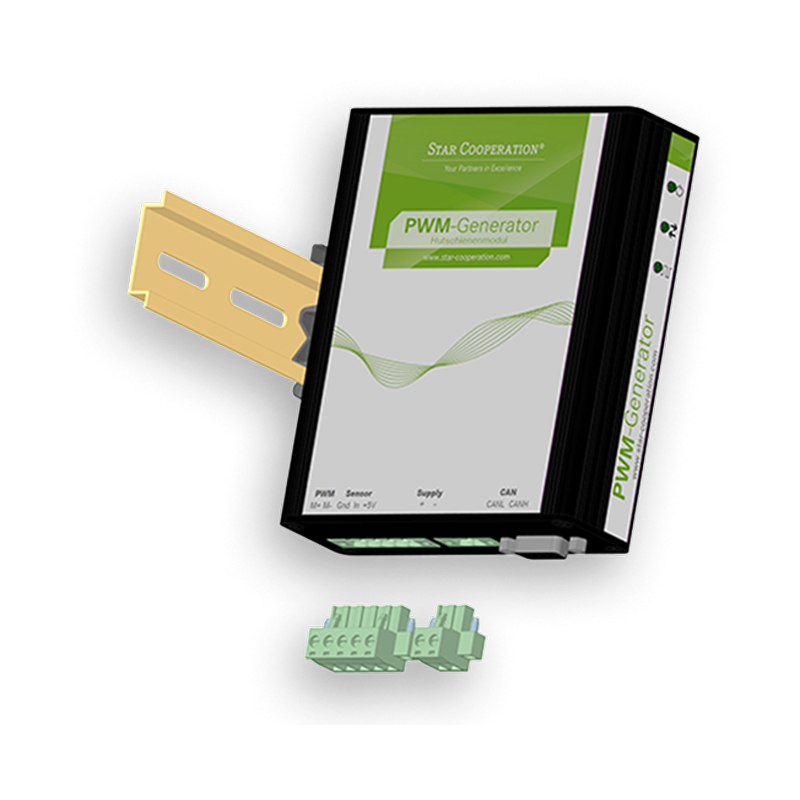

FlexGen-M PWM Remote
Part No.: MPSC-FlexGen-M-PWM-Remote
The FlexGen-M PWM remote can be used to generate variable PWM signals with output currents of up to 10 A.
產品介紹
Description
Product Information
The FlexGen-M PWM remote can be used to generate variable PWM signals with output currents of up to 10 A. The frequency, the pulse duty factor as well as the setting and control parameters can be determined via a CAN interface through an automation system. The current values can be read back through a sensor input and the integrated current measurement.
Advantages
-
Generation of power PWM signals up to 10 a with frequencies of 1 Hz to 10 kHz
-
Test bench connection via CAN interface
-
Easy and fast mounting in switchboard on cap rail
-
Control algorithm for acutators with analog position sensors (optional SENT according to SAE J2716)
Technical Details
PWM Generator for Cap Rail Mounting
| FLEXGEN-M PWM REMOTE | ||
|---|---|---|
| Voltage Supply | 9 V - 28 Vdc (wiring protected) | |
| Output Current | Max. 10 A | |
| Pulse Duty Factor/Resolution | 1 Hz – 10 kHz / 1 Hz | |
| Output Type Power Amplifier | H-full bridge, short-circuit proof | |
| Internal Transition Impedance | < 50 mΩ | |
| Edge Steepness | Typ. 10V/µs | |
| Current Measurement/Resolution | 0 A – 10 A / 0,1 A | |
| Sensor Interface | 5V supply voltage 0V - 5V analog input (SENT on demand) | |
| Controller | function to learn and P-I-D controller configurable | |
| Communications Interface | CAN bus (ISO 11898-2 A and B) | |
| Dimensions (LxWxH) | 124 x 105 x 34 mm | |
| Ambient Temperature/Type of Safety | -40°C to 80°C / IP 21 | |
